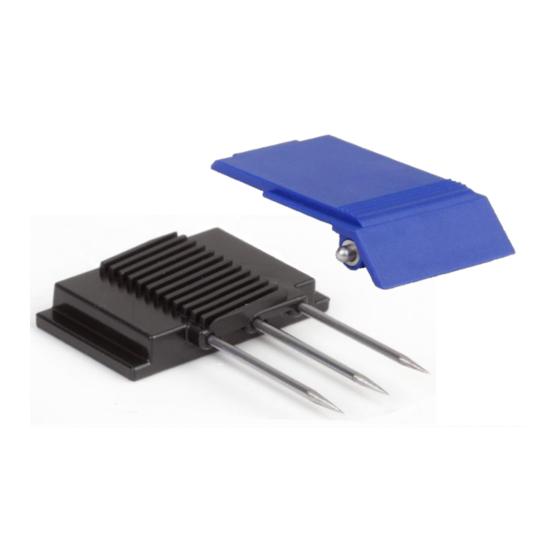

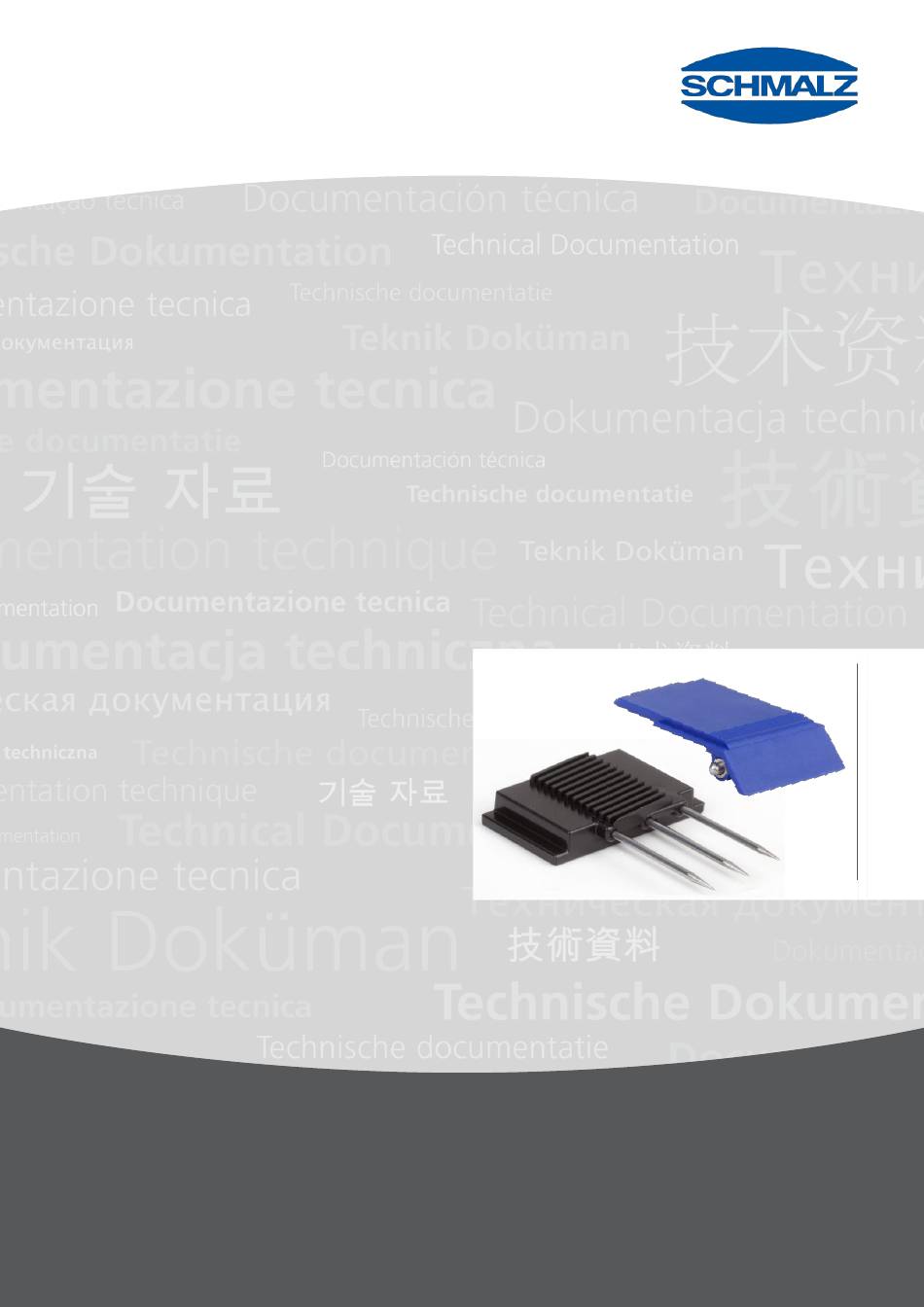

- Page 1 Innovative Vacuum for Automation Maintenance Instructions Needle gripper SNG-AP / SNGi-AE 30.30.01.00582/01 | 05.2016 1 | EN www.schmalz.com 30.30.01.00582/01...
- Page 2 Publisher © J. Schmalz GmbH, 05.2016 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any modifications to or abridgments of the document are prohibited without explicit written agreement from J.
- Page 3 SNG-AP / SNGI-AE General Safety Instructions WARNING Ignoring the maintenance instructions Personal injuries / damage to plants / systems ► Before performing maintenance on the gripper, the maintenance instructions must have been read and understood. This also applies to gripper-specific operating instructions.
- Page 4 SNG-AP / SNGI-AE CAUTION Air flow due to blowing out with compressed air Damage to the eyes ► Do not look into the exhaust air flow ► Wear protective glasses CAUTION Emission of respirable particles Damage to lungs and respiratory tract ►...
- Page 5 SNG-AP / SNGI-AE Unlocking and removing the cover Press the bolts of the spring-loaded pressure piece out of the holes with a sharp object (e.g. a pen, screwdriver). The cover must be pushed out of the housing at the same time as the spring-loaded bolt is actuated.
- Page 6 SNG-AP / SNGI-AE Inserting the needle holder Insertion of the needle holder occurs in the same way as removal but in the reverse order. Hold the opposite needle holder securely when inserting the needle holder. This allows the position "needle retracted" to be secured.
- Page 7 Spare and Wearing Parts Type Designation Content Part no. Legend SNG-AP 10 0.8 V 3 2 Mounting adapters needle 10.01.29.00405 Spare parts set SNG-AP 10 1.2 V 3 Spare parts set 2 Mounting adapters needle 10.01.29.00406 SNG-AP 10 0.8 V 10 2 Mounting adapters needle 10.01.29.00407...
