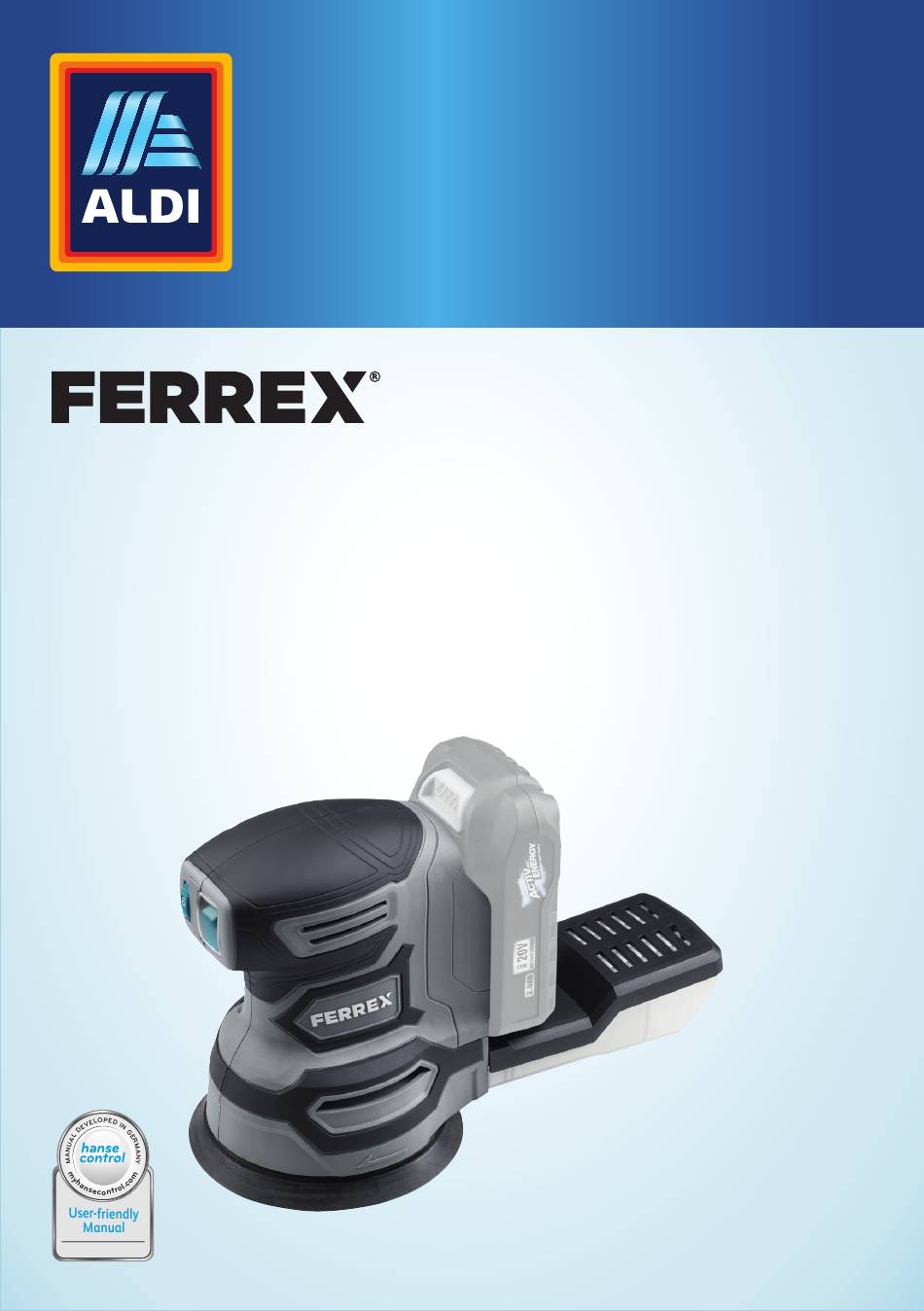

- Page 1 User manual 20 V LI-ION CORDLESS ROTARY SANDER FAES 20-I Original instructions ID: #05007...
-
Page 3: Contents
Contents Contents Rotary sander Dust container Vacuum adapter... -
Page 4: Table Of Contents
Table of contents Table of contents Contents ......................3 General information ..................5 Reading and storing the user manual ..............5 Proper use ........................5 Residual risks ......................6 Explanation of symbols .................. 6 Safety ....................... 7 Explanation of notes ....................7 General power tool safety instructions ..............7 Supplementary safety instructions .............. -
Page 5: General Information
Reading and storing the user manual This user manual accompanies this 20 V Li-Ion cordless rotary sander FAES 20-I (referred to below only as the “product”). It contains important information on safety, usage and care. Before using the product, read the user manual carefully. Pay particular attention to the safety notes and warnings. -
Page 6: Residual Risks
Explanation of symbols Residual risks Despite proper use, inconspicuous residual risks cannot be completely ruled out. The following risks may arise due to the design of the product: • Touching the running sanding sheet (abrasion injury); • Kickback of the workpiece and parts of the workpiece if used improperly; •... -
Page 7: Safety
Safety Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoid- ed, could result in death or serious injury. WARNING! Designates a dangerous situation that may result in minor or moderate injury if not avoided. - Page 8 Safety b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water enter- ing a power tool will increase the risk of electric shock.
- Page 9 Safety f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If there is an option for installing dust suction devices and dust containers, these should be attached and used correctly.
- Page 10 Safety g) Use the power tool, accessories and fitted tools etc. in accordance with these instructions, taking into account the working con- ditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
-
Page 11: Supplementary Safety Instructions
Safety Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never perform maintenance on damaged rechargeable batteries. Only the manufacturer or authorised service companies may perform maintenance on rechargeable batteries. - Page 12 Safety − Always switch on the product before guiding it towards the workpiece. − Avoid skin contact with the rotating sanding sheet. Protective gloves give the best protection. − Do not apply excessive pressure to the product, as this may cause the sanding sheet to stop rotating.
- Page 13 Safety − Stop using the rechargeable batteries if they are damaged. − Rechargeable batteries must not be reactivated by any other means. − Metallic lithium can lead to fire when it comes into contact with water. Do not allow the contents of lithium batteries to come into contact with water. −...
- Page 14 Safety CAUTION! Hearing damage! You may damage your hearing if you use the product over a longer period of time. − Wear ear protection. CAUTION! Danger to health! You may damage your health if you use the product over a longer period of time due to the hand-arm vibration.
-
Page 15: Product Description
Product description Product description The product is a handheld rotary sander for polishing and sanding wood, metal and mineral materials. For this purpose, the sanding disc oscillates with a circular motion while simultaneously rotating around its own axis. The sanding sheet appropriate for the respective work and material is attached to the sanding disc using a hook-and-loop fastener system. -
Page 16: First Use
First use First use Checking the product and package contents 1. Lift the product out of the packaging with both hands. 2. Place the product on a level, stable base, such as a workbench. 3. Check whether the product or the individual parts are damaged. If this is the case, do not use the product. -
Page 17: Using A Vacuum Adapter
Using a vacuum adapter Attaching/detaching vacuum adapter − To attach the vacuum adapter , slide it over the connecting nozzle (see Fig. 2). − To remove the vacuum adapter, pull it off the connecting nozzle. Attaching/detaching an external dust extraction device −... -
Page 18: Extracting The Battery
NOTICE! Risk of damage! Using the wrong batteries, handling them incorrectly, or inserting a battery incorrectly may damage the product. − Use only the supplied rechargeable battery or batteries of identical design that have been approved by the manufacturer. 1. Place the rechargeable battery on the upper edge of the battery holder push it along the guide into the battery... -
Page 19: Attaching/Replacing Sanding Sheet
Attaching/replacing sanding sheet WARNING! Risk of injury! Improper handling of the product can lead to injury. − When attaching/replacing the sanding sheet, always switch the product off and remove the rechargeable battery. − Use only sanding sheets with a hook-and-loop fastener and a diameter of 125 mm. -
Page 20: Setting The Speed
Setting the speed The speed regulator allows you to adjust the rotational speed of the sanding disc to adapt it to the respective workpiece and the desired sanding result. The setting range is from 6,000–12,000 rpm. − To set the desired speed, turn the speed regulator to the corre- sponding position (see Fig. -
Page 21: Sanding And Polishing
Sanding and polishing WARNING! Risk of injury! Improper handling of the product can lead to injury. − Use clamping devices to secure the workpiece against slipping. − When working with it, always grip the product with both hands and assume a stable posture. −... - Page 22 Sanding 1. Attach a sanding sheet to the sanding disc as described in the chapter “Attaching/replacing sanding sheet”. Make sure that the sanding sheet is suitable for the respective workpiece. 2. Insert a rechargeable battery as described in the chapter “Inserting the battery”. 3.
- Page 23 Polishing The product can also be used for polishing smooth surfaces. To do this, in place of a sanding sheet, use a polishing sponge or a polishing pad with a hook-and-loop fastening for sanding discs with a diameter of 125 mm. 1.
-
Page 24: Faults And Troubleshooting
Faults and troubleshooting Faults and troubleshooting Problem Possible causes Solution The product will Insert a charged battery. The rechargeable battery not start. has been drained. The battery is not correctly Insert the battery correctly into inserted in the battery the battery holder. holder Too much pressure is be- Reduce the pressure on the... -
Page 25: Cleaning
Cleaning and maintenance WARNING! Risk of injury! Improper handling may result in severe injury. − Wear suitable protective gloves. NOTICE! Risk of damage! Water or other liquids that have penetrated the housing may cause a short circuit. − Never submerge the product in water or other liquids. −... -
Page 26: Maintenance And Care
− Secure the product to prevent it from slipping when transporting it in a vehicle. − If possible, use the original packaging for transport. Technical data Product code: 819084 Model: FAES 20-I/WU5455703/WU5455704 Supply voltage: 20 V Idle speed: 6,000–12,000 rpm Sanding disc diameter:... -
Page 27: Battery And Charger Information
Noise/vibration information Battery and charger information Use the product only in combination with Activ Energy® batteries and chargers with the following model designations: Suitable for Activ Energy® Rechargeable battery models: AEB 20-2.0/2, AEB 2040-2.5/2, XYZ561a, XYZ562a Charger model: AEC 20-4.0/2a, XYZ563a Please note the model designations of batteries and chargers. - Page 28 Noise/vibration information You must also observe any divergences in national regulations with respect to the permissible workplace levels. The aforementioned information does, however, allow the user to better assess dangers and risks. • Vibration level a 8.0 m/s² • Uncertainty K: 1.5 m/s²...
-
Page 29: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with wastepaper and plastics with recyclable waste. Recycle Disposing of the product Old devices must not be disposed of with household waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment... -
Page 30: Declaration Of Conformity
EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS ROTARY SANDER that the product listed below … FAES 20-I WU5455703/ WU5455704 • 819084 • 10/2022 … meets all of the requirements of the 2011/65/EU (RoHS) listed directives. - Page 31 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE Visit us at www.aldi.com AFTER SALES SUPPORT 819084 00800 34 99 67 53 meister-service@conmetallmeister.de YEAR MODEL: WARRANTY FAES 20-I/WU5455703/WU5455704 10/2022...
