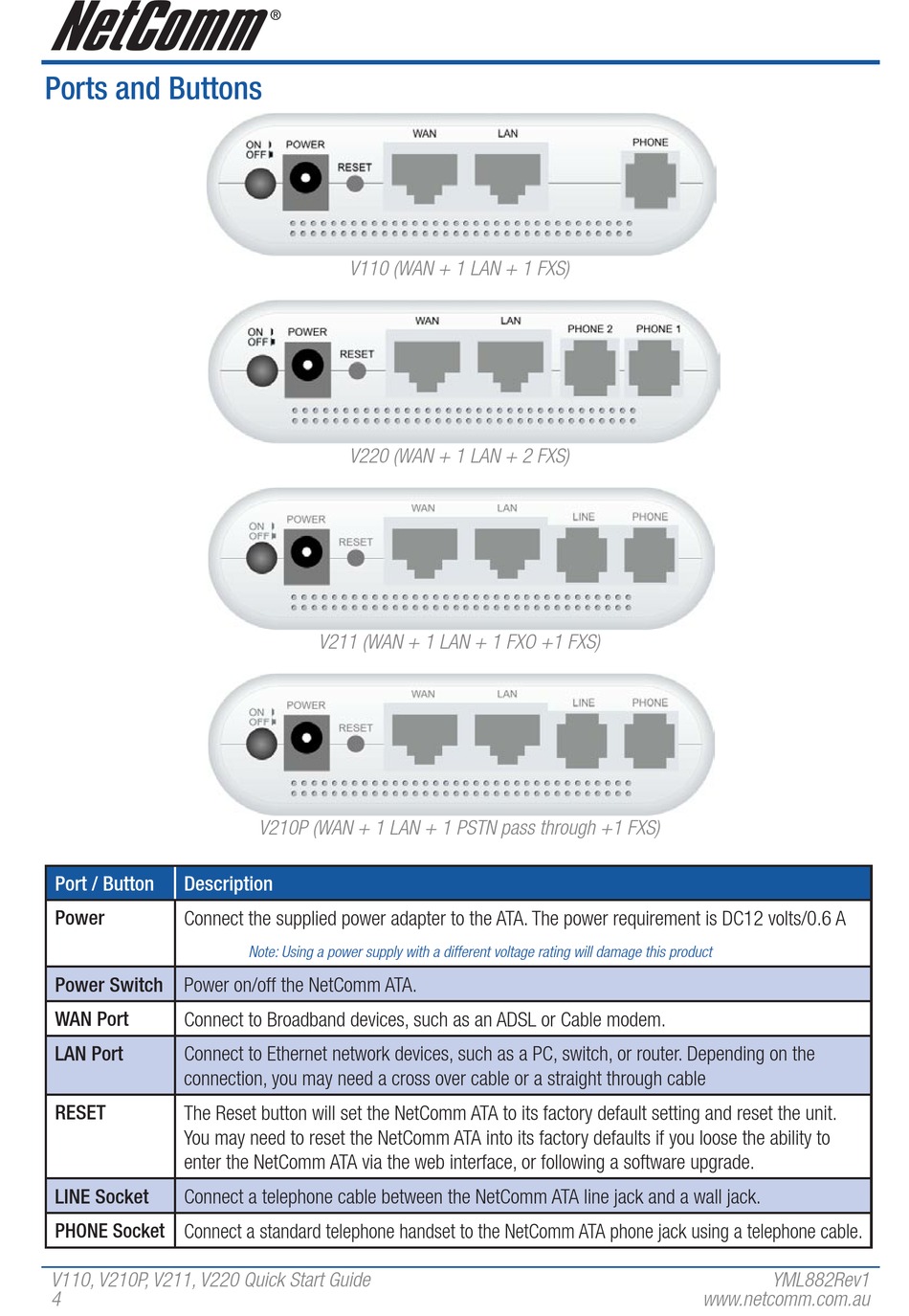

Ports and Buttons

Port / Button description
Power
Connect the supplied power adapter to the ATA. The power requirement is DC12 volts/0.6 A
Power Switch Power on/off the NetComm ATA.
WAN Port
Connect to Broadband devices, such as an ADSL or Cable modem.
lAN Port
Connect to Ethernet network devices, such as a PC, switch, or router. Depending on the
connection, you may need a cross over cable or a straight through cable
rESEt
The Reset button will set the NetComm ATA to its factory default setting and reset the unit.
You may need to reset the NetComm ATA into its factory defaults if you loose the ability to
enter the NetComm ATA via the web interface, or following a software upgrade.
lINE Socket
Connect a telephone cable between the NetComm ATA line jack and a wall jack.
PHONE Socket Connect a standard telephone handset to the NetComm ATA phone jack using a telephone cable.
�11��� �21���� �211�� �22� Quick Start Guide

�11� (WAN + 1 LAN + 1 FXS)
�22� (WAN + 1 LAN + 2 FXS)
�211 (WAN + 1 LAN + 1 FXO +1 FXS)
�21�� (WAN + 1 LAN + 1 �STN pass through +1 FXS)
Note: Using a power supply with a different voltage rating will damage this product
