- Page 1 GHDFF60AL 60cm 4x Burner Gas Hob Barcode 8422248600415...
- Page 2 [02] x 1 [03] x 2 [04] x 1 [01] x 1 [08] x 4 [05] x 1 [09] x 1 [10] x 4 [06] x 1 [11] x 1 [07] x 4...
- Page 3 GHD60SS Built-in Gas Hob Table de cuisson gaz encastrable Installation Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 5: Getting Started
Before you start Safety... - Page 6 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
- Page 7 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 8 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 9: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 10: Product Functions

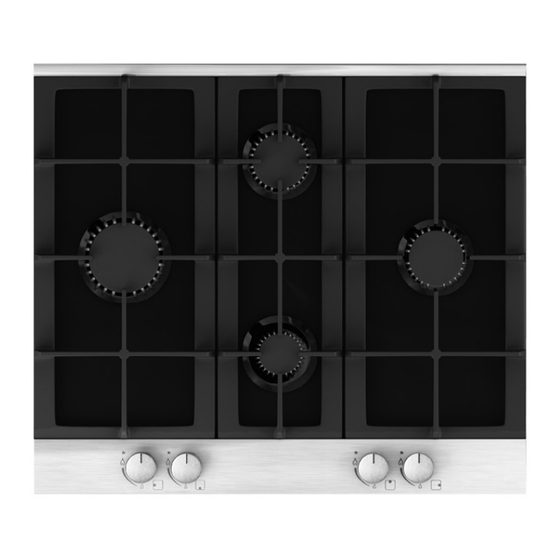

Operation Product functions • 4 x Burners: Four zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the flame goes out. • Auto - ignition • LPG conversion kit supplied. Control elements Reference Description Reference... - Page 11 Operation Operation Use of the burners Caution • If there is no electric current you can light the burners with piezo electric spark gas ignitor. • The burners can only be lit with safety thermocouples when the knob is on MAXIMUM. On the control panel (fig.
- Page 12 Operation NOTE: > The use of a gas cooking appliance produces heat and humidity in the place where it is installed. > Therefore, you need to ensure the place is well ventilated, keeping the natural ventilation openings clear and using a mechanical ventilation device/ flue or electric fan.
-
Page 13: Care And Maintenance
Care and maintenance Appliance cleanliness Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution • Use soapy water and a cloth for cleaning. Never use abrasive powders. •... - Page 14 Care and maintenance Replacement of parts Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services.
-
Page 15: Troubleshooting
Troubleshooting Troubleshooting The following circumstances may not be a problem. Do not contact the customer services until the problem has been confirmed. If your appliance is still not functioning properly after making the above checks, please contact customer services. 1. Check that the mains supply has not been switched off. 2. -
Page 16: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 17 Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED.
- Page 18 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
- Page 19 Technical and legal information Installation Guidelines Gas Supply Requirements (UK and ROI) This installation must comply with the Gas Safety Regulations 1984. The connection to the gas supply must comply with all current regulations in force. We are not legally able to offer advice on the installation of gas appliances to non Gas Safe registered personnel.
- Page 20 Technical and legal information Gas connection [09] [09] x1 Changing the nozzles Caution The hob installation and burner changes must be carried out by a competent person. ie a Gas Safe registered fitter. NOTE: The LPG nozzles are provided in a separate bag marked “LPG” and if they are changed and the natural gas jets retained then the label should be changed to “NATURAL”.
- Page 21 Technical and legal information Regulation of burners Caution The regulation described can only be carried out with burners that use methane gas and city gas (where available), whereas the screw must be fully tightened in a clockwise direction on burners using liquid gas. Regulation of the “MINIMUM”...
-
Page 22: Guarantee
Guarantee Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 23 Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT.
-
Page 24: Ce Declaration Of Conformity
CE Declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We herebyce rtify that them entioned accessoryc ompliesw itht he essentialr equirements of theE uropeanD irectives applicable,i ncluding theirm odificationsan dt heco rresponding transpositions from the national law. -
Page 25: Appendix
Appendix... Installation... - Page 26 Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least...
- Page 27 Installation [11] x 1 Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant. [06] x 1 [06] Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.
- Page 28 Installation 30mm 40mm [07] x 4 [10] [07] [10] [07] [10] x 4 Note: For electrical connection see Technical and legal information section...
