Summary of Contents for PNI SafeHome PTY500BL

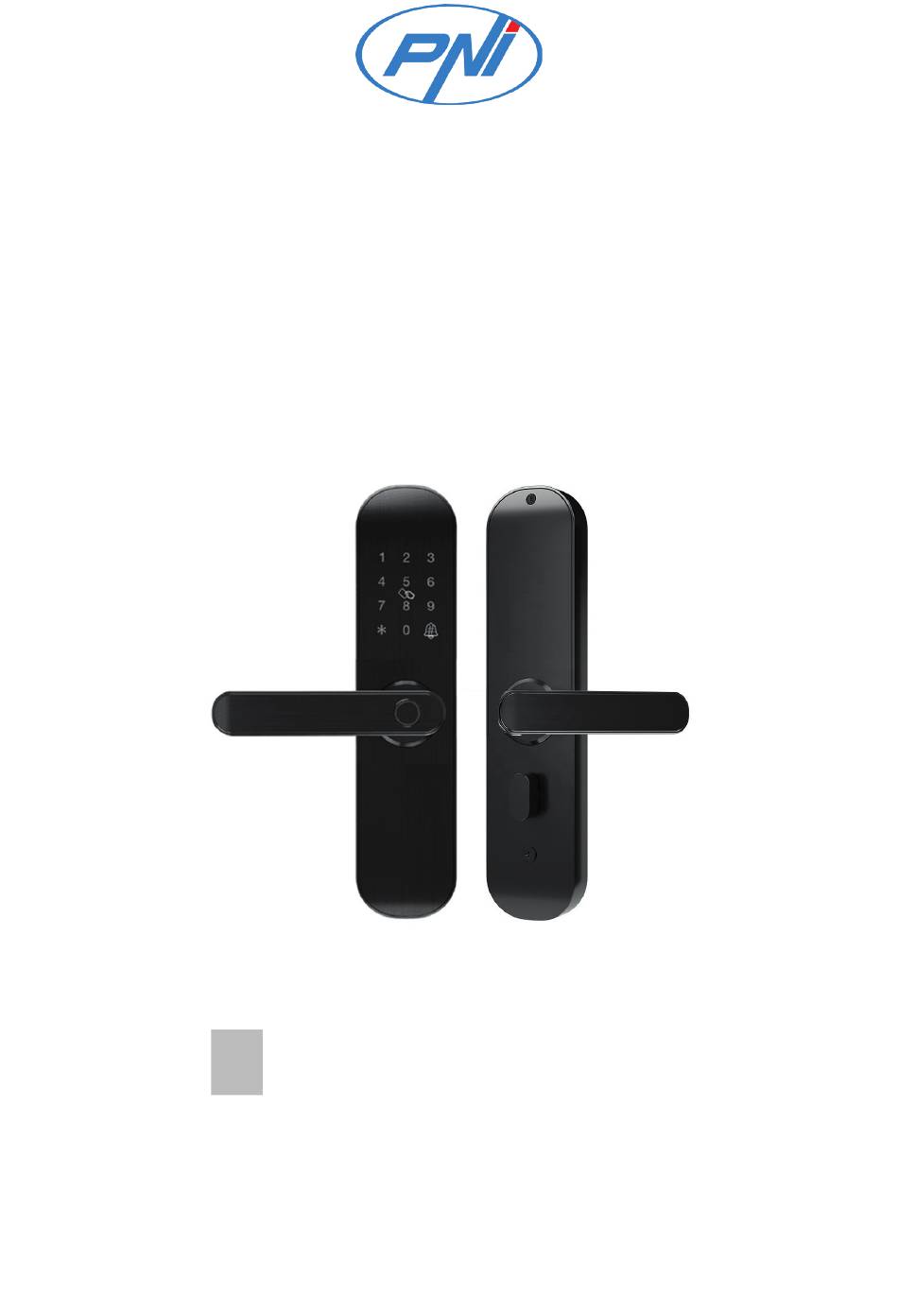

- Page 1 PNI SafeHome PTY500BL PNI SafeHome PTY500BR Smart lock / Yala inteligenta User manual ..........Manual de utilizare ........
-
Page 3: Information And Warnings
Information and warnings • Prepare a Phillips screwdriver and 4 AA batteries before installing the lock. • Before installing the lock, make sure you have clean hands so as not to stain its surface. Do not use detergents, alcohol or corrosive substances to clean the surface of the lock. - Page 4 Description of lock components 1. Front panel 2. Connection column 3. Square steel 4. Lock body 5. Connection Line 6. Back panel 7. SET button (add administrators / users, pairing, reset) 8. Connection column screws 9. Battery cover 10. Battery cover screw 11.
- Page 5 17. Connection column 18. Key hole 19. Micro USB port (emergency power port) 20. Front handle Included accessories Connection column Square steel Connection column screws (8 cm, 10 cm, 12 cm) (3.5 cm, 5.5 cm) (3 cm, 5 cm, 7 cm, 9 cm) Dimensions 137 mm 45 mm...
- Page 6 Door opening direction Indoor Indoor Left hand door Right hand door Outdoor Outdoor Indoor Indoor Outdoor Outdoor WARNINGS: • We recommend that you contact qualified personnel to install the lock. • Read all instructions carefully before installing the lock. • Be careful not to press or bend the connection cables during installation.
-
Page 7: Installation Instructions
Installation instructions 1. Use the model included in the package to mark and make the holes needed to mount the lock. 2. Install the lock body first. Secure it with the included screws. Note: the package includes several mounting accessories that must be chosen depending on the thickness of the door on which the lock is installed. - Page 8 • Insert the square steel into the Door hole on the back of the outer body of the lock. • Pass the connection cables through the hole previously made in the door. • Pass the square steel through the door and through the lock. •...
-
Page 9: Usage Instructions
4. Install the buckle plate and buckle box Screw Door frame Screw Buckle box Usage instructions Add Administrator: 1. Remove the cover from the battery compartment. 2. Briefly press the SET button or long press the * key on the keyboard. You will hear the message “Please add administrator“. - Page 10 more administrators. Notes: Press * key: for back and log out Press # key: for confirmation Add User: 1. Remove the cover from the battery compartment. 2. Briefly press the SET button or long press the * key on the keyboard. You will hear the message “Please verify the administrator”.
- Page 11 ADDITIONAL FUNCTIONS Lock in case of wrong password: If the password was entered incorrectly 5 times in a row, the system will lock for 180 seconds. You can unlock the system by scanning your fingerprint or the card you registered with. Low voltage warning: If the battery voltage drops below 4.8V, you will hear the message “The battery is used up, please replace battery“.
- Page 12 Tuya Smart APP Download the Tuya Smart app by accessing Google Play or the App Store or scan the QR codes below: Android Add the lock in the Tuya Smart application 1. Open the application, create an account and log in. 2.
- Page 13 8. To put the lock in pairing mode follow the steps below: • Briefly press the Reset key below the battery area (batteries not included): • Or long press * on the numeric panel of the outer yale. • You will hear the message Please add administrator. •...
- Page 14 User manual...
- Page 15 Device control in the application From the application you can generate temporary passwords or dynamic passwords with unique use and limited validity (maximum 5 minutes), you can manage users or you can see the history of alarms and actions to unlock / lock the lock.
- Page 16 User manual...
-
Page 17: Caracteristici Principale
Informatii si atentionari • Pregatiti o surubelnita in cruce si 4 baterii AA inainte de instalarea yalei. • Inainte de a instala yala, asigurati-va ca aveti mainile curate, pentru a nu pata suprafata acesteia. Pentru a curata suprafata yalei, nu folositi detergenti, alcool sau substante corozive. - Page 18 Descriere componente yala 1. Corpul yalei din exteriorul usii 2. Element de fixare corp yala 3. Bara de otel cu profil patrat 4. Broasca (trebuie montata in usa) 5. Cabluri de conexiune 6. Corpul yalei din interiorul usii 7. Buton SET (adaugare administratori/useri, imperechere, resetare) 8.
- Page 19 17. Element de fixare corp yala 18. Gaura pentru cheie 19. Port micro USB pentru alimentare de urgenta 20. Maner exterior Accesorii incluse Bara de otel cu profil Element de fixare Suruburi pentru fixare patrat corp yala corp yala (8 cm, 10 cm, 12 cm) (3.5 cm, 5.5 cm) (3 cm, 5 cm, 7 cm, 9 cm) Dimensiuni yala...
- Page 20 Directia de deschidere a usii Interior Interior Usa de stanga Usa de dreapta Exterior Exterior Interior Interior Exterior Exterior ATENTIONARI: • Va recomandam sa apelati la personal calificat pentru instalarea yalei. • Cititi cu atentie toate instructiunile inainte de a instala yala. •...
-
Page 21: Instructiuni De Instalare
Instructiuni de instalare 1. Folositi macheta inclusa in pachet pentru a marca si a face gaurile necesare montarii yalei. 2. Instalati mai intai broasca. Fixati-o cu suruburile incluse. Nota: in pachet sunt incluse mai multe accesorii de montaj care trebuie alese in functie de grosimea usii pe care se instaleaza yala. - Page 22 • Introduceti bara profil patrat in orificiul de pe spatele corpului exterior al yalei. • Treceti cablurile de conexiune prin gaura facuta anterior in usa. • Treceti bara cu profil patrat prin usa si prin broasca. • Impingeti corpul yalei pana se apropie de usa.
-
Page 23: Instructiuni De Utilizare
4. Instalati contraplaca Surub Tocul usii Surub Cutie contraplaca Instructiuni de utilizare Adaugati Administrator: 1. Indepartati capacul de pe compartimentul pentru baterii. 2. Apasati scurt butonul SET sau apasati lung tasta * de pe tastatura. Veti auzi mesajul “Please add administrator“. 3. - Page 24 Nota: Apasati asta *: pentru inapoi si deconectare Apasati tasta #: pentru confirmare Adaugati Utilizator: 1. Indepartati capacul de pe compartimentul pentru baterii. 2. Apasati scurt butonul SET sau apasati lung tasta * de pe tastatura. Veti auzi mesajul “Please verify the administrator“. 3.
- Page 25 FUNCTII SUPLIMENTARE Blocare in caz de parola gresita: Daca parola a fost introdusa gresit de 5 ori la rand, sistemul se va bloca timp de 180 secunde. Puteti debloca sistemul daca va scanati amprenta sau cardul cu care v-ati inregistrat. Avertizare tensiune scazuta: Daca tensiunea bateriilor scade sub 4.8V, veti auzi mesajul “The battery is used up, please replace battery“.
- Page 26 Aplicatia Tuya Smart Descarcati aplicatia Tuya Smart accesand Google Play sau App Store sau scanati codurile QR de mai jos: Android Adaugare yala in aplicatia Tuya Smart 1. Deschideti aplicatia, creati-va cont si autentificati-va. 2. Adaugati dispozitivul dvs. apasand pictograma + din coltul dreapta sus al ecranului sau apasand butonul Add device (acest buton apare atunci cand nu aveti nici un dispozitiv adaugat in aplicatie).
- Page 27 8. Pentru a pune yala in modul de imperechere urmati pasii de mai jos: • Apasati scurt tasta Reset de sub zona bateriilor (bateriile nu sunt incluse): • Sau apasati lung tasta * de pe panoul numeric al yalei exterioare. •...
- Page 28 Manual de utilizare...
- Page 29 Control dispozitiv din aplicatie Din aplicatie puteti genera parole temporare sau parole dinamice cu utilizare unica si valabilitate limitata (maxim 5 minute), puteti administra utilizatorii sau puteti vedea istoricul alarmelor si al actiunilor de deblocare/ blocare a yalei. Puteti deschide yala de la distanta si apasand mai intai pe tastatura yalei tasta 4 + tasta #, apoi, in aplicatie faceti click pe Click open remotely.
- Page 30 Manual de utilizare...
- Page 31 EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Smart door lock PNI SafeHome PTY500BL/PTY500BR complies with the Directive EMC 2014/30/EU and RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/7269/download/certifications...
