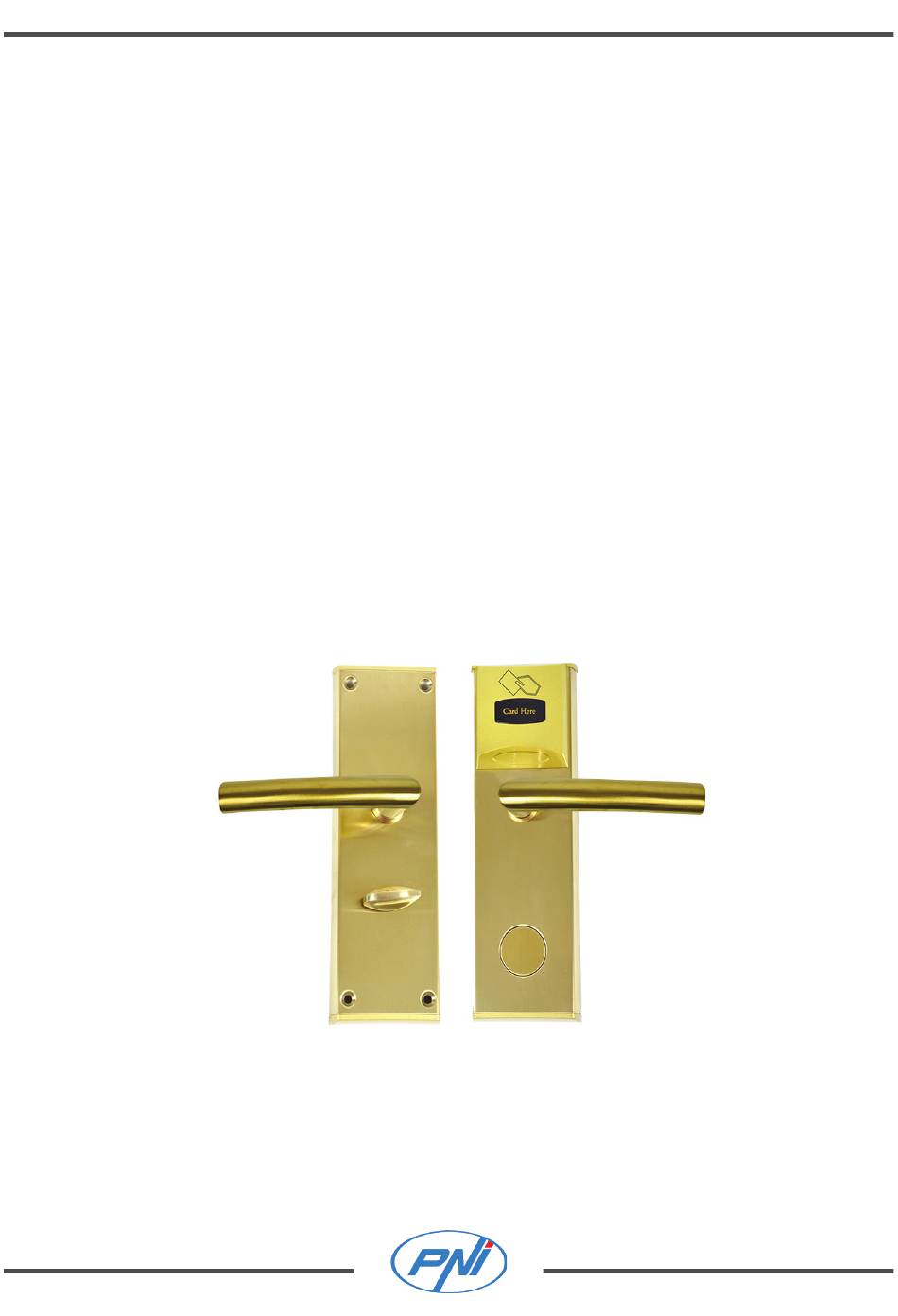

- Page 1 PNI CH2000R / CH2000L Gold HOTEL DOOR LOCK / YALA CONTROL ACCES HOTELIER Manual de utilizare ... pagina 2 User manual ... page 9...
-
Page 2: Caracteristici Principale
CARACTERISTICI PRINCIPALE: • Yala PNI CH2000 este usor de folosit si configurat cu ajutorul unui PC cu sistem de operare Windows si port USB. • Pentru a evita erorile, ora yalei trebuie sincronizata cu ora computerului • Yala are o serie de functii cum ar fi: alarma, atentionare pentru inchidere usa, functia „nu-deranjati”... - Page 3 Programator de card Yala DESCRIERE COMPONENTE YALA: Motor Bolt zavor yala Conectati la baterii Conectati la placa de baza Instalare maner Verso Bolt auxiliar Control din interior bolt mecanic Instalare cilindru Deadbolt Baterii Senzor Buton deschidere manuala Capac cilindru Panou spate Panou frontal Fata (in afara camerei)
- Page 4 INSTALARE YALA: 1. Cilindru INTERIOR CAMERA 2. Cititor placa de baza Conector placa de baza Panou frontal 5. Ax maner EXTERIOR CAMERA 6. Usa 7. Yala incastrata Conector yala incastrata Alimentare 10. Panou spate Baterii Conector baterii 13. Ax maner Opritor toc Cutie opritor Capac cilindru...
- Page 5 2. Instalare yala Introduceti yala in locasul din cantul usii, perpendicular pe acesta, si marcati cu un creion limitele exterioare ale acesteia. Scoateti yala si scobiti usor (cu atentie pentru a nu deteriora excesiv usa) cu o dalta, pana obtineti un locas ce permite ingroparea placii pana la nivelul cantului.
- Page 6 4. Instalare parte interna si externa a corpului yalei: Extrageti cele 2 cabluri din interiorul usii si conectati cele 2 fete cu ajutorul conectorilor dedicati. Asigurati-va ca sunt conectate corect. Instalati bolturile dreptunghiulare aferente manerelor si butonului interior de blocare. Asigurati-va la montarea fetei exterioare ca cele 2 sageti de pe yala si de pe conectorul rotativ de pe yala sunt aliniate.
- Page 7 Testare cilindru si alimentare Introduceti cheia de urgenta in yala si rotiti pentru a retrage boltul autoblocabil. Daca yala arata un led albastru intermitend si un beep, inseamna ca cilindrul si alimentarea functioneaza corect. Testare cilindrul si alimentarea Testare buton blocare interior Verificati daca butonul de blocare din interior actioneaza boltul mecanic dreptunghiular de pe yala si daca manerul interior al yalei deblocheaza acest bolt.
- Page 8 • Surubelnita cu cap cruce obisnuita • Set de freze de lemn (30 mm) + Masina de gaurit • Ventuza pentru capacul cilindrului (cheie deschidere de urgenta) INSTRUCTIUNI DE UTILIZARE A YALEI. OPERATIUNI DE BAZA: Ledul albastru clipeste 1.Pozitionati un card MF1 2.Indepartati cardul si in fata senzorului apasati manerul in jos...
- Page 9 Hotel door lock system PNI CH2000R / CH2000L Gold right handle / left handle USER MANUAL...
-
Page 10: Technical Specifications
MAIN FETURES: • PNI CH2000 is easy to use and configure with a Windows PC and USB port. • To avoid errors, lock time must be synchronized with PC’s time • Main functions: alarm, close door prompt, Do not disturb etc. -
Page 11: Card Reader
Card reader Lock MORTISE AND PANEL: Motor Latch bolt Connect to battery pack Connect to PCB board Handle install BACK SIDE Auxiliary bolt Deadbolt control install Cylinder install Deadbolt Battery-pack Sensor window Thumb turn Cylinder cover back panel front panel FRONT SIDE (ROOM OUTSIDE) ANSI Mortise model K2S... - Page 12 LOCK INSTALL: ROOM INSIDE 1. Cylinder 2. Pcb reader Connector of pcb reader ROOM OUTSIDE Front panel 5. Spindle of handle 6. Door 7. Mortise Connector of mortise Power connector 10. Back panel Battery-pack Power connector of battery-pack 13. Spindle of handle Strike Strike box Cylinder cover...
-
Page 13: Install The Mortise
2. Install the mortise Put the mortise into the hole and holding it square to the door edge, draw around the faceplate. Remove the mortise and score the outline with a stanley knife to avoiding splitting when chiseling. Chisel a rebate to allow the latch to fit flush to the surface.Fix the mortise with the screws, with the bevel towards the door frame. - Page 14 4. Install front and back body: First export the cable from the hole,put the axis,connect the lock front and back panel with link cable through the hole, ensure plug correctly connect with the back boby slot,then connect inside and outside with square shaft,ensure the lock plate and the mortise connection are reliable,finally screw the lock plate in the door.
- Page 15 Testare cilindrul si alimentarea Test thumb turn Check the operation of the deadbolt knob. If there is any binding of the handles or the latch then loosen the bolts. Testare Buton blocare interior WARNING For the safety,it is suggested strongly that you check the operation of the emergency key and back lever handle under the door in opening status.
-
Page 16: Card Programming
This tool is used to remove the cylinder cover. BASIC OPERATION: blue light ash Place a M1 card near to Remove card and shake the the sensor window handle. Card programming: Open lock with chip upturned blue light ash continuous Insert IC card with 2.Pull out of card, the blue light keep on. - Page 17 EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Hotel door lock PNI CH2000L Gold/ PNI CH2000R Gold complies with the Directive EMC 2014/30/EU and ROHS 2011/65/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/4516/download/certifications...
