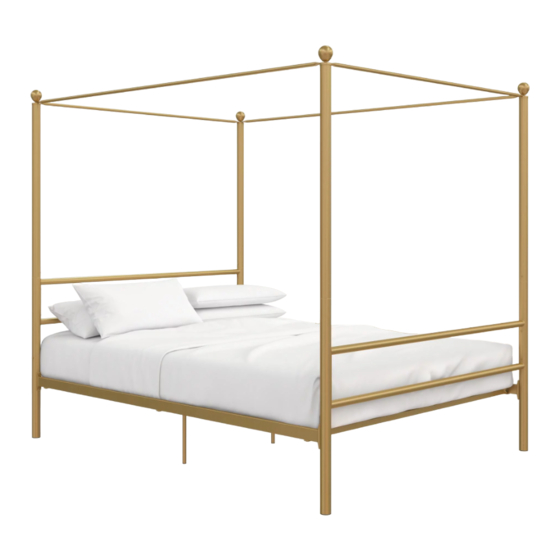

Canopy metal bed
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

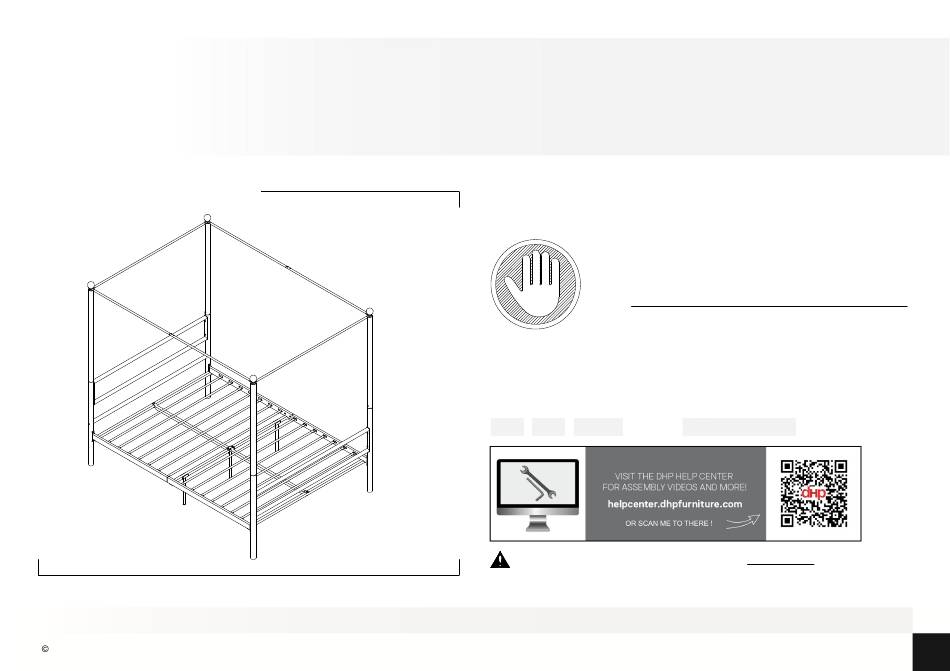

Weight Limit: 450 Lb / 204 Kg
J.Z. - 2018/7/20
2014 Dorel Home Products All Rights Reserved
Canopy Metal Bed
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4120229WE
Lot Number
B344120229WE00 - 10125-M
Full
Gold
1
