DHP 4172649N Instruction Booklet

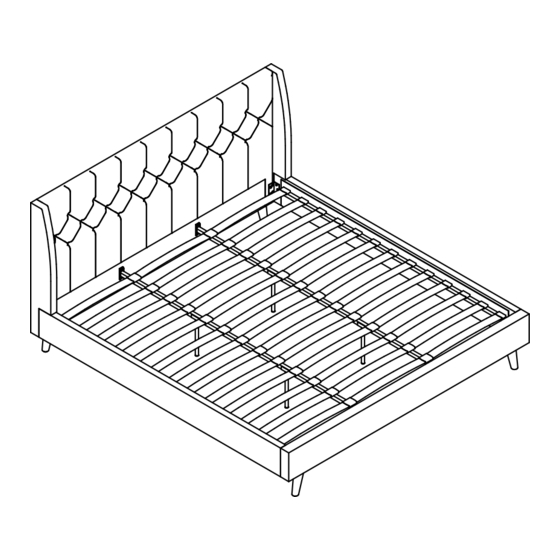

Upholstered bed
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
TM
Weight Limit: 500 Lb / 227 Kg
K.T. - 2017/12/8
© 2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4172649N
Upholstered Bed
Blue linen
Lot Number
B344172649N00 - 10125-M
King
1

Advertisement

loading

Related Manuals for DHP 4172649N

Summary of Contents for DHP 4172649N

  • Page 1 Upholstered Bed King Blue linen Weight Limit: 500 Lb / 227 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
  • Page 2 ● Call our toll free number if you need assistance. DHP warrants this product to be free from defects in material and workmanship and ● Work in a spacious area and near where the unit will be used, preferably on a agrees to remedy any such defect.
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home This item is packed in 2 boxes! All parts listed on this page are in Box A. If Box B is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Headboard Support Leg Bracket...
  • Page 5 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home This item is packed in 2 boxes! All parts listed on this page are in Box B. If Box A is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Side Board Footboard Side Panel...
  • Page 6 Hardware Pack Hardware Pack #: T4135449N-00 1/4" X 3/4" 1/4″ X 36 X 10 1/4" X 1 3/16" X 26 1/4" X 1 9/16" X 14 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 7 Attach Z X 4 to A and B with Leg tip slants Screw into A and B as illustrated. towards outside! Do not completely tighten the BOLTS , leave half of the thread exposed. To avoid fraying the fabric during assembly, please lay A and B on a piece of cardboard.
  • Page 8 2.1 Open the non woven fabric window at the back of Part A. 2.2 Attach A1 and A2 to A with Then fully tighten all the bolts in this step. X 10 X 10...
  • Page 9 Attach E to C with Repeat the same step for remaining parts C/E. Slat holes towards upside. The smooth edge of part C must be oriented towards upside. X 14...
  • Page 10 Attach S and T to C with Repeat the same step for the other subassembly C/S/T . Pay special attention that small holes on slots of should be facing upward! X 12...
  • Page 11 Hang C x 2 on A & B as illustrated, don't fully tighten the bolts until STEP 7 is complete.
  • Page 12 Attach L X 2 to F with Repeat the same procedure for remaining part Lx 2 and F.
  • Page 13 Attach F x 2 to A and B with Then properly tighten all the bolts.
  • Page 14 8.1 Insert P1 into X ; 8.2 Press X into E , repeat the same procedure for the opposite side of the bed. Follow the same procedures going backwards for every row of slats. SLAT WARNING Correct: Slat curve should be facing upwards .
  • Page 15 9.1 Insert Y onto the ends of P1 assembled in previous step; 9.2 Take a new P1 and insert both sides into the other free end of Y , then press Y x 2 SIMULTANEOUSLY onto F x 2 as illustrated.

  • Page 16: Helpful Hints

    ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your DHP furniture can be disassembled and reassembled to move. ● Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement.
  • Page 17 Garantía Gracias por su compra DHP! DHP garantiza que este producto está libre de defectos de material y de fabricación, comprometiéndose a corregirlos en caso de ser hallados. Esta garantía es valida por un año a partir de la fecha de compra original. Esta se limita únicamente a la Registra tu producto y participa para ganar! reparación o reemplazo de partes defectuosas (no incluye la mano de obra).
  • Page 18 Lea antes de comenzar a ensamblar Partes ● Llame a nuestro numero gratuito si necesita asistencia. Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home ● Trabaje en un área espaciosa y cerca de donde su producto será utilizado, preferiblemente sobre una alfombra o utilice el cartón del empaque para proteger su piso y su producto.

  • Page 19: Consejos Útiles

    A&B. llevando el aparato a su nueva ubicación. Paso 2 ● Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de 2.1 Abra la ventana de tela no tejida en la parte posterior de la Parte mudanza.
  • Page 20 Merci d'avoir acheté un produit de DHP ! DHP garantit que ce produit est exempt de tout vice de matériaux et de fabrication et s'engage à remédier à un tel défaut. Cette garantie couvre un an à compter de la Enregistrez votre produit et date d'achat originale.

  • Page 21: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage Pièces ● Si vous avez besoin d'aide, appelez notre service à la clientèle sans frais. Pièces de rechange, visitez www.dhpfurniture/fre/support-home ● Travailler dans un endroit spacieux et près du lieu où l'unité sera utilisée, préférablement sur un tapis, ou sur un morceau de l'emballage pour protéger le plancher et le produit.

  • Page 22: Conseils Utiles

    à A&B. personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Étape 2 ● Votre mobilier DHP peut être démonté et reassemblé pour faciliter les 2.1 Ouvrez la fenêtre non tissée à l'arrière de la partie A déménagements.
