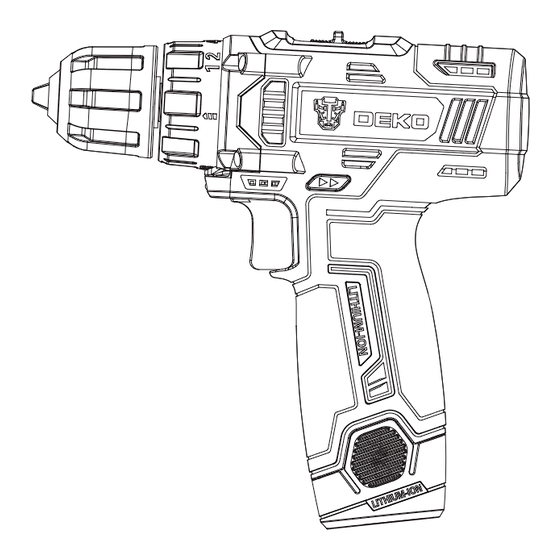

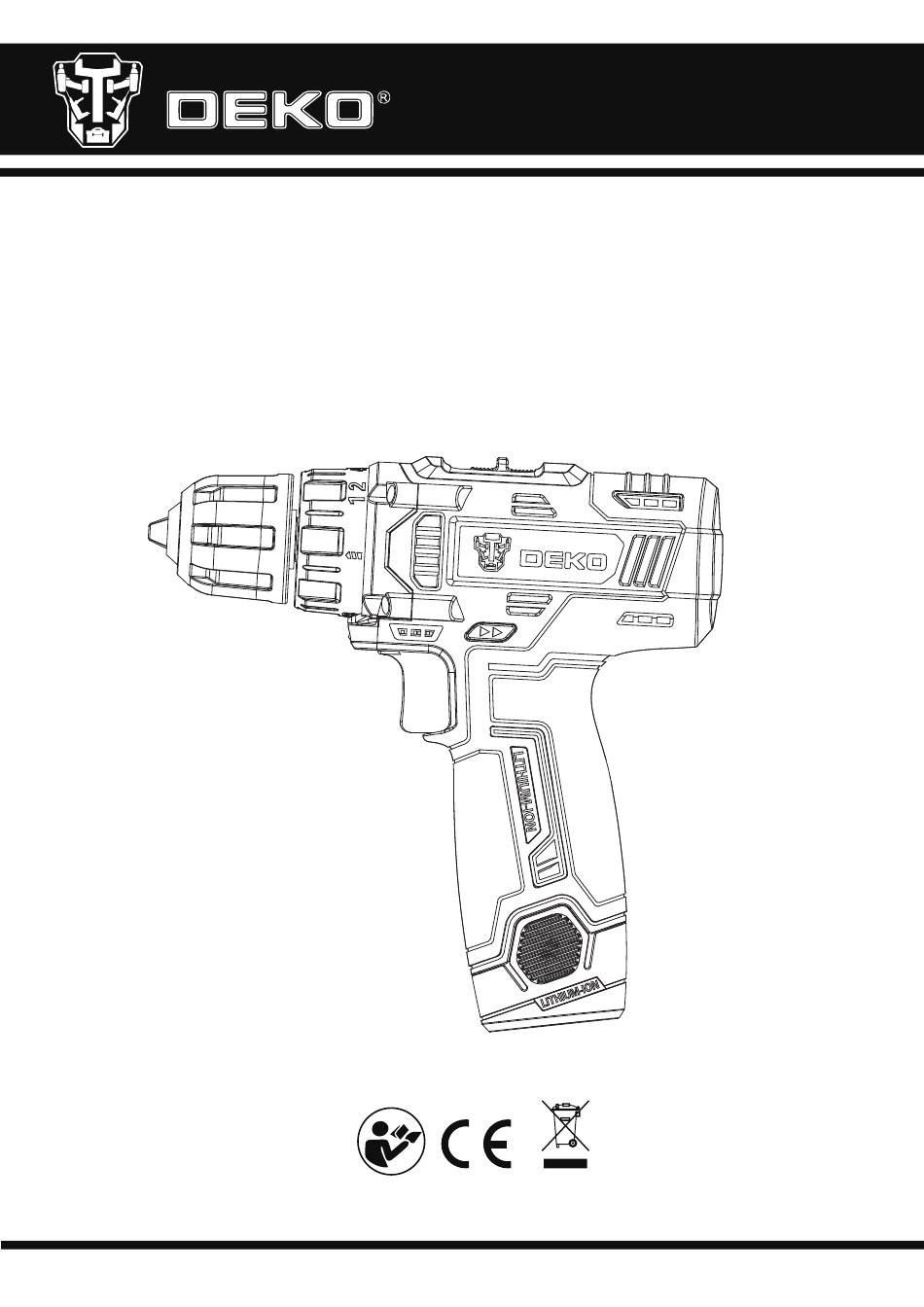

- Page 1 V21-07 INSTRUCTION MANUAL CORDLESS DRILL Model No.: DKCD12XL01 DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
-
Page 2: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING: WARNING: Read all safety warnings, instructions, illustrations and specifications pro- vided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 3 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.
- Page 4 may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature . Exposure to fire or tem- perature above 40 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the tempera- ture range specified in the instructions.
-
Page 5: Battery Care
Battery short or fire may result. Charge only DEKO approved rechargeable batteries. See Specifications. Other types of batteries may burst causing personal injury and damage. Charge battery pack in temperatures above +50 degrees F (10 degrees C) and below +104 degrees F (40 degrees C). -
Page 6: Production Specification
Do not dispose of power tools and batteries/rechargeable batteries into household waste! Dispose the products according to the regulation and requirement of local council. Production Specification Model DKCD12XL01 Rated voltage DC 12V Max. torque 28 N.m No load speed 0-350/0-1350/min Chuck size 10mm(3/8") -
Page 7: Parts Description
Parts Description 2-speed gear switch Torque adjustment ring 10mm(3/8”)keyless chuck Forward/reverse switch LED worklight Battery indicator Speed on/off control trigger Handle Battery pack release button Battery pack Intended Use The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramics and plastic. -
Page 8: Led Worklight
The center position of the control buton locks the tool in the OFF position. When changing the position of the control button, be sure the switch is released. Torque Adjustment Ring (18+1 Torque Settings) Your tool has an electronic adjustable torque screwdriver system for driving and removing a wide range of fasteners. -
Page 9: Battery And Charging
10°C-40°C(50°F-104°F). A long battery service life is achieved in this manner. Observe the notes for disposal. Use only original DEKO battery in conjunction with your DEKO power tool. Charging input port This measure alone protects the battery against dangerous overload. -
Page 10: Residual Risks
For safe and proper working, always keep the machine and ventilation slots clean. To ensure product SAFETY and RELIABILITY, repairs and any other maintenance or adjustment should be performed by a qualified repair person, always using DEKO replacement parts. Transport The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. - Page 11 DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
