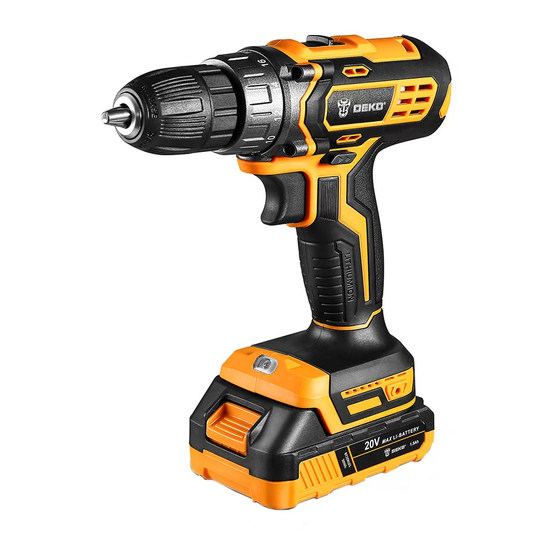

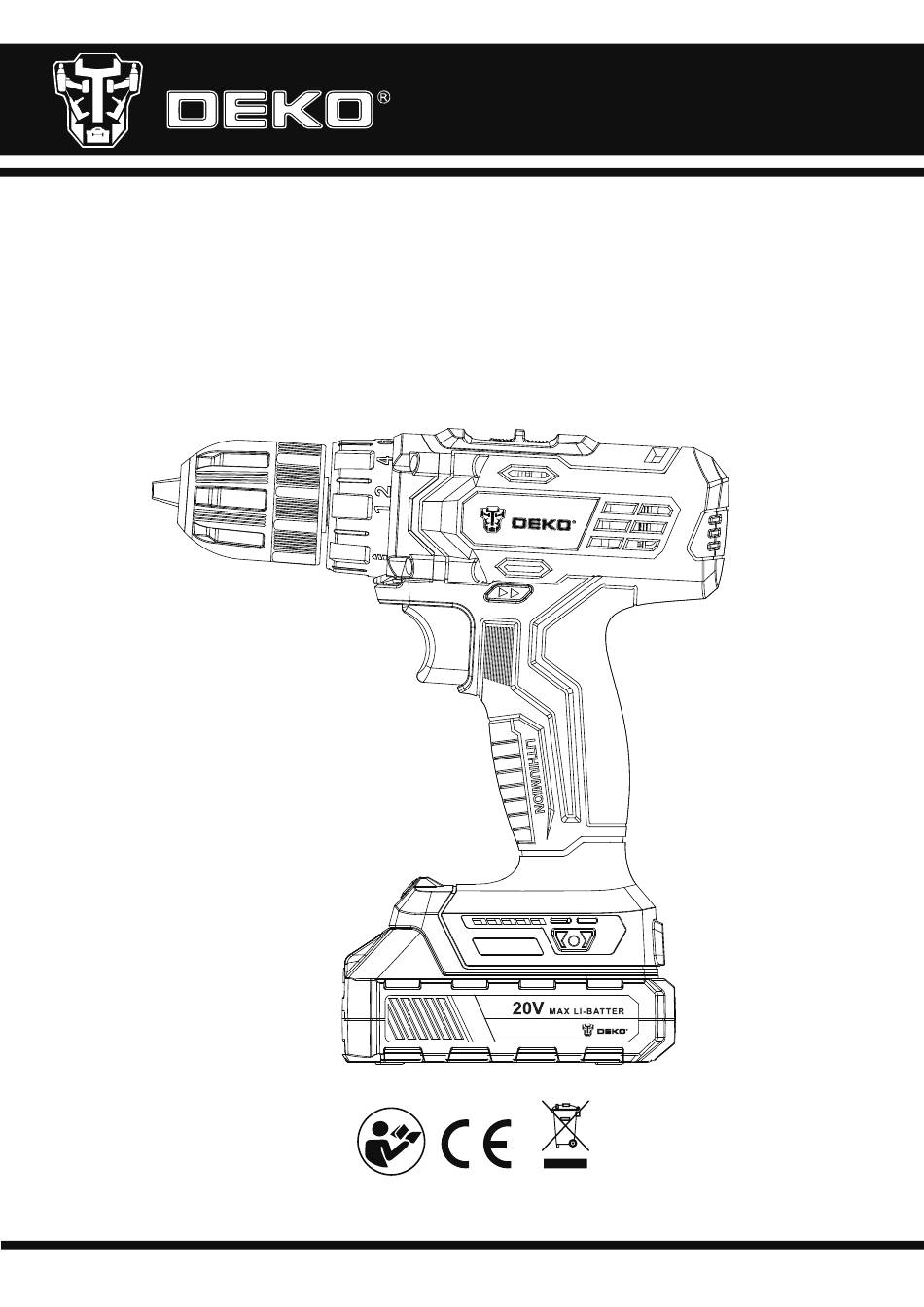

- Page 1 INSTRUCTION MANUAL CORDLESS DRILL Model No.: DKCD20XL01 DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
-
Page 2: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING: WARNING: Read all safety warnings, instructions, illustrations and specifications pro- vided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 3 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.
- Page 4 may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature . Exposure to fire or tem- perature above 40 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the tempera- ture range specified in the instructions.
-
Page 5: Production Specification
Dispose the products according to the regulation and requirement of local council. Keep the battery away from the fire. Keep the battery away from moisture or water. Production Specification Model DKCD20XL01 Rated voltage DC 20V Max. torque 40 N.m No load speed... -
Page 6: Parts Description
Parts Description 1.2-speed gear switch 2.Torque adjustment ring 3. 10mm(3/8”) keyless chuck 4. Forward/reverse switch 5. Speed on/off control trigger 6. Handle 7. LED worklight 8.Battery pack 9.Battery pack release button 10.Battery indicator 11.Charing input port. 12.Adapter/Charger 13. Indicator light Red light--- in charge Green light- fully charged Intended Use... - Page 7 The center position of the control buton locks the tool in the OFF position. When changing the position of the control button, be sure the switch is released. Torque Adjustment Ring (18+1 Torque Settings) Your tool has an electronic adjustable torque screwdriver system for driving and removing a wide range of fasteners.
-
Page 8: Battery Charging
A long battery service life is achieved in this manner. Observe the notes for disposal. Use only original DEKO battery in conjunction with your DEKO power tool. This measure alone protects the battery against dangerous overload. When using other batteries, e.g.imitations, recon- ditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries. -
Page 9: Residual Risks
We provide 1-year quality warranty from purchasing date and friendly customer service. Our after-sales service responds to your questions concerning maintenance and repair of our product as well as spare parts. Please contact your local distributor or send emails to services@deko- tools.com Transport The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. - Page 10 DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
