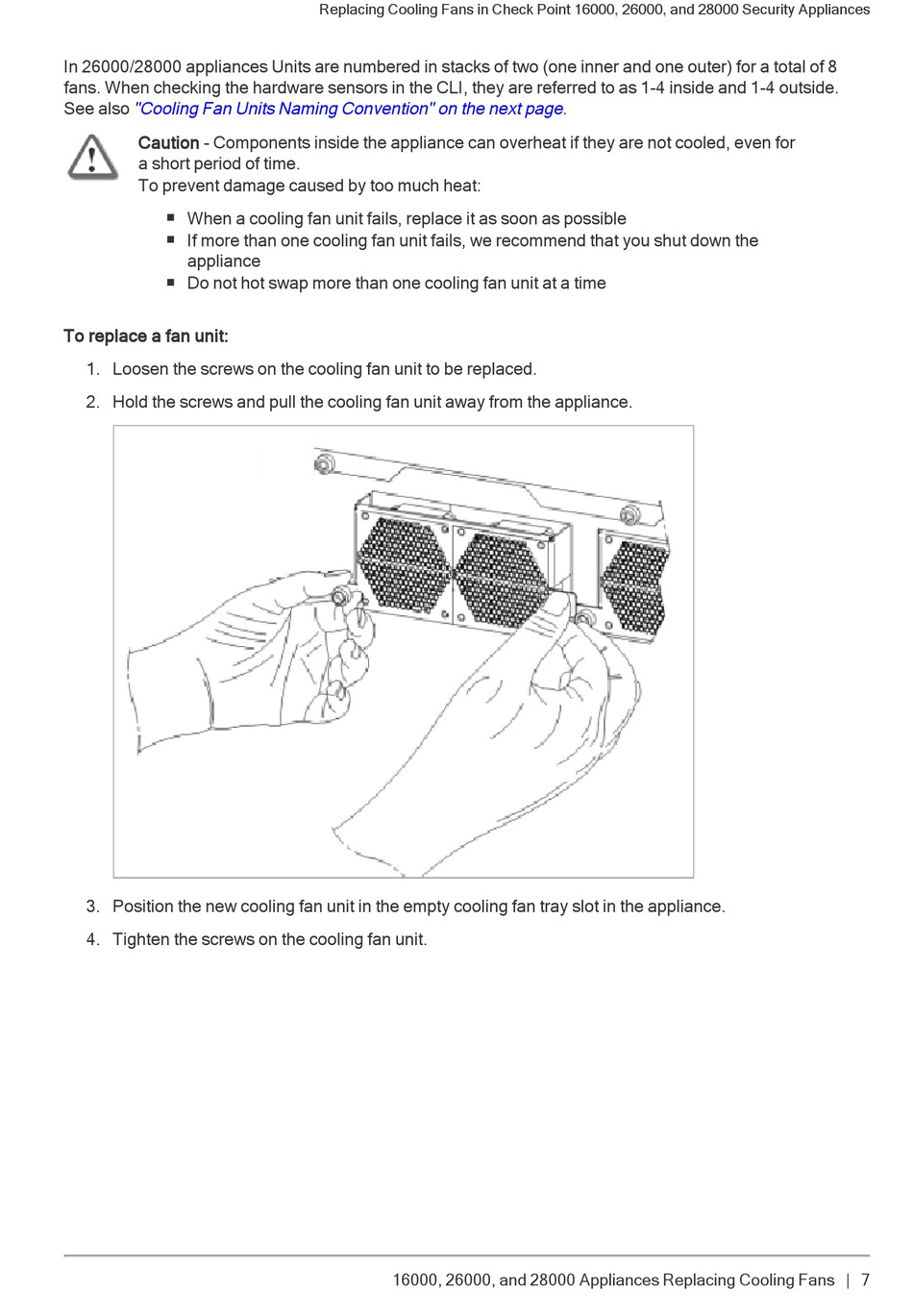

Check Point QUANTUM 16000 Replacing page 7

In 26000/28000 appliances Units are numbered in stacks of two (one inner and one outer) for a total of 8
fans. When checking the hardware sensors in the CLI, they are referred to as 1-4 inside and 1-4 outside.
See also "Cooling Fan Units Naming Convention" on the next page
Caution - Components inside the appliance can overheat if they are not cooled, even for
a short period of time.
To prevent damage caused by too much heat:
When a cooling fan unit fails, replace it as soon as possible
n
If more than one cooling fan unit fails, we recommend that you shut down the
n
appliance
Do not hot swap more than one cooling fan unit at a time
n
To replace a fan unit:
1. Loosen the screws on the cooling fan unit to be replaced.
2. Hold the screws and pull the cooling fan unit away from the appliance.
3. Position the new cooling fan unit in the empty cooling fan tray slot in the appliance.
4. Tighten the screws on the cooling fan unit.
Replacing Cooling Fans in Check Point 16000, 26000, and 28000 Security Appliances
16000, 26000, and 28000 Appliances Replacing Cooling Fans | 7
.
