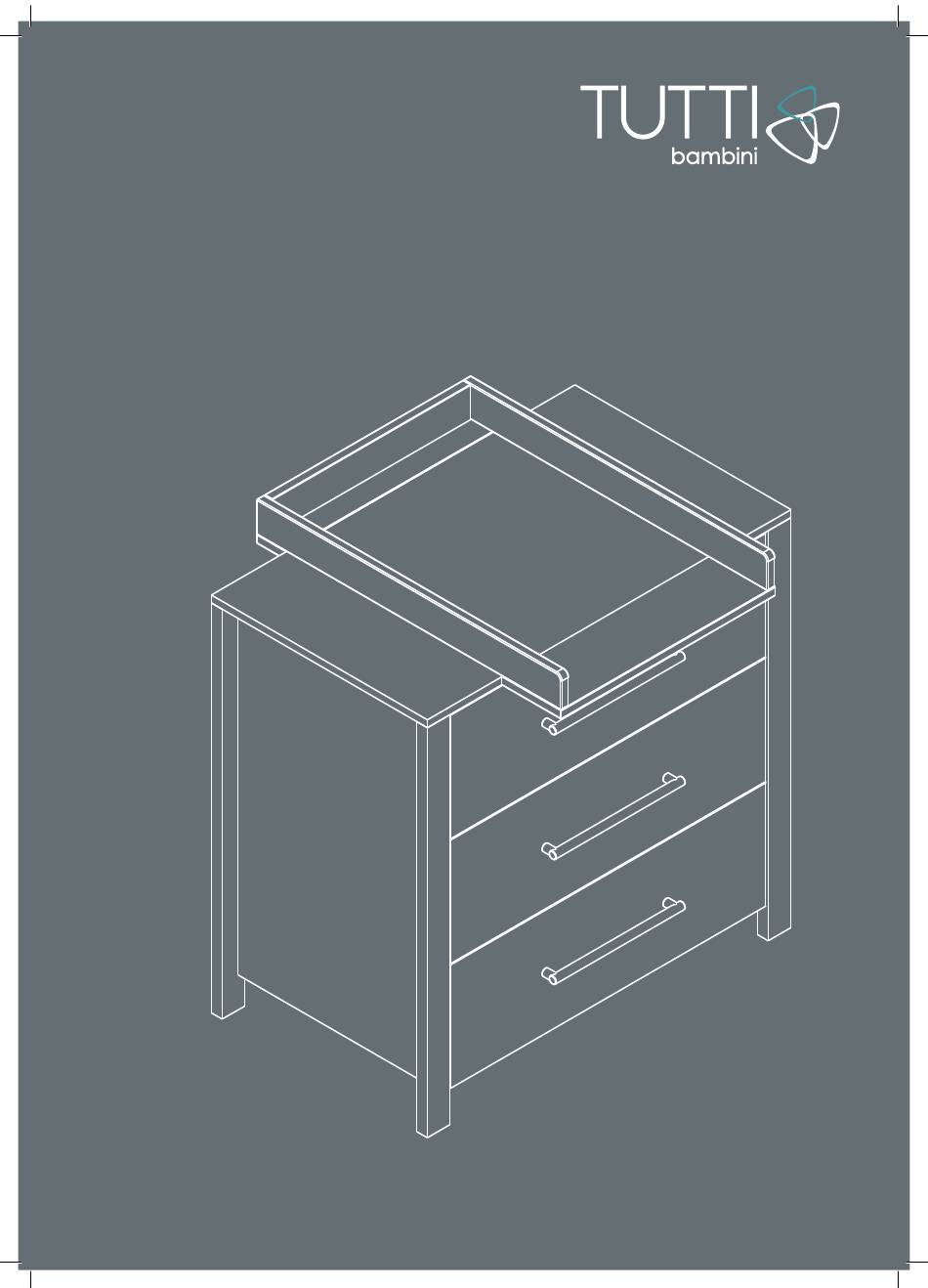

- Page 1 Tivoli Chest Changer Assembly Instructions...
- Page 2 Conforms to BS EN 12221:2008+A1 2013 Tutti Frutti Direct Ltd. 2 Arnold Place, Bletcham Way, Bletchley, Milton Keynes, MK1 1FD t: +44(0)208 368 5800 e: support@tuttibambini.com www.tuttibambini.com Tivoli Chest Changer 211463 IMPORTANT:RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
- Page 3 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacture for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights www.tuttibambini.com...
-
Page 4: Parts List
Parts List Hardware List 1pc for replacement 53 pc 6 pc 1 pc 8x40mm 6.5x40mm 4x16mm 2pc for replacement 54 pc 1 pc 15x11.5mm 10/6mm soft closing runners 3 pc Corner support 6 pc 1 pc 15x10mm 450mm 200x30mm 1pc for replacement 31pc 11 pc 4 pc... - Page 5 Assembling into chest E x 6 PCS A x 52 PCS M x 4 PCS Assemble metal dowels A x 52. Assemble metal dowels M x 4. Assemble wooden dowels E x 6. www.tuttibambini.com...
- Page 6 Assembling into chest D x 11 PCS B x 8 PCS Assemble screw 11 x D. Assemble locking nuts 24 x B. B x 4 PCS Assemble locking nuts 4 x B. Assemble the back board www.tuttibambini.com...
- Page 7 Assembling into chest B x 7 PCS B x 7 PCS Assemble locking nuts 7 x B. Assemble locking nuts 7 x B. G x 3 PCS B x 10 PCS K x 24 PCS Assemble top frame to cabinet body Assemble locking nuts 10 x B.
- Page 8 Assembling into chest C x 6 PC H x 1 PC 4x16mm I x 1 PC F x 3 PC G x 1 PC Assemble anti falling hardware H x 1, I x 1, Assemble the drawers G x 1. Assemble back panel buckle C x 6 9 13 Fittings to attach the strap to the wall are not provid- ed and suitable fittings for the wall type should be...
- Page 9 11. The changing unit must be fixed to the wall for safe use of the product and that fastenings used should be appropriate to the wall; 12. Any additional or replacement parts are obtained from the Tutti Bambini or its distributor. Product development dictates that components may occasionally differ from the ones shown in the diagrams of th ese instruction s.
- Page 10 Notes 102-0070 Tutti Bambini Bed assembley instructions.indd 10 24/09/2018 12:39...
- Page 11 Join Us Follow us on Facebook TuttiBambiniUK Follow us on Twitter TuttiBambiniUK Follow us on Instagram TuttiBambiniUK 102-0070 Tutti Bambini Bed assembley instructions.indd 11 24/09/2018 12:39...
- Page 12 .com 102-0070 Tutti Bambini Bed assembley instructions.indd 12 24/09/2018 12:39...
