Summary of Contents for Vauth-Sagel VS TAL 470

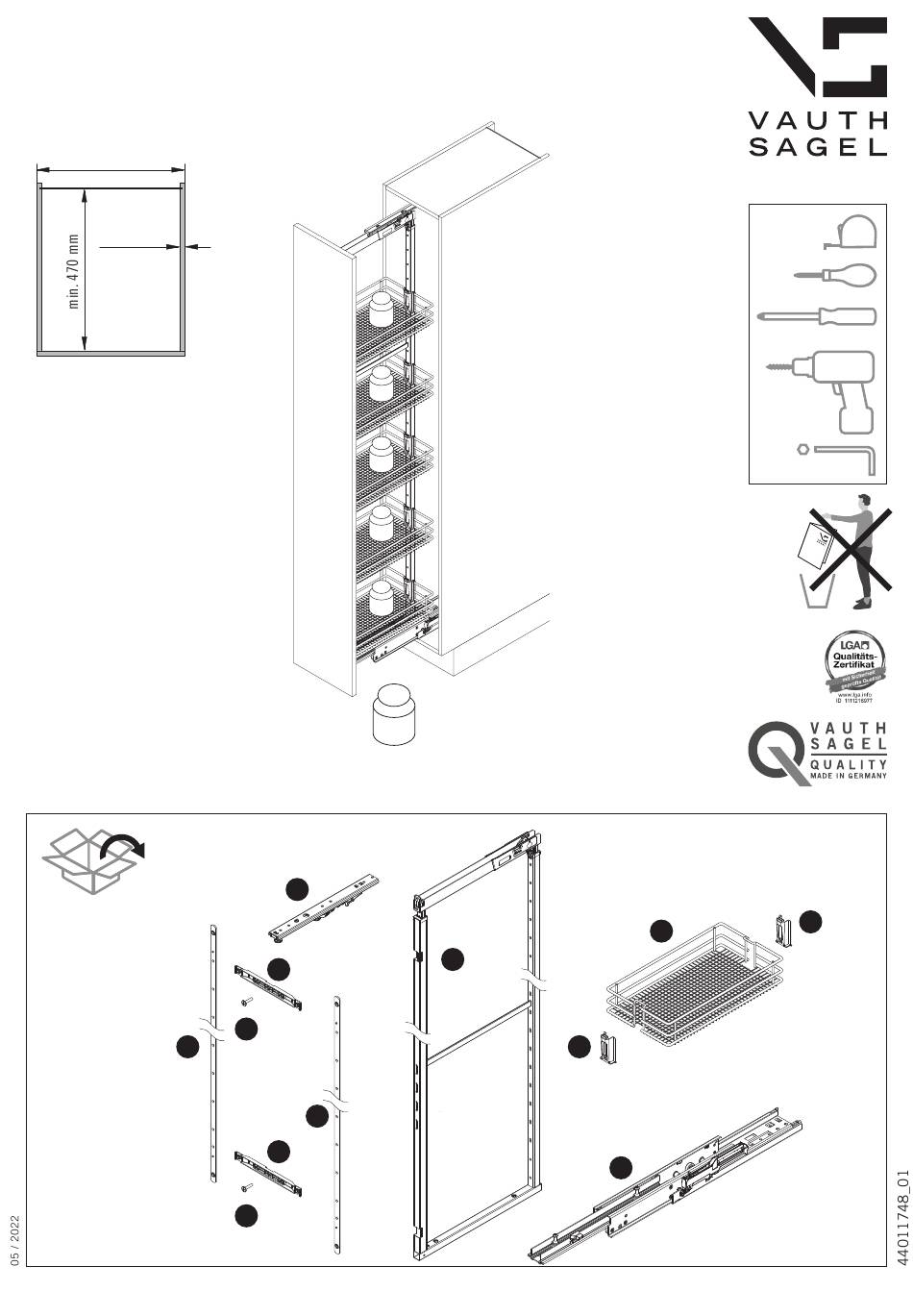

- Page 1 VS TAL Larder ® 300/400/500/600 mm 16 - 19 mm 1 6 k g PZ 2 Ø 5 mm 1 6 k g 1 6 k g 4 mm 1 6 k g 1 6 k g max. 80 kg Ʃ...
- Page 2 Appropriate fastening material is not supplied with the set. It is the responsibility of the installer to insure the unit is properly installed and securely fastened to wall studs. VAUTH-SAGEL VS TAL Larder ®...
- Page 3 Please install top runner first. These two positions for locator pins must be drilled! (PZ 2) 4.0 x 16 mm Ø 5 mm ø 5 mm ø 5 mm VAUTH-SAGEL VS TAL Larder ®...
- Page 4 (PZ 2) 4.0 x 16 mm 4.0 x 16 mm VAUTH-SAGEL VS TAL Larder ®...
- Page 5 ø 5 mm VS TAL Larder ® 2 x 96 4 x 96 7 x 96 10 x 96 1024 1152 12 x 96 1280 1408 14 x 96 1408 1536 16 x 96 1600 1728 VAUTH-SAGEL VS TAL Larder ®...
- Page 6 Z = X - 139 mm Z = internal height of frame X = internal height of cabinet (PZ 2) Caution The exact frame height has to be adjusted! Caution These screws need to be tightened before use! VAUTH-SAGEL VS TAL Larder ®...
- Page 7 Caution This screw needs to be fitted before use! 4 x 16 mm (PZ 2) M6 x 28 mm VAUTH-SAGEL VS TAL Larder ®...
- Page 8 Panhead 4,5 x 40 mm (PZ 2) VAUTH-SAGEL VS TAL Larder ®...
- Page 9 (PZ 2) (PZ 2) 4 mm 4 mm 4 mm 4 mm 4 mm 9/12 4 mm 9/12 VAUTH-SAGEL VS TAL Larder ®...
- Page 10 Removal of the frame 1. 2. Push button to release frame For reassembly follow from step 9 Weight adjustment on frame VAUTH-SAGEL VS TAL Larder ®...
- Page 11 Caution 4.5 x 16 mm of the top of the door This screw needs (Page 6/12) to be fitted before use. 4.5 x 16 mm 4 x 16 mm 1 1/12 VAUTH-SAGEL VS TAL Larder ® 1 1/12...
- Page 12 (Page 7/12) Please use vacuum cleaner to clean the runner Cleaning the lower runner no oil clean with dry cloth and vacuum cleaner only VAUTH-SAGEL Neue Straße 27 D-33034 Brakel-Erkeln +49 5272 601-01 vs@vauth-sagel.com VAUTH-SAGEL VS TAL Larder ®...
