SYSTEMTECHNIK
WARICORNER

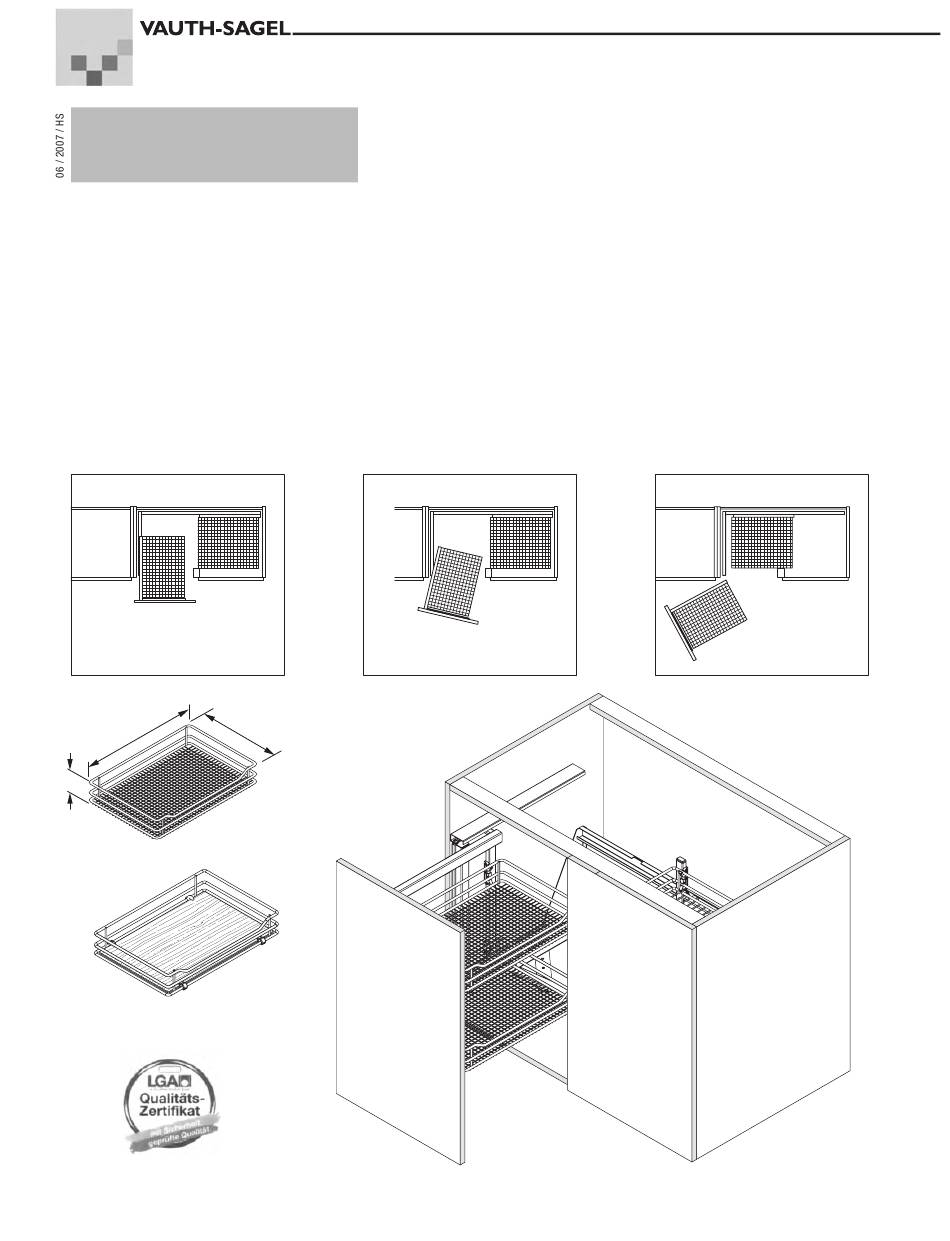

Cabinet dimensions
: 900 mm
Widths O.D.
: 480 mm
Depth min. I.D.
: 530 mm
Height min. I.D.
Installation measurements
Height I.D.:
WACO 2
530 mm (4 baskets)
Basket dimensions Saphir and Scalea
basket
width
Front basket
450
Cabinet basket 430
D
W
H
Saphir basket
Scalea basket
We reserve the right to change and/or improve the technical specifications without notice. For the most current technical information please call us.
patent protected
basket
basket
depth
height
305
75
370
75
1
Specifications
Fittings:
full extension
Colors:
RAL 9006 silver
Load capacity of baskets:
Front baskets:
5 kg (12 lbs.)
Rear baskets:
12.5 kg (28 lbs.)
Baskets:
Saphir:
chrome
Scalea:
maple/RAL 9006 silver
E-Z-Close Damping System standard
2
(left hand unit shown)
page 1 of 5
3
