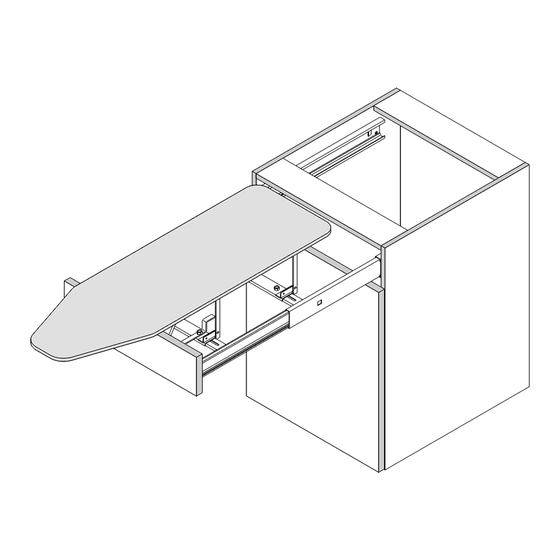

- Page 1 BUILT-IN IRONING BOARD Cabinet size Description width min : 400 mm - 500 mm Fitting : RAL 9010 white depth min : 510 mm Ironing Board : Full Extension height min : 120 mm...
- Page 2 diagram A Assembling the cabinet work area guide slide “left / right“ The guide slides are to be positioned in such a way that 30er there are 34 mm between the 40er cabinet front edge and the middle hole of the slide; and from the cabinet upper edge to the middle hole of the slides, there should be 74 mm with a...
- Page 3 Vauth-Sagel SYSTEMTECHNIK GmbH & Co.KG Neue Straße 27 D-33034 Brakel-Erkeln Tel. +49-52 72/6 01-01 Fax. +49-52 72/6 01-193 www.vauth-sagel.de e-mail: VS@Vauth-Sagel.de We reserve the right to make technical changes and to improve product specifications.
