DriMaster II HiFlo Stainless
Steel Upholstery Tool
Owner's Manual
HydraMaster North America, Inc.
11015 47
Avenue West, Mukilteo, Washington 98275
th
MAN-33278 Rev. 0, December 31, 2009
(182-803)
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying
or electronic retrieval systems) without the express written permission of HydraMaster North America, Inc.
All rights reserved. © 2009 HydraMaster North America, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DriMaster II HiFlo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HydraMaster DriMaster II HiFlo

Summary of Contents for HydraMaster DriMaster II HiFlo

  • Page 1 No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic retrieval systems) without the express written permission of HydraMaster North America, Inc. All rights reserved. © 2009 HydraMaster North America, Inc.

  • Page 2: Table Of Contents

    Cleaning the Filter Cartridge and Orifice Plate........3-3 ASSeMBlIeS ANDpARTS lISTS ..............SeCTIoN 4 DriMaster II Hiflo Stainless Steel upholstery Tool Assembly parts list . 4-3 Accessory Handle Assembly parts list ........... 4-4 Hide-A-Hose Stainless Steel Hose Assembly parts list ......4-7 HoW To oRDeR pARTS ................
  • Page 3 4-3. Accessory Handle Assembly..............4-4 figure 4-4. Hide-A-Hose Stainless Steel Hose Assembly - parts View 1 of 2 ..4-5 figure 4-5. Hide-A-Hose Stainless Steel Hose Assembly - parts View 2 of 2 ..4-6 iii - DriMaster II Hiflo Stainless Steel upholstery Tool owner’s Manual...

  • Page 4: General Information

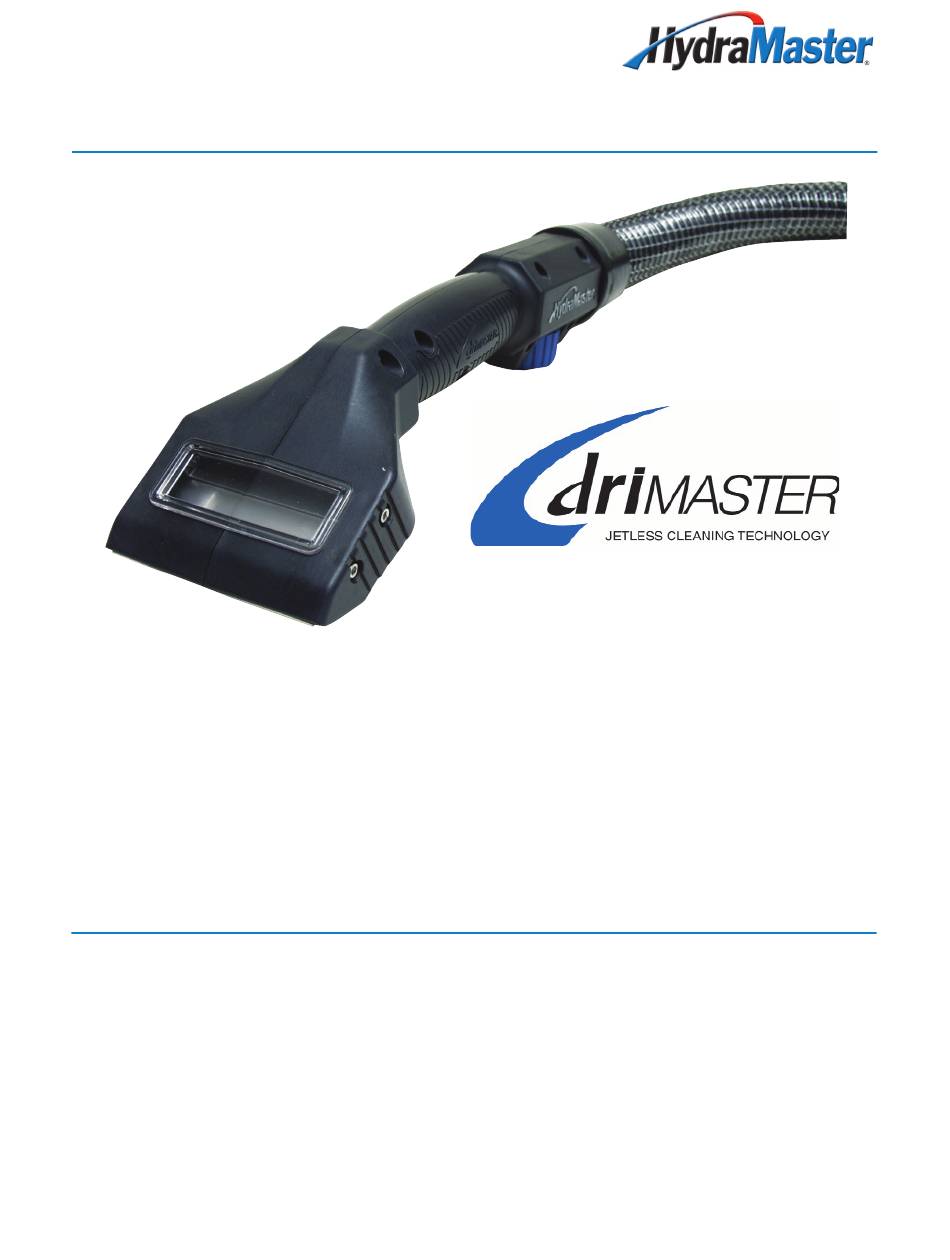

    1 - General Information Congratulations on purchasing the very latest in upholstery cleaning technology. The patented DriMaster II Hiflo Stainless Steel upholstery Tool, shown in figure 1-1, is perfect for cleaning upholstery, fabric and stairs. Because of its Jetless Cleaning Technology, it has no trigger valve, no spray jet and never needs a separate dry pass.*...

  • Page 5: Contact Information

    To find a local distributor, please visit our website at http://www.hydramaster.com/owners/ locate/index.asp. If your question cannot be resolved by your distributor or by the information within this manual, you may contact HydraMaster Customer Service direct using the following phone numbers. Hours Telephone numbers...

  • Page 6: Warnings, Cautions And Notices

    WArnIngS, CAUTIOnS AnD nOTICES HydraMaster uses this WARNING symbol throughout the manual to warn of possible injury or death. This CAuTIoN symbol is used to warn of possible equipment damage. This NoTICe symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.

  • Page 7: Operating Instructions

    IICrC guidelines when cleaning. OPTIOnAl ACCESSOrY HAnDlE ASSEMblY The DriMaster II Hiflo Stainless Steel tool can be equipped with an optional accessory handle (purchased separately) to increase comfort and control during difficult or extended repetitious use of the upholstery tool.

  • Page 8: Begin Cleaning

    ClEAnIng Do not use the DriMaster II Hiflo Stainless Steel upholstery Tool on a machine exceeding 14” Hg vacuum and 500 psi solution pressure. personal injury could result. Attach the solution hose to the solution quick connect. A 1 ½” - 2” vacuum hose can be attached to the vac hose manifold (see figure 2-3).

  • Page 9: Figure 2-4. Turning Knob To "Hiflo" Position Forms Sheet Of Water Across Bar Jet

    When the solution knob is turned toward the “Hiflo” position, the water will form a sheet across the solution bar jet (see figure 2-4). The amount of vacuum and pressure produced by your machine will determine the overspray on the solution bar jet. The patented solution bar jet makes a trigger valve unnecessary.

  • Page 10: Tool Maintenance

    AnD rE-InSTAllIng THE ClEAr WInDOW COVEr Remove vacuum hose cuff from DriMaster II Hiflo Stainless Steel upholstery Tool and disconnect the solution hose quick connect as shown in figure 3-1. lightly heating the “cuff” with a heat gun will make the cuff easier to remove and install.

  • Page 11: Cleaning The Solution Bar Jet

    Slide the clear window cover off of the tool body. To re-install the clear window cover, slide it into one half of the tool body (see figure 3-5). Then slide the other half of the body into the window. The clear window has grooves on either side that slide onto the edges of the cutouts in the tool bodies.

  • Page 12: Figure 3-8. Remove Filter Cartridge And Plate Orifice

    (see arrows in figure 3-9). Do not operate the DriMaster II Hiflo Stainless Steel Upholstery Tool without the orifice plate. If you do not properly re-install the orifice plate in the solution quick connect (see figure 3-9), equipment damage could result.

  • Page 13: Assemblies Andparts Lists

    4 - Assemblies and parts lists Figure 4-1. DriMaster II HiFlo Stainless Steel Upholstery Tool Assembly Overview 7332 4-1: Assemblies and parts lists...

  • Page 14: Figure 4-2. Drimaster Ii Hiflo Stainless Steel Upholstery Tool Assembly - Parts View

    Figure 4-2. DriMaster II HiFlo Stainless Steel Upholstery Tool Assembly - Parts View 7332 Assemblies and parts lists: 4-2...

  • Page 15: Drimaster Ii Hiflo Stainless Steel Upholstery Tool Assembly Parts List

    DriMaster II HiFlo Stainless Steel Upholstery Tool Assembly Parts list Item Part number Description 000-076-088 Jet, DriMaster S/S Hiflo Bar Assembly 000-105-533 plate, Wear DriMaster 000-061-138 Handle, Handpiece, left, DriMaster Hiflo 000-169-222 Valve, Ball S/S 000-052-782 1/8” NpT X 1.5 S. S.

  • Page 16: Accessory Handle Assembly Parts List

    Figure 4-3. Accessory Handle Assembly 6958 Rev. B Accessory Handle Assembly Parts list Item Part number Description 000-061-142 Handle, Accessory, Right 000-061-141 Handle, Accessory, left 000-174-167 Washer, flat, 0.248” o.D. x 0.128” I.D. x 0.029” Thk 000-094-063 Nut, #6-32 Nyloc 000-143-579 Screw, #6-32uNC x 2”...
  • Page 17 Figure 4-4. Hide-A-Hose Stainless Steel Hose Assembly - Parts View 1 of 2 7331 Rev. D CORRECTED ORD IN EXPLODED VIEW THREAD ENGAGEM MODEL BETWEE CORRECTED ITEM 1.500 See Figure 4-5 for details DETAIL B 120±2 2.50±0.25 1.5" VAC HOSE - GRAY INSERT, 1/8"...
  • Page 18 Figure 4-5. Hide-A-Hose Stainless Steel Hose Assembly - Parts View 2 of 2 7331 Rev. D DETAIL 2.50±0.25 NOTES: BOND SCOT 000-14 SWAG PUSH DIE, 4 SWAG PUSH DIE, 4 DETAIL A Assemblies and parts lists: 4-6...

  • Page 19: Hide-A-Hose Stainless Steel Hose Assembly Parts List

    Hide-A-Hose Stainless Steel Hose Assembly Parts list Item Part number Description 000-052-803 Housing, 1/4" S/S. filter 000-052-516 Quick Connect, 440 Male W/ Viton Std 000-049-253 filter Cartridge, 1/4" S/S 000-052-805 Quick Connect, female, 1/8" - open 000-180-024 Orifice, Plate 0.067" 000-052-804 Adapter, S/S.

  • Page 20: How To Order Parts

    If, for any reason, your distributor is unable to supply you with the necessary parts, they may call us and arrange for expedited shipping. HydraMaster sells parts only through authorized distributors and service centers. We shall always endeavor to be fair in our evaluation of your warranty claim, and shall provide you with a complete analysis of our findings.

  • Page 21: Warranty Information

    6 - Warranty Information All parts of the DriMaster II Hiflo Stainless Steel upholstery Tool are warranted against defects for 1 year. freezing, hard water, the use of unapproved solvents and/or abuse will void the warranty. HydraMaster warranty covers only defective materials and/or workmanship for the period listed.
