DriMaster HiFlo
Upholstery Tool
Owner's Manual
Model 000-163-012
HydraMaster / U.S Products North America, Inc.
11015 47
th
Avenue West, Mukilteo, Washington 98275
MAN-33123 Rev. 3, September 28, 2012
(182-801)
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic
retrieval systems) without the express written permission of HydraMaster / U.S. Products Specifications and information in this
document are subject to change without prior notice. All rights reserved. © 2012 HydraMaster / U.S. Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DriMaster HiFlo and is the answer not in the manual?

Questions and answers

Related Manuals for HydraMaster DriMaster HiFlo

Summary of Contents for HydraMaster DriMaster HiFlo

  • Page 1 No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic retrieval systems) without the express written permission of HydraMaster / U.S. Products Specifications and information in this...

  • Page 3: Table Of Contents

    Accessory Handle Assembly Parts list ........... 4-4 Hide-A-Hose Assembly Parts list ............4-7 HOW TO ORDeR PARTS ................SeCTION 5 Warranty Parts Orders ................5-1 Parts Orders .................... 5-1 emergencies ................... 5-1 WARRANTy INFORMATION ............... SeCTION 6 i - DriMaster HiFlo Upholstery Tool Owner’s Manual...
  • Page 4 Figures Figure 1-1. DriMaster HiFlo Upholstery Tool .............. 1-1 Figure 1-2. Optional Accessory Handle Attached to Tool ........... 1-1 Figure 2-1. Remove Tool Screws ................2-1 Figure 2-2. Attach Accessory Handle ................. 2-1 Figure 2-3. Attach Solution Hose and Adjust Water Volume ........2-2 Figure 2-4.

  • Page 5: General Information

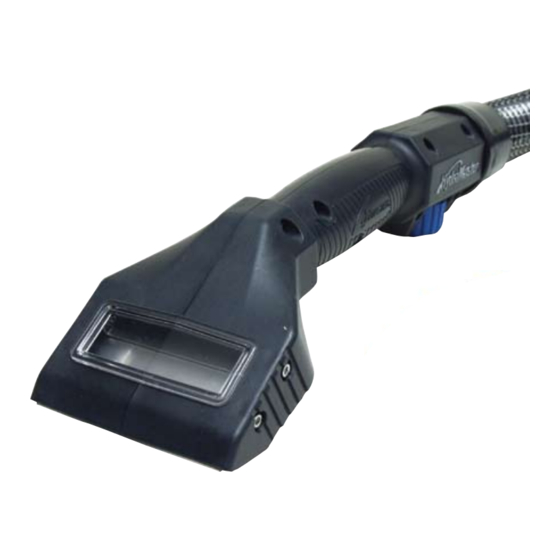

    1 - General Information Congratulations on purchasing the very latest in upholstery cleaning technology. The patented DriMaster HiFlo Upholstery Tool, shown in Figure 1-1, is perfect for cleaning upholstery, fabric and stairs. Because of its Jetless Cleaning Technology, it has no trigger valve, no spray jet and never needs a separate dry pass.*...

  • Page 6: Contact Information

    If you have any questions regarding the operation, maintenance or repair of this upholstery tool, please contact your local distributor. To find a local distributor, please visit our website at http://www.hydramaster.com/owners/locate/index.asp. http://www.usproducts.com/findadealer.aspx . If your question cannot be resolved by your distributor or by the information within this manual, you may contact Customer Care direct using the following phone numbers.

  • Page 7: Warnings, Cautions And Notices

    WArnIngS, CAUTIOnS AnD nOTICES HydraMaster / U.S. Products uses this WARNING symbol throughout the manual to warn of possible injury or death. This CAUTION symbol is used to warn of possible equipment damage. This NOTICe symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.
  • Page 8 General Information: 1-4...

  • Page 9: Operating Instructions

    2 - Operating Instructions your DriMaster HiFlo Upholstery Tool has been engineered using the latest and most sophisticated technology available to produce the finest upholstery cleaning results possible. Despite this, it remains only a tool of the upholstery cleaning trade and can produce only as a good a job as the person operating it.

  • Page 10: Begin Cleaning

    ClEAnIng Do not use the DriMaster HiFlo Upholstery Tool on a machine exceeding 14” Hg vacuum and 500 psi solution pressure. Personal injury could result. Attach the solution hose to the solution quick connect. A 1 ½” - 2” vacuum hose can be attached to the vac hose manifold (see Figure 2-3).

  • Page 11: Figure 2-4. Turning Knob To "Hiflo" Position Forms

    When the solution knob is turned toward the “HiFlo” position, the water will form a sheet across the solution bar jet (see Figure 2-4) The amount of vacuum and pressure produced by your machine will determine the overspray on the solution bar jet. The patented solution bar jet makes a trigger valve unnecessary.
  • Page 12 Operating Instructions: 2-4...

  • Page 13: Tool Maintenance

    AnD rE-InSTAllIng THE ClEAr WInDOW COVEr Remove vacuum hose cuff from DriMaster HiFlo Upholstery Tool and disconnect the solution hose quick connect as shown in Figure 3-1. lightly heating the “cuff” with a heat gun will make the cuff easier to remove and install.

  • Page 14: Cleaning The Solution Bar Jet

    Slide the clear window cover off of the tool body. To re-install the clear window cover, slide it into one half of the tool body (see Figure 3-5). Then slide the other half of the body into the window. The clear window has grooves on either side that slide Figure 3-5.

  • Page 15: Cleaning The Filter Cartridge And Orifice Plate

    (see arrows in Figure 3-9). Do not operate the DriMaster HiFlo Upholstery Tool without the orifice plate. If you do not properly re-install the orifice plate in the solution quick connect (see Figure 3-9), equipment damage could result.
  • Page 16 Tool Maintenance: 3-4...

  • Page 17: Assemblies And Parts Lists

    4 - Assemblies and Parts lists This section contains all the assemblies and parts lists associated with the upholstery tool: „ Handpiece Assembly Parts lis „ Accessory Handle Assembly Parts list „ Hide-A-Hose Assembly Parts list 4-1: Assemblies and Parts lists...

  • Page 18: Figure 4-1. Handpiece Assembly

    Figure 4-1. Handpiece Assembly 6960 Rev. F Set Screw (P/N 000-143-374) Included with P/N 000-061-146 Assemblies and Parts lists: 4-2...

  • Page 19: Handpiece Assembly Parts List

    Capscrew, Socket Head, 6-32 X 7/8 000-068-667 Assembly, Hide-A-Hose * DriMaster HiFlo Upholstery Tools manufactured before April 9, 2009 will not include this Bar Jet Assembly (P/N 000-076-088) and therefore will not include the filter and orifice (see Figure 4-4).

  • Page 20: Accessory Handle Assembly Parts List

    4/2/2007 CHECKED 4/9/2007 THE INFORMATION CONTAINED IN THIS APPVD 4/9/2007 DRAWING IS THE SOLE PROPERTY OF HYDRAMASTER CORPORATION. ANY SIZE PART NUMBER REPRODUCTION IN PART OR AS A WHOLE DRIMASTER HIFLO WITHOUT THE WRITTEN PERMISSION OF 000-061-144 HYDRAMASTER CORPORATION. IS...
  • Page 21 Figure 4-3. Hide-A-Hose Assembly - Parts View 1 of 2 6959 Rev. e DETAIL B SCALE 1 : 2 See Figure 4-4 for details 4-5: Assemblies and Parts lists...
  • Page 22 Figure 4-4. Hide-A-Hose Assembly - Parts View 2 of 2 6959 Rev. e Assemblies and Parts lists: 4-6...

  • Page 23: Hide-A-Hose Assembly Parts List

    Quick Connect, 440 Male w/ Viton Std 000-052-171 Housing, 1/4” Brass Filter * DriMaster HiFlo Upholstery Tools manufactured before April 9, 2009 will not include the Bar Jet Assembly (P/N 000-076-088) and therefore will not include the filter and orifice.
  • Page 24 Assemblies and Parts lists: 4-8...

  • Page 25: How To Order Parts

    If, for any reason, your distributor is unable to supply you with the necessary parts, they may call us and arrange for expedited shipping. HydraMaster / U.S. Products sells parts only through authorized distributors and service centers. HydraMaster / U.S. Products warranty covers only defective materials and/or workmanship for the periods listed.
  • Page 26 How to Order Parts: 5-2...

  • Page 27: Warranty Information

    6 - Warranty Information All parts of the DriMaster HiFlo upholstery tool are warranted against defects for one year. Freezing, hard water, the use of unapproved solvents and/or abuse will void the warranty. HydraMaster / U.S. Products warranty covers only defective materials and/or workmanship for the period listed.
  • Page 28 Warranty Information: 6-2...
