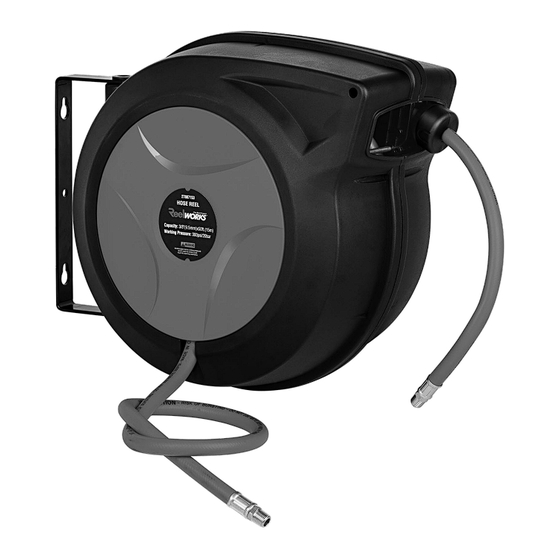

Mutifunction Air Hose Reel
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 07/03/17
Advertisement
Table of Contents
Related Manuals for Reelworks 27807153
Summary of Contents for Reelworks 27807153

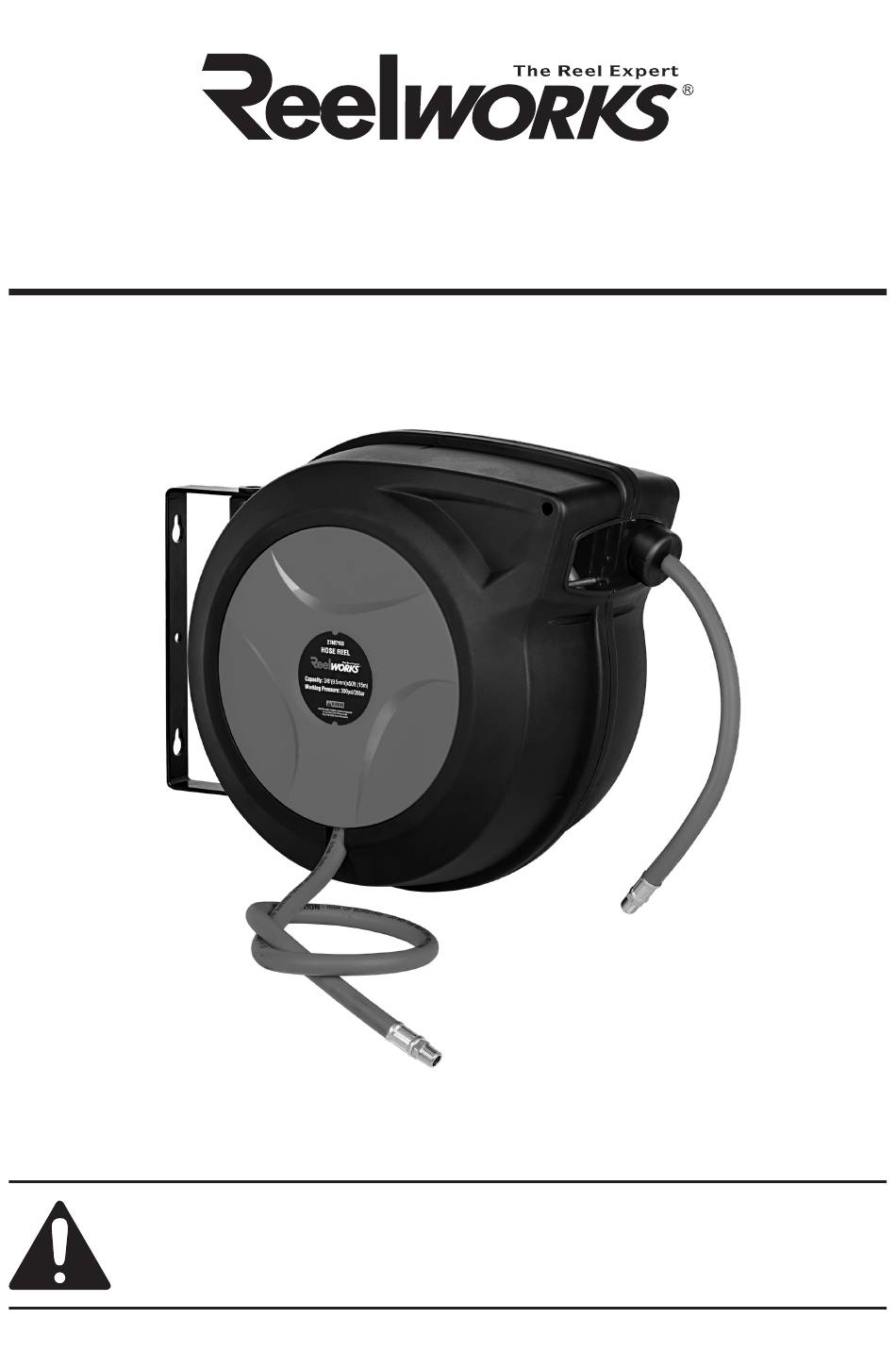

- Page 1 Mutifunction Air Hose Reel Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
-
Page 2: General Safety Regulations
GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Technical Details
TECHNICAL DETAILS Hose Capacity Hose Working Item No. Max Pressure Temperature Material I.D. Length 27807153 300Psi (20Bar) -20~60˚C (-4~140˚F) Hybrid Polymer 3/8"/9.5mm 15m/50ft 459(18") 205(8") 15.5(0.6") 8.5(0.3") 8.5(0.3") Spring driven drum: for automatic retractable. Locking ratchet: to maintain the desired length of hose in use. -
Page 4: Operation
On the wall & ceiling 4) The end of incoming hose can be connected to desired supply source. 5) Outlet fittings on reel hose attach to desired tool, or nozzle. Check connection for leakage, also check hose reel for correct operation. See: Operation section. 6) If hose stopper adjustment is required, pull hose from reel and allow to latch at desired length. -
Page 5: Limited Warranty
LIMITED WARRANTY 1. The manufacturer warrantees this hose reel against defects in material and craftsmanship, for a period of 24 months from date of purchase, but not including hose and O-ring parts. 2. Manufacturer’s liability is limited to replacement or repair of defective material within the warranty period, when returned freight prepaid to the distributor or their designated service depot. - Page 6 EXPLODED AND PARTS LIST...
- Page 7 Part No. Description Q’ty Part No. Q’ty Description Hose Assembly Right Casing O-ring Baffle Ratchet Paw Synchronous Belt Ratchet Synchronous Wheel Screws Screws Support Cover Spring O-ring Hose Assembly Spool Guide Bar Drum Reduction Assembly Fixed Pin Spring Base Gasket Hose Compositor Assembly Left Shell Screws...
- Page 8 Intradin (Shanghai) Machinery Co., Ltd. iti-fluid@intradinchina.com www.intradin.com Size: 145x210mm 157克铜版纸 REV 07/03/17 3.02.01.148...
