Reelworks HR211 Series Instruction Manual

Industrial explosion-proof hose reel

Advertisement

Quick Links

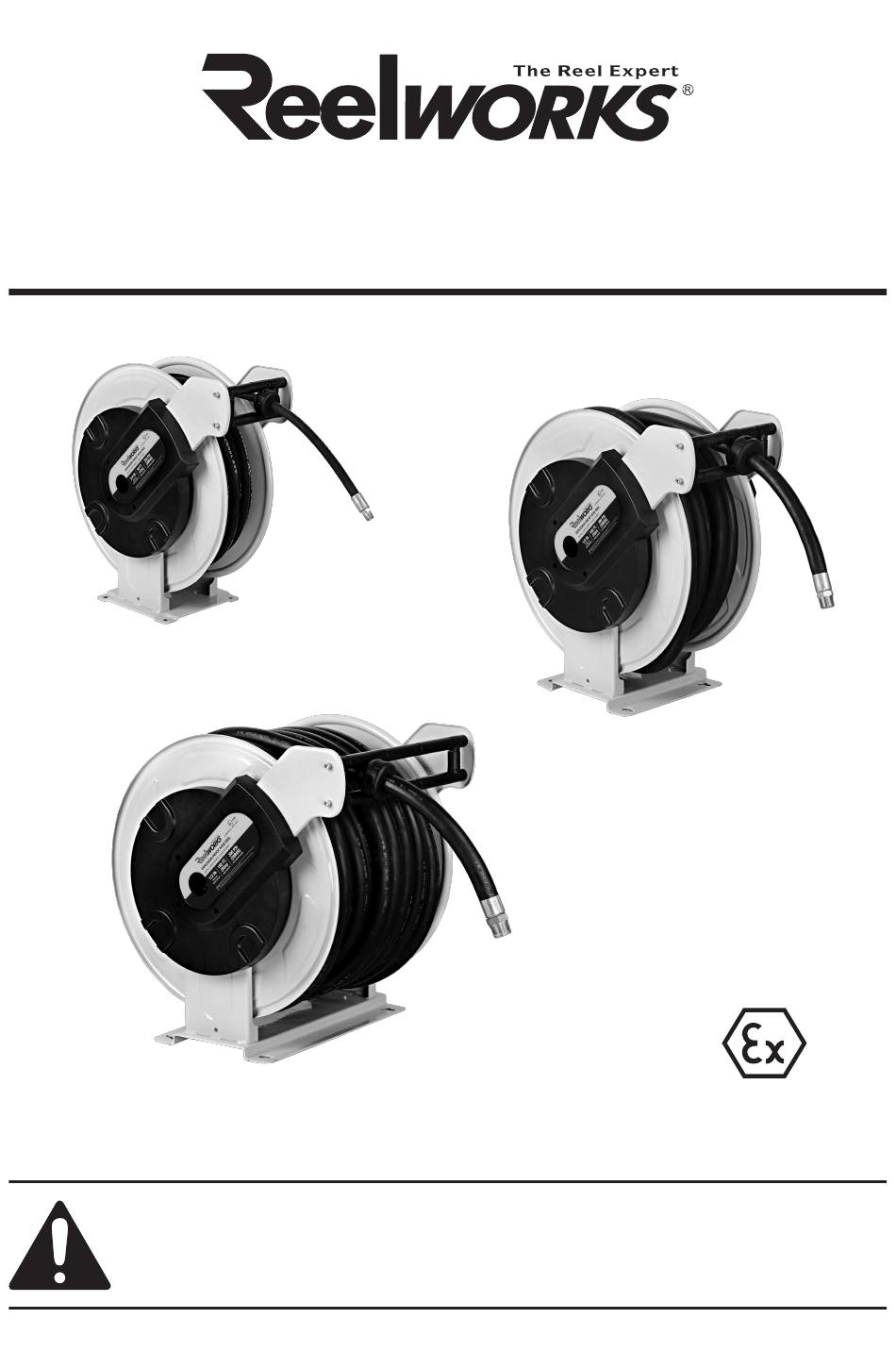

Industrial Explosion-Proof Hose Reel
Instruction Manual
HR211 Series
HR212 Series
II 2G
HR213 Series
Ex h IIB T4 Gb. Ta = -20°C to +60°C
Report No. (ExTR Free Reference Number): Sira R70209737A
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 02/09/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR211 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Reelworks HR211 Series

  • Page 1 Industrial Explosion-Proof Hose Reel Instruction Manual HR211 Series HR212 Series II 2G HR213 Series Ex h IIB T4 Gb. Ta = -20°C to +60°C Report No. (ExTR Free Reference Number): Sira R70209737A WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
  • Page 2: General Safety Regulations

    GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
  • Page 3 TECHNICAL DETAILS HR211 SERIES Hose Capacity Thread Item No. Max Pressure Standard I.D. Length 8.HR211.01 300Psi (20Bar) 3/8"/10mm 25m/82ft 8.HR211.10 BSPT 300Psi (20Bar) 3/8"/10mm 25m/82ft 8.HR211.06 3/8"/10mm 25m/82ft 2610Psi (180Bar) 8.HR211.15 25m/82ft BSPT 2610Psi (180Bar) 3/8"/10mm 8.HR211.20 4785Psi (330Bar) 3/8"/10mm 25m/82ft 8.HR211.19...
  • Page 4 TECHNICAL DETAILS HR212 SERIES Hose Capacity Item No. Thread Standard Max Pressure I.D. Length 8.HR212.01 300Psi (20Bar) 3/8"/10mm 30m/100ft 8.HR212.11 3/8"/10mm 30m/100ft BSPT 300Psi (20Bar) 8.HR212.08 3/8"/10mm 30m/100ft 2610Psi (180Bar) 8.HR212.18 BSPT 2610Psi (180Bar) 3/8"/10mm 30m/100ft 8.HR212.10 3/8"/10mm 30m/100ft 4785Psi (330Bar) 8.HR212.20 3/8"/10mm 30m/100ft...
  • Page 5 TECHNICAL DETAILS HR213 SERIES Hose Capacity Item No. Thread Standard Max Pressure I.D. Length 8.HR213.01 300Psi (20Bar) 1/2"/12.5mm 50m/165ft 8.HR213.07 BSPT 300Psi (20Bar) 1/2"/12.5mm 50m/165ft 8.HR213.06 1/2"/12.5mm 50m/165ft 2320psi (160Bar) 8.HR213.12 BSPT 2610Psi (180Bar) 1/2"/12.5mm 50m/165ft 8.HR213.02 300Psi (20Bar) 3/4"/19mm 40m/130ft 8.HR213.08 3/4"/19mm...
  • Page 6: Safety Precautions

    584 [23"] Ø530 [20.9"] 203 [8.0"] 218 [8.6"] Fig. 1.2 336 [14.4"] For HR212 590 [23.2"] Ø530 [20.9"] 372.5 [14.7"] 398 [15.7"] Fig. 1.3 506 [20"] For HR213 SAFETY PRECAUTIONS 1. Make sure incoming line pressure does not exceed rated operating pressure for your model hose reel.
  • Page 7 Apply to Apply to HR861/2861 series HR862/2862 series HR891/2161 series HR892/2162 series HR211 series HR212 series HR221 series HR222 series Fig. 2.1 Fig. 2.2 15.66" (398mm) Reel Mounting Template Please pay attention to the direction of the reel before installation.
  • Page 8 3.2 The reel is supplied with a hose guide roller bracket. The bracket position may be changed depending on the reel mounting position. Fig. 3.1 to Fig. 3.2 shows “Typical Mounting Positions”. If bracket position needs to be changed, do the following: (1) Pull out some hose and let reel latch.
  • Page 9: Operation

    Note: Final spring tension adjustment is accomplished by adding wraps of hose around the drum (to increase tension) or taking off wraps of hose (to decrease tension). Refer to: Adjustment of Spring Tension. Wall Floor Ceiling HR211 & HR212 Wall & Floor & Ceiling Fig.
  • Page 10: Limited Warranty

    6. Carefully release the drum latch, and slowly allow the hose to wind onto the reel. Note: Final spring adjustment is accomplished by adding or removing wraps of hose around the drum. (Details see spring tension adjustment). SPRING CANISTER WARNING If the rewind spring fails for any reason: For safety reasons, the manufacturer strongly recommends the replacement of the spring canister be carried out by a professional mechanic.
  • Page 11 EXPLODED AND PARTS LIST HR211 SERIES 30 10 11 36 33 26 16 43 44 45 Part No. Description Q’ty Part No. Description Q’ty Base Assembly Axle Sleeve Spring Locking Ring Screw Screw Screw Axle Sleeve Drum 1 Protection Cover...
  • Page 12 EXPLODED AND PARTS LIST HR212 SERIES 13 34 39 37 36 30 20 33 41 32 11 5 47 48 49 12 9 1 45 42 43 Part No. Description Q’ty Part No. Description Q’ty Base Assembly O-Ring Spring O-Ring Spring Drum Cover Axle Sleeve Locking Ring...
  • Page 13 EXPLODED AND PARTS LIST HR213 SERIES 37 36 30 20 6 33 41 47 48 49 1 45 18 29 Part No. Description Q’ty Part No. Description Q’ty Base Assembly O-Ring Spring O-Ring Spring Drum Cover Axle Sleeve Locking Ring Spring Core Screw Screw...
  • Page 16 Intradin (Shanghai) Machinery Co., Ltd. iti-fluid@intradinchina.com www.intradin.com Size: 145x210mm 157克铜版纸 REV 02/09/22...
