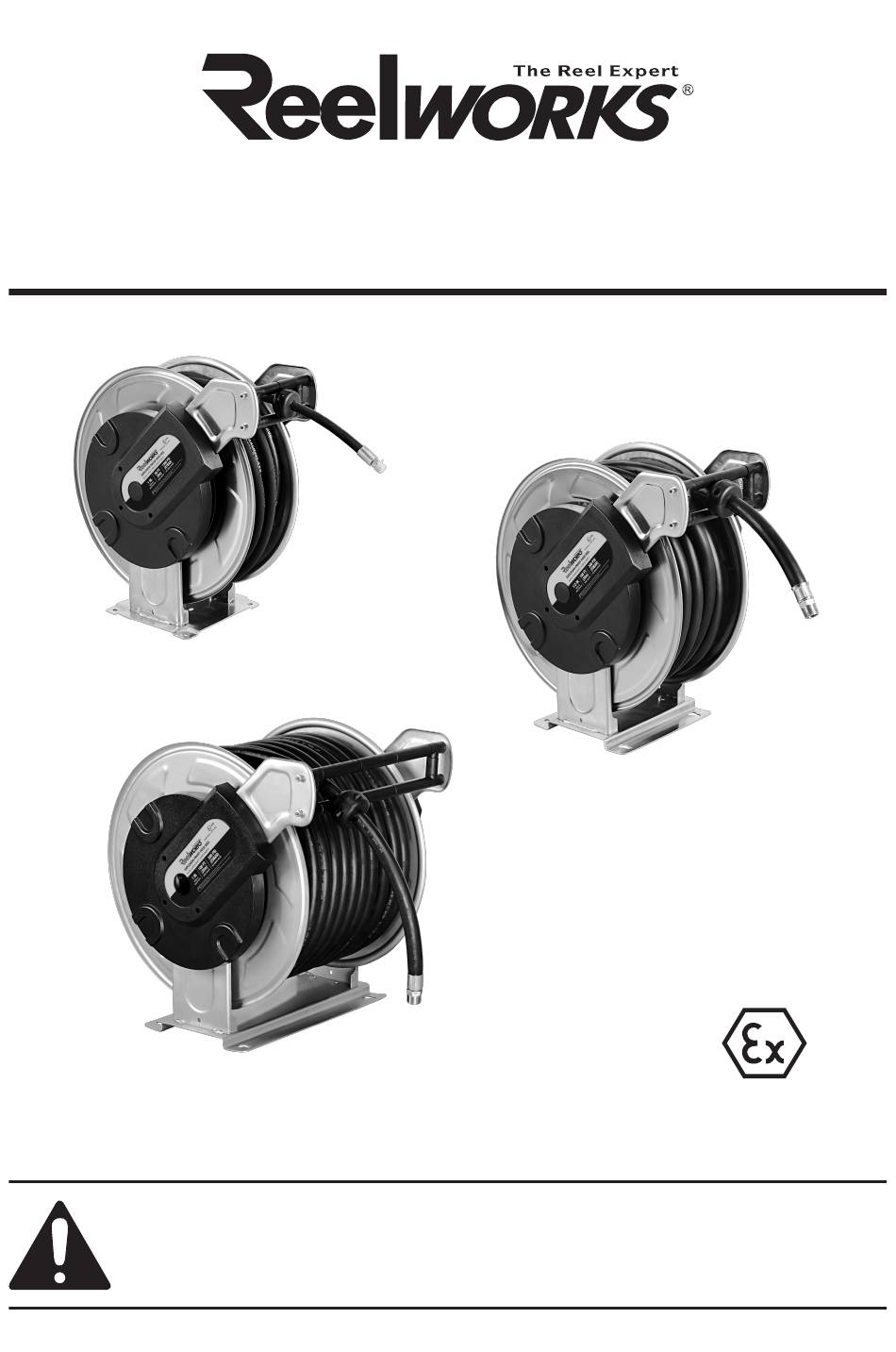

Industrial Explosion-Proof Hose Reel
Instruction Manual
HR221 Series
HR222 Series
II 2G
HR223 Series
Ex h IIB T4 Gb. Ta = -20°C to +60°C
Report No. (ExTR Free Reference Number): Sira R70209737A
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 02/09/22
Advertisement
Related Manuals for Reelworks HR221 Series
Summary of Contents for Reelworks HR221 Series
- Page 1 Industrial Explosion-Proof Hose Reel Instruction Manual HR221 Series HR222 Series II 2G HR223 Series Ex h IIB T4 Gb. Ta = -20°C to +60°C Report No. (ExTR Free Reference Number): Sira R70209737A WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-
Page 2: General Safety Regulations
GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. - Page 3 TECHNICAL DETAILS HR221 SERIES Hose Capacity Item No. Thread Standard Max Pressure I.D. Length 8.HR221.01 300Psi (20Bar) 3/8" /10mm 25m/82ft 8.HR221.12 3/8" /10mm 25m/82ft BSPT 300Psi (20Bar) 8.HR221.07 3/8" /10mm 25m/82ft 2610Psi (180Bar) 8.HR221.18 BSPT 2610Psi (180Bar) 3/8" /10mm 25m/82ft 8.HR221.11...
- Page 4 TECHNICAL DETAILS HR222 SERIES Hose Capacity Item No. Thread Standard Max Pressure I.D. Length 8.HR222.01 300Psi (20Bar) 3/8"/10mm 30m/100ft 8.HR222.11 3/8"/10mm 30m/100ft BSPT 300Psi (20Bar) 8.HR222.07 3/8"/10mm 30m/100ft 2610Psi (180Bar) 8.HR222.17 BSPT 2610Psi (180Bar) 3/8"/10mm 30m/100ft 8.HR222.10 4785Psi (330Bar) 3/8"/10mm 30m/100ft 8.HR222.19 3/8"/10mm...
- Page 5 TECHNICAL DETAILS HR223 SERIES Hose Capacity Item No. Thread Standard Max Pressure I.D. Length 8.HR223.01 300Psi (20Bar) 3/4"/19mm 40m/130ft 8.HR223.05 BSPT 300Psi (20Bar) 3/4"/19mm 40m/130ft 8.HR223.02 1"/25mm 30m/100ft 300Psi (20Bar) 8.HR223.06 BSPT 300Psi (20Bar) 1"/25mm 30m/100ft 8.HR223.04 2320Psi (160Bar) 1/2"/12.5mm 40m/130ft 8.HR223.08 1/2"/12.5mm...
-
Page 6: Safety Precautions
584 [23"] Ø530 [20.9"] 203 [8.0"] 218 [8.6"] Fig. 1.2 336 [14.4"] For HR222 590 [23.2"] Ø530 [20.9"] 372.5 [14.7"] 398 [15.7"] Fig. 1.3 506 [20"] For HR223 SAFETY PRECAUTIONS 1. Make sure incoming line pressure does not exceed rated operating pressure for your model hose reel. - Page 7 Apply to Apply to HR861/2861 series HR862/2862 series HR891/2161 series HR892/2162 series HR211 series HR212 series HR221 series HR222 series Fig. 2.1 Fig. 2.2 15.66" (398mm) Reel Mounting Template Please pay attention to the direction of the reel before installation. Apply to...
- Page 8 3.2 The reel is supplied with a hose guide roller bracket. The bracket position may be changed depending on the reel mounting position. Figure 2.1 to Figure 2.2 shows “Typical Mounting Positions”. If bracket position needs to be changed, do the following: (1) Pull out some hose and let reel latch.
-
Page 9: Operation
OPERATION 1. Check reel for correct operation by slowly pulling out the hose. A “clicking” noise will be heard every half revolution of the drum. 2. To latch the reel, pull out the hose and allow it to retract after hearing the first second or third “... - Page 10 EXPLODED AND PARTS LIST HR221 SERIES Part No. Description Q’ty Part No. Description Q’ty Base Assembly Axle Sleeve Spring Locking Ring Screw Screw Screw Axle Sleeve Drum 1 Protection Cover Support Plate 1 Spring Core Bumper Block Screw Thread protector...
- Page 11 EXPLODED AND PARTS LIST HR222 ERIES 39 37 36 47 48 1 45 42 43 Part No. Description Q’ty Part No. Description Q’ty Base Assembly O-Ring Spring O-Ring Spring Drum Cover Axle Sleeve Locking Ring Spring Core Screw Screw Screw Protection Cover Drum 1 Spring Core...
- Page 12 EXPLODED AND PARTS LIST HR223 SERIES 37 36 30 20 6 33 41 47 48 49 1 45 18 29 Part No. Description Q’ty Part No. Description Q’ty Base Assembly O-Ring Spring O-Ring Spring Drum Cover Axle Sleeve Locking Ring Spring Core Screw Screw...
