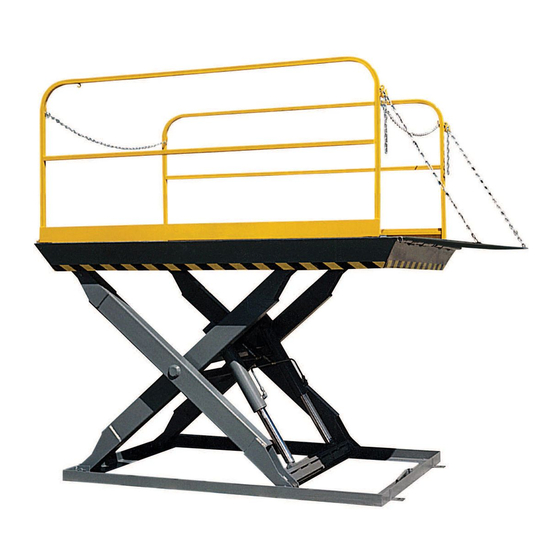

RITE-HITE LRL Installation Manual

RITE-HITE LRL Installation Manual

Elevating dock lift

Advertisement

Quick Links

This Manual Covers Dock Lifts Built After Serial Numbers:
07-LC450001C and up
PRINTED IN U.S.A.
RITE-HITE
PRINT SHOP
LRL
Elevating Dock Lift
Installation Manual
MADE IN U.S.A.
PUBLICATION NO. 1239
RITE-HITE PART NO. 0128435
JULY 2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the LRL and is the answer not in the manual?

Questions and answers

Summary of Contents for RITE-HITE LRL

  • Page 1 Elevating Dock Lift Installation Manual MADE IN U.S.A. This Manual Covers Dock Lifts Built After Serial Numbers: 07-LC450001C and up PUBLICATION NO. 1239 PRINTED IN U.S.A. RITE-HITE PART NO. 0128435 RITE-HITE PRINT SHOP JULY 2008...
  • Page 2 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual NOTES Pub. No. 1239 - July 2008...
  • Page 3 ......7 IMPORTANT Read and understand contents of this manual prior to installation or operation of this equipment. ® For best results, have this product serviced by your authorized RITE-HITE representative. NOTICE TO USER ®...
  • Page 4 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual SAFETY WARNINGS When working with electrical or electronic controls, make sure that the power source has been locked out and tagged according to OSHA regulations and approved local electrical codes. FIGURE 1 - LOCKOUT/TAGOUT...
  • Page 5 • Locking out and tagging out the main power source, as shown under Safety Warnings on preceding page. Inspect the LRL monthly to ensure that there are no broken or worn parts which could cause injury to personnel or damage to the equipment.
  • Page 6 RITE-HITE LRL Series Elevating Dock Lift Installation Manual SAFETY DEVICES Never be under the LRL Series Elevating Dock Lift • Post warnings and barricades at dock level platform or lip without: and at drive level to indicate that work is being done around and under the lift table.
  • Page 7 PIT DETAIL FOR LRL WITH ONE LIP ON ROLLING END SIZE: 72” x 96” TO 96” x 120” CAPACITY: 5, 6, 8 & 10,000 LBS CONTACT RITE-HITE APPLICATIONS IF YOUR LRL DOES NOT MEET THESE REQUIREMENTS! NOTES: 4. LIP RECESS (IF REQUIRED) 1.
  • Page 8 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual INSTALLATION INSTRUCTIONS - CONT. PREPARATION PRIOR TO INSTALLATION 1. Elevating dock lift is shipped equipped with lifting lugs. DO NOT remove until lift is resting in pit. (Lifting lugs prevent the lift table from opening when the lift table is Make sure that the lift power has been locked out lifted into place.)
  • Page 9 WIRING IF APPLICABLE UNIT IN PIT FIGURE 4 - INSTALLATION INTO PIT Never be under the LRL platform or lip without: • Engaging the Maintenance Strut. • Turning off power to the control box. • Locking out and tagging out the main power source, as shown under Safety Warnings.
  • Page 10 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual INSTALLATION INSTRUCTIONS - CONT. 2 PLACES 1” 1/4” 1/4” 1” 4 PLACES 1/4” 1” LEG ROLLER O 5/8” 4” 2” 32” 2” 6-1/2” 4” BASE FRAME SHIM DETAIL ROLLER PATH SHIM DETAIL...
  • Page 11 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual INSTALLATION INSTRUCTIONS - CONT. FRAME LAG FRAME TO FLOOR USING 1/2" X 5" LG. CONCRETE ANCHOR BOLTS 4 PLACES TOP VIEW PLATFORM REMOVED FIGURE 6 - ANCHOR INSTALLATION 6. Shim dock lift so it is level with the fl oor. Install shims 12.
  • Page 12 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual INSTALLATION INSTRUCTIONS - CONT. SHIM AND MOUNTING INSTALLATION WITHOUT ELECTRICITY 1. Square dock lift in pit area with spaces equal on all sides. 2. Determine how much shim thickness will be required to make the lift level with the fl...
  • Page 13 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual INSTALLATION INSTRUCTIONS - CONT. To Crane FIGURE 8 - CRANE LIFTING ONCE ELECTRICITY HAS BEEN RESTORED 1. Verify that powerunit has been electrically connected and hydraulic hoses have also been connected properly.
  • Page 14 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual NOTES Pub. No. 1239 - July 2008...
  • Page 15 ® RITE-HITE LRL Series Elevating Dock Lift Installation Manual NOTES Pub. No. 1239 - July 2008...
  • Page 16 Rite-Hite in writing. ® In the event of any defects covered by this warranty, Rite-Hite will remedy such defects by repairing or replacing any defective equipment or parts, bearing all the costs for parts, labor, and transportation. This shall be the exclusive remedy for all claims whether based on contract, negligence, or strict liability.
