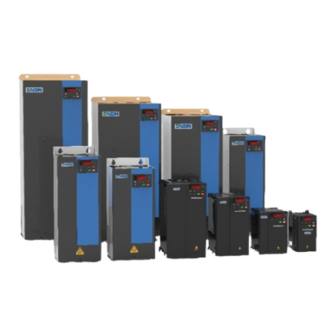

EACON EC590 Series User Manual

Ac drive
Hide thumbs Also See for EC590 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Professional AC Drive Manufacturer
Edition：Version 1.0 in 2022
Copyright, subject to change without notice.
ZHEJIANG EACN ELECTRONIC TECHNOLOGY CO.,LTD
Address:No.1 Jinhe Road, Qinshan Street, Haiyan County, Jiaxing City, Zhejiang Province
Service line: 86-400-166-0573
Website: www.eacn.cn
E-mail: overseas@eacon.cc
Professional AC Drive Manufacturer
EC590
User Manual
AC Drive
V1.0
