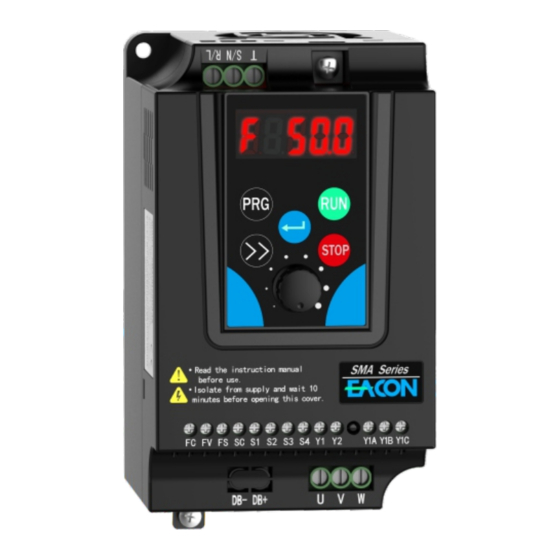

Professional AC Drive Manufacturer
SMA
Series AC Drive
Quick Guide
V1.0
Electronic instruction

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMA Series and is the answer not in the manual?

Questions and answers

Related Manuals for EACON SMA Series

Summary of Contents for EACON SMA Series

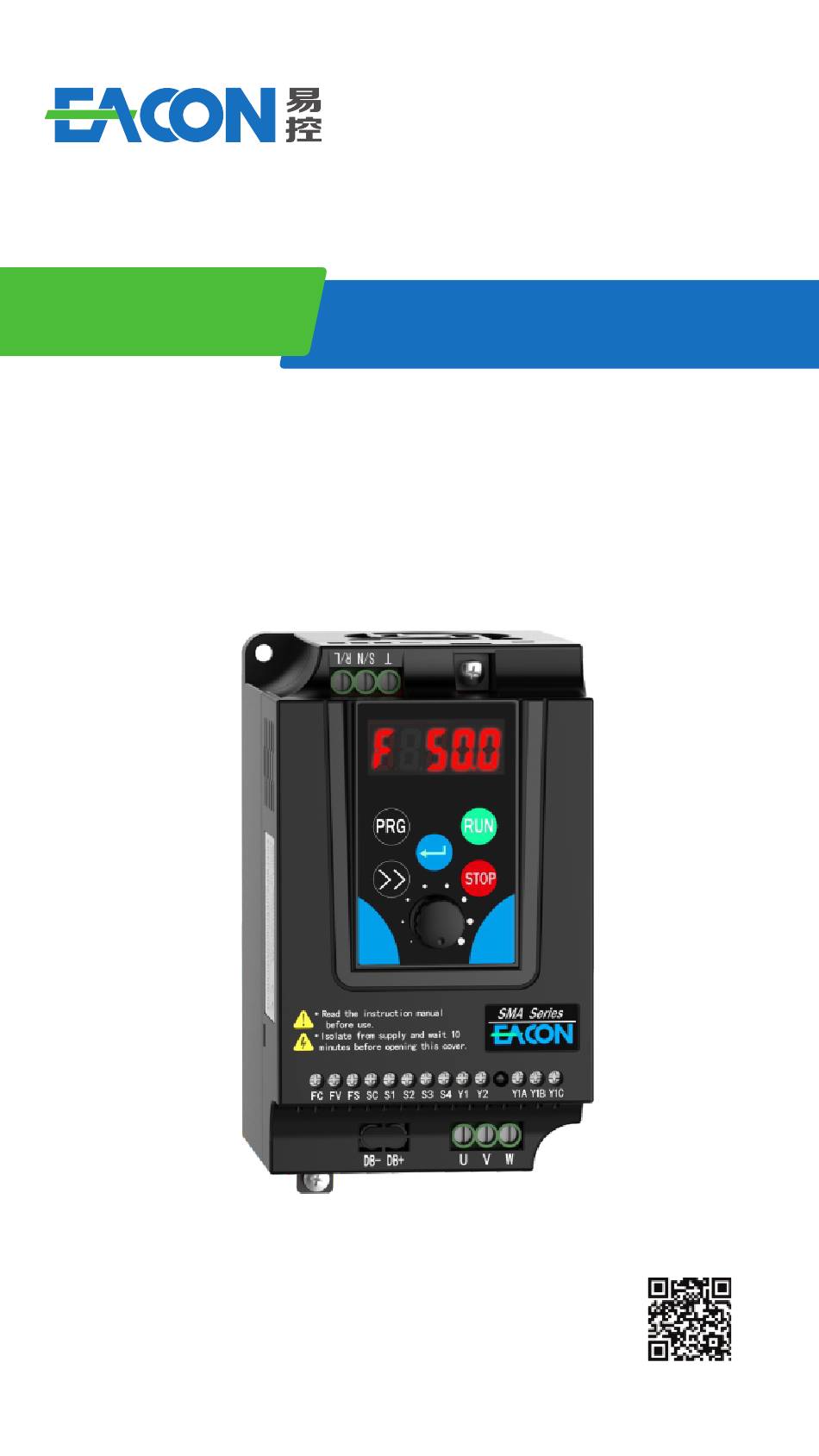

  • Page 1 Professional AC Drive Manufacturer Series AC Drive Quick Guide V1.0 Electronic instruction...
  • Page 2 Quick Guide of SMA 1.Preface Thank you for choosing the SMA series of economic AC drive. Before using the AC drive, please read the instructions care- fully so that you can install and use the machine correctly, to give full play to its functions and ensure safety. Please save this ins- truction perpetually, for later maintenance and overhaul.
  • Page 3 2.Standard specification of products 2.1 Nameplate description of SMA series Model： 0D75G Product structure version 380V Voltage level, 43 means three-phase 380V AC Drive capacity, 0D75 means 0.75KW Series name 2.2 General specification of products Product name Control mode SVPM Input power supply 380Vpower: 330～440;...

  • Page 4: Storage And Installation

    Automatic voltage regulation (AVR),deceleration stop or Other functions free stop, DC brake, carrier adjustable, up to 10 KHz,etc. Overload Electronic relay protects the AC drive(constant torque protection 150% per minute, fan 120% per minute). FUSE protection The motor stops when FUSE fusing. 220Vline：DC voltage >400V;...

  • Page 5: Installation Space And Direction

    3.3 Installation space and direction ●In terms of convenience for cooling and maintenance, there must be enough space around the AC drive, as shown in the figure: ●In order to obtain the good cooling effect, the AC drive must be installed vertically, and ensure the smooth flow of air.
  • Page 6 SMA20 Size Product Specification Output Applicable Input Power Type Farme Current Motor Voltage (KW) (KW) SMA00D4G23A SMA0D75G23A 0.75 0.75 SMA10 Single/three-phase 220V SMA01D5G23A SMA02D2G23A SMA04D0G23A 17.0 SMA20 Three-phase 220V SMA05D5G23A 20.0 SMA0D75G43A 0.75 0.75 SMA10 SMA01D5G43A SMA02D2G43A Three-phase 380V SMA04D0G43A 11.0 14.0 SMA05D5G43A...
  • Page 7 4.Basic wiring diagram of AC drive 4.1 Wiring part 　　It is divided into main circuit and control circuit. The user can lift the lid of the case, and then the main circuit terminal and the control circuit terminal can been seen. The user must connect accurately according to the following diagram.
  • Page 8 4.3 Description of control circuit terminal Description Factory setting Terminal +10V Power VCC +10V/+24V can be provided，and P2-23 can choose to switch Analog input terminal 1 Input voltage Input voltage Analog input terminal 2 Voltage and current switching，and P2-12 can choose to switch AC drive grounding GND common terminal...

  • Page 9: Function Code Table

    5.2 Indicator description Description Indicator Status Forward rotation status of the motor Reverse rotation status of the motor Frequency interface Current interface Speed interface 5.3 Description of operating examples Display Explanation Output frequency Output current Output voltage EDC voltage Temperature Set frequency 0.0 6.Function Code Table...
  • Page 10 0～1 Stopping 0: Ramp to stop P0-06 0006H mode 1: Coast to stop 0～1 Rotation P0-07 0：Forward 0007H direction 1：Reverse Carrier 1.0～10.0 Model P0-08 0008H frequency dependent 1-10K Set to scale 0～maximum frequency Motor rated P0-09 Set the rated frequency of 50.0Hz 0009H frequency...
  • Page 11 P1 V/F control parameters gropu Function Parameter Setting Range Default Address Code Name 0～4 P1-00 V/F Selection 0100H Multi-point P1-01 0.0～P1-03 1.0Hz 0101H frequency(F1) Multi-point V/F voltage P1-02 0.0～P1-04 3.0% 0102H (V1) Multi-point 0：Linear P1-03 P1-01～P1-05 10.0Hz 0103H 1：Set p1-0～ frequency(F2) p1-10 parame- ters to obtain...
  • Page 12 P2 Terminal function group Function Parameter Setting Range Default Address Code Name S1 input terminal P2-00 0200H function selection 0～14 S2 input 0： No function terminal P2-01 0201H 1： Forward RUN(FWD) function 2： Reverse RUN(REV) selection 3： Theree-Wire control 4： Forward JOG(FJOG) S3 input 5：...
  • Page 13 0%～200.0% AI2 gain Gain of external analog in- P2-13 100.0% 020DH put adjusted as a percentage -100%～100% Offset of external analog 0.0% 020EH P2-14 AI2 offset input adjusted as a percen- tage 0.00～10.00s AI2 filter Filtering time of external P2-15 0.10s 020FH time...
  • Page 14 P3 Axxiliary function group Function Parameter Setting Range Default Address Code Name 0～2 0：No function P3-00 AVR function 0300H 1：Deceleration without AVR 2：AVR in the whole process 0～1 0：no change 1：change,detect radiator Variable temperature, then halve car- P3-01 carrier 0301H rier frequency for above 75 function degrees, and recover carrier...
  • Page 15 0～100% Cut-off Then compensation cut-off frequency frequency is given according P3-06 0306H of torque to the percentage of the ra- compensation ted frequency of the motor. 0～10% The method of increasing the output frequency of AC drive by proportional to the motor Differential P3-07 0.0%...
  • Page 16 Read-only Running time 0406H P4-06 Total cumulative running time Read-only Running time 0407H P4-07 Total cumulative running time Read-only Historical 0408H P4-08 1st fault type fault 1 Read-only Historical P4-09 0409H 2nd fault type fault 2 Read-only Historical P4-10 040AH 3rd fault type fault 3 Read-only...
  • Page 17 Upper limit P5-08 0～109% 100% 0508H of integral Output 0.0～2.5s P5-09 0.0s 0509H filter time 0.0～P5-02Mpa Datum of Set the pressure value of dormancy P5-10 0.30Mpa 050AH the main pump to enter dor- pressure mancy Datum 0.0～3600.0s duration of Feedback value > duration P5-11 60.0s 050BH...
  • Page 18 Communi- cation P6-04 0～0.500s 0.000s 0604H response delay Communi- cation P6-05 0.1～100.0s 1.0s 0605H timeout failure time Transmission 0～1 response 0：Write response P6-06 0606H processing 1：Write no response P7 Multi-frequency parameter group Function Parameter Setting Range Address Default Code Name Multi- P7-00 0.00Hz...
  • Page 19 Module Read-only PU-08 0℃ 2118H temperature PU-09 2119H Read-only ～ Reserved ～ PU-12 211CH PID setting Read-only PU-13 0.0% 211DH Read-only PU-14 0.0% 211EH PID feedback Input Read-only terminal X PU-15 211FH on state Output Read-only PU-16 terminal Y 2120H on state Anolog AI1 Read-only...
  • Page 20 7.Fault information and description Fault Description Name display The output is short and the current Output short is too large. circuit The DC voltage of the main circuit Over-voltage exceeds the OU value The DC voltage of the main circuit is Under-voltage less than LU value The output value of the AC drive exc-...
  • Page 21 Setting range:0-Maximum frequency 2001H Communication 2002H Reserved frequency 2003H Reserved setting value 2004H Reserved Communication Setting range:0-100.0% AO1 output 2005H value Monitor command Address Data meanings instruction characte- function definition ristics instruction BIT0 Running BIT1 Reverse Running BIT2 Ready AC drive BIT3 Fault operation...

  • Page 22: Warranty Service

    9.Warranty Service...
  • Page 23 Professional AC Drive Manufacturer Edition：Version 1.0 in 2020 Copyright, subject to change without notice. ZHEJIANG EACN ELECTRONIC TECHNOLOGY CO.,LTD Address:No.1 Jinhe Road, Qinshan Street, Haiyan County, Jiaxing City, Zhejiang Province Service line: 86-400-166-0573 Website: www.eacn.cn E-mail: overseas@eacon.cc...
