.53 [13.5]
n
1.24 [31.5]
M25x.75
1.093-32 UN - 2A
5-PHASE MOTOR PINOUT
PIN 3 = +5Vdc
PIN13 = COMMON
PIN 8 = FAR LIMIT
PIN 12 = NEAR LIMIT
PIN 15 = MOTOR 1
PIN 5 = MOTOR 2
PIN 10 = MOTOR 3
PIN 4 = MOTOR 4
PIN 14 = MOTOR 5
15 PIN HIGH DENSITY
3.31 [84.1]
.80 [20.3]
5.16 [131.0]
4.44 [112.6]
USED ON:
MATERIAL:
FINISH:
D-SUB
CHAMFER ALL THREADS 30
TO ROOT DIAMETER
.38 [9.5]
.75 [19.1]
(4) x
4-40 UNC - 2B
.32 [8.3]
n
1.60 [40.6]
+
.000
n
1.312
- .001
.72 [18.4]
P/N SUFFIX DEFINITION
UNLESS OTHERWISE SPECIFIED
-1 CONVERSION COATING
DIMENSIONS ARE IN INCHES AND
-2 PAINTING
INCLUDE CHEMICALLY APPLIED
-3 MARKING
OR PLATED FINISHES
-R REWORK
TOLERANCES AS FOLLOWS
SCALE:
1:1
`
DEC. .XXX
.005
`.010
R. PODLENA
DEC. .XX
DR:
`1
64
FRACT.
/
`30
CH:
P. BONAFEDE
ANGLES
'
CONCENTRICITY
.003 TIR
APP:
P. BONAFEDE
BREAK ALL SHARP EDGES
DATE DR:
.005 MIN. .010 MAX.
~
32
MAX. SURF. ROUGHNESS:
DO NOT SCALE DRAWING
1.05 [26.8]
2.02 [51.3]
THE CONTENTS OF THIS
DOCUMENT ARE PROPRIETARY
TO NAVITAR, ITS USE IS
AUTHORIZED ONLY FOR
RESPONDING TO REQUEST FOR
QUOTATION OR PERFORMANCE
OF WORK FOR NAVITAR
0.0
inch
1.0

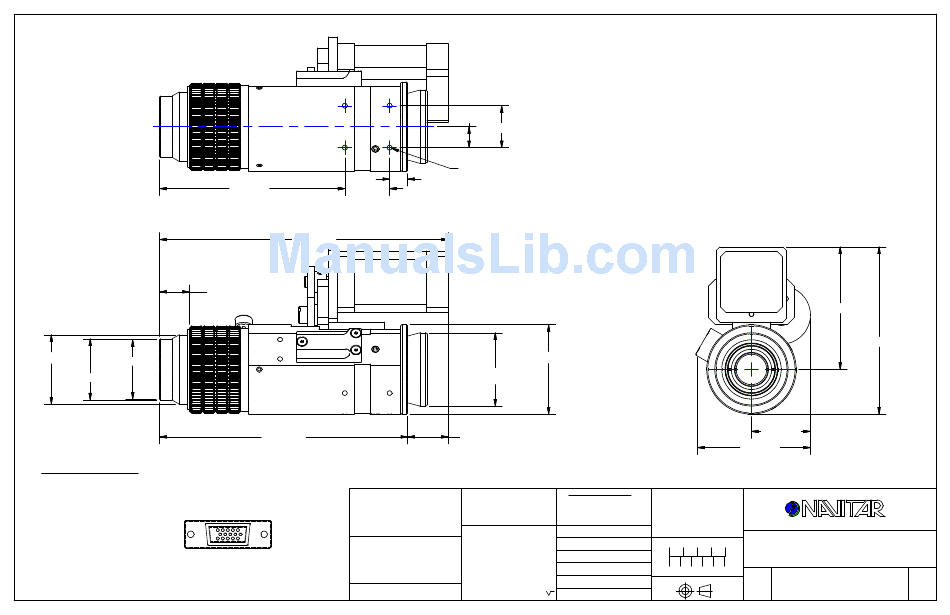

MOTORIZED (5PH) 6x ZOOM w/2 POS. LS
(HE) & MANUAL 12mm FINE FOCUS
0.0
mm
25.0
SIZE
8/18/2003
B
2.19 [55.7]
2.99 [76.0]
OUTLINE
ROCHESTER, NEW YORK
REV
1-62521
A
SHEET
1
OF
1
