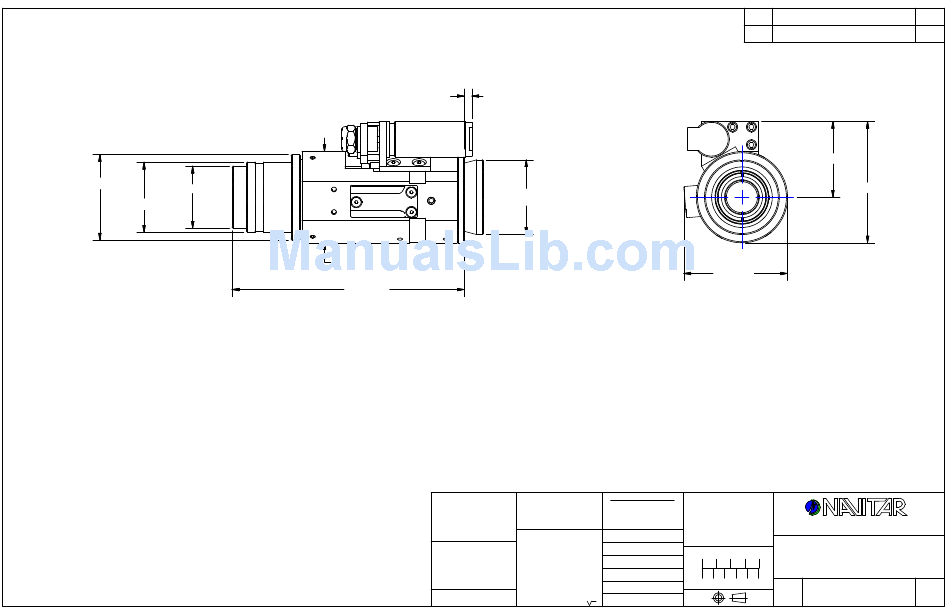

Navitar 1-62605 Dimensional Drawing

n
1.50 [38.1]
1.093-32 UN - 2A
n
1.23 [31.3]

MOTOR WIRE CONFIGURATION

PIN
1 MOTOR A+
3 +5Vdc
6 MOTOR B+
7 MOTOR A-
8 FAR LIMIT
11 MOTOR B-
12 NEAR LIMIT
13 COMMON
.14 [3.4]
n
1.312
n
1.60 [40.6]
4.07 [103.4]
USED ON:

MATERIAL:

FINISH:

CHAMFER ALL THREADS

~
30 TO ROOT DIAM.
+ .000
- .001

P/N SUFFIX DEFINITION

THE CONTENTS OF THIS
UNLESS OTHERWISE
DOCUMENT ARE PROPRIETARY
SPECIFIED
-1 CONVERSION COATING
TO NAVITAR, ITS USE IS
DIMENSIONS ARE IN INCHES -2 PAINTING
AUTHORIZED ONLY FOR
AND INCLUDE CHEMICALLY
-3 MARKING
RESPONDING TO REQUEST
APPLIED OR PLATED FINISHES
-R REWORK

TOLERANCES:

1:1

SCALE:

PERFORMANCE OF WORK FOR
`
DEC. .XXX .005
`
DR.: R. PODLENA
DEC. .XX .010
`
FRACT. 1/64 CH.: P. BONAFEDE
`
ANGLES 30'
APP.:
CONCENTRICITY .003 TIR
0.0

BREAK ALL SHARP EDGES

8/18/2003
DATE DR.:
.005 MIN. .010 MAX
MAX. SURF. ROUGHNESS 32
DO NOT SCALE DRAWING

REV CHANGE RECORD AND DATE CH

A
RELEASE
1.33 [33.8]
2.13 [54.2]
1.82 [46.2]
OUTLINE
ROCHESTER, NEW YORK
FOR QUOTATION OR
NAVITAR
MOTORIZED (STEPPER) 6x w/2 POS
0.0 inch 1.0
LS (HE)
SIZE
mm 25.0
1-62605
B
1
SHEET OF
09/04/03
REV
A
1
