Apollo orbis IS Quick Start Manual

Orbis IS Base
Orbis IS Adaptor
Distribuição: Segurança Industrial Equipamentos
Fone/Fax: (41) 4063-9687 ou 3287-1364
cml@segind.com.br - segindbr@hotmail.com
www.segind.com.br
REF.: SI: ORBMB-50018
®
REF.: SI: ORB-IS-ADAP
installing orbis IS
Orbis IS has been designed to make installation fast

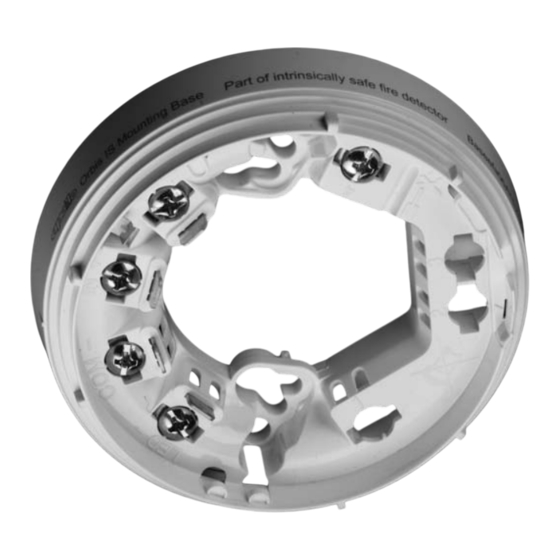

and simple. Fig 4 shows the TimeSaver Base as it is
seen from the installer's point of view.
The E-Z fit fixing holes are shaped to allow a simple
three-step mounting procedure:
• Fit two screws to the mounting box or surface
• Place the Orbis IS base over the screws and slide
home
• Tighten the screws
The base offers three fixing centres at 51, 60 and 72mm.
A guide on the base interior indicates the length of
cable to be stripped. Five terminals are provided for
the cables, four being grouped together for ease of
termination.
The terminals are:
• positive IN
• positive OUT
• negative IN and OUT (common terminal)
• remote LED negative connection
• functional earth (screen)
The terminal screws are captive screws and will not
fall out of the terminals. The base is supplied with the
screws unscrewed in order to avoid unnecessary work
for the installer.
The end-of-line resistor should be connected between
the OUT+ and COM– terminals.
If it is required that all detectors be fitted with their LEDs
facing the same direction the bases must be fitted to the
ceiling observing the marking on the exterior which
indicates the position of the LED.
The bases may be connected as shown in Fig 5 where
remote LEDs, if required, are connected to the associated
base.
Fig 6 shows how to connect one remote LED to more
than one base so that an alarm in any of the detectors
connected will switch the remote LED.
