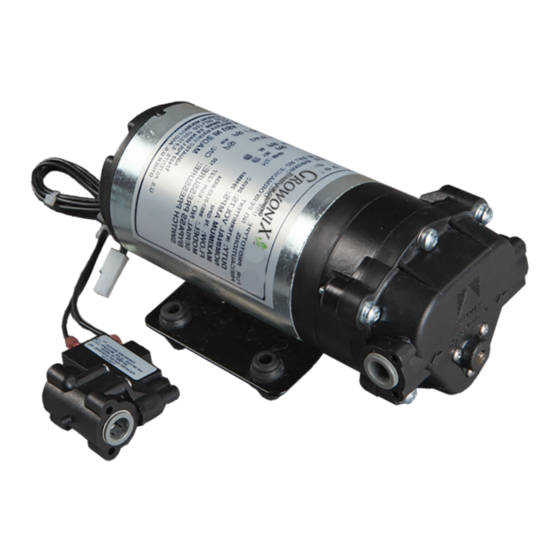

- Page 1 BP-1530 Booster Pump Owners Manual w w w . g r o w o n i x . c o m Built in the U.S.A.
- Page 2 RATE. HIGH PRESSURE CUTOFF—AUTOMATICALLY SHUTS THE PUMP OFF WHEN USED WITH A SOLENOID VALVE, BALL VALVE, FLOAT VALVE, OR WATERING WAND ETC... WHY USE A GROWONIX BP-1530? To raise the water pressure on a water filter. • To supply a misting system.
- Page 3 READ ENTIRE MANUAL THOROUGHLY BEFORE INSTALLING THIS HIGH PRESSURE-BOOSTING PUMP. ABOUT The BP-1530 Booster Pump is designed for use with all GrowoniX water filters 600 GPD and under. • The pump is designed to boost low water pressure to optimal pressure.
- Page 4 The motor is available in 110 and 50/60 hertz 1 phase 2A. Please ensure that the electrical circuit supplying the system is compatible with the requirements of the BP-1530 pump. Each BP-1530 pump is equipped with an 5” electrical cord.
- Page 5 COMPONENT DIAGRAM 1. Motor 2. Pump Input 3. Pump Output 4. Adjustable Internal Bypass 5. Pressure Switch 6. Power Transformer READ ENTIRE MANUAL THOROUGHLY BEFORE INSTALLING THIS HIGH PRESSURE-BOOSTING PUMP. Built in the U.S.A. Built in the U.S.A.
- Page 6 SETUP INSTRUCTIONS Input Input Output Make note of direction of flow prior to Connect the 3/8” feed water tubing to installation. the pump input. Output Insert another piece of 3/8” tubing into the pump output. Insert the 3/8” pump output tubing into the RO filter input.
- Page 7 ADJUSTABLE INTERNAL BYPASS The BP-1530 Booster Pump is equipped with an adjustable internal bypass valve, which controls the maximum operating pressure. The valve is located in the center of the triangular cap on the top of the pump head, between the input and output ports. To adjust, insert the included 1/16” Allen Wrench into the chrome adjustment screw.
- Page 8 GROWONIX SYSTEM WARRANTY For a period of one year from the date of original purchase, we will replace or repair any part of the GrowoniX product that we find to be defective in operation due to faulty materials or workmanship with the exception of the replaceable filters and membranes.
