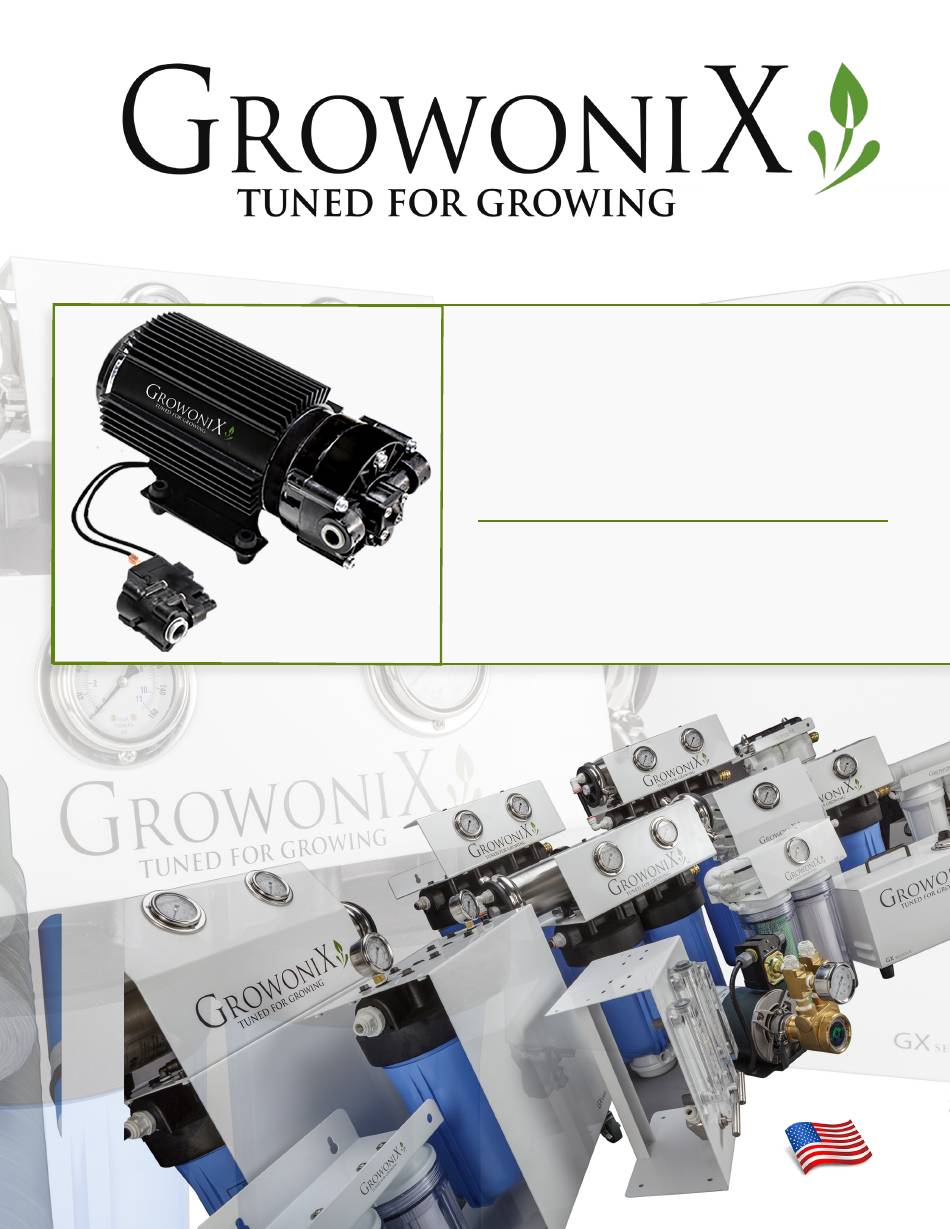

- Page 1 BP-1000 Booster Pump Owners Manual w w w . g r o w o n i x . c o m Built in the U.S.A. www.growonix.com toll free 888.406.8521, office 818.510.0264, sales@growonix.com...
-
Page 2: Our Mission
Traditional RO systems have waste ratios of approximately 4:1, which means there are 4 gallons of waste water produced for every 1 gallon of purified water. GrowoniX line of water filters achieve waste ratios of 2:1 with all 200-400 GPD systems, and an astounding 1:1 ratio with the 600-1000 GPD systems. - Page 3 Needs zero psi of incoming water pressure to produce the full flow rate. High pressure cutoff—automatically shuts the pump off when used with a solenoid valve, ball valve, float valve, or watering wand etc... WHY USE A GROWONIX BP-1000 ? • To raise the water pressure on any 600-1000 GPD water filter.
-
Page 4: Basic Information
READ ENTIRE MANUAL THOROUGHLY BEFORE INSTALLING THIS HIGH PRESSURE-BOOSTING PUMP. ABOUT The BP-1000 Booster Pump is designed for use with all GrowoniX water filters 600-1000 GPD. • The pump is designed to boost low water pressure to optimal pressure. •... -
Page 5: Plumbing And Electrical
The motor is available in 110 and 50/60 hertz 1 phase 3A. Please ensure that the electrical circuit supplying the system is compatible with the requirements of the BP-1000 pump. Each BP-1000 pump is equipped with an 5” electrical cord. -
Page 6: Component Diagram
COMPONENT DIAGRAM 1. M otor 2. P nlet 3. P utlet 4. A djustAble nternAl yPAss 5. H 6. P ressure wItcH 7. P ower rAnsforMer READ ENTIRE MANUAL THOROUGHLY BEFORE INSTALLING THIS PRESSURE-BOOSTING PUMP... - Page 7 ADDING THE HEAT SINK Snap the Heat Sink into place. Built in the U.S.A.
- Page 8 INTSTALLING THE PRESSURE SWITCH GX1000 EX800 EX1000 Install the pressure switch on the product water line (RO out tubing) after the auto-shutoff valve. The switch can be installed in any direction.
-
Page 9: Plumbing Instructions
PLUMBING INSTRUCTIONS Input Input Output Connect feed water tubing to pump input. Make note of direction of flow prior to installation. Output Insert output tubing into pump output. Insert output tubing into RO filter input. Built in the U.S.A. - Page 10 ADJUSTABLE INTERNAL BYPASS The BP-1000 Booster Pump is equipped with an adjustable internal bypass valve, which controls the maximum operating pressure. The valve is located in the center of the triangular cap on the top of the pump head, between the input and output ports.
-
Page 11: General Conditions
GROWONIX SYSTEM WARRANTY For a period of one year from the date of original purchase, we will replace or repair any part of the GrowoniX product that we find to be defective in operation due to faulty materials or workmanship with the exception of the replaceable filters and membranes. - Page 12 BP-1000 Booster Pump Owners Manual w w w . g r o w o n i x . c o m Built in the U.S.A.
