- Page 1 Salzburger Master Flaker With gear drive Owner’s Manual and Users Guide For a healthy breakfast...
-
Page 2: Table Of Contents
Contents Control Elements of the „Salzburger Master Flaker with Gear Drive” ....4 Suitable site ....................5 Before first use ....................... 5 Types of Grain ......................5 Gear drive ....................... 5 Suitable Types of Grain ..................5 Flaking Process ....................6 Adjusting the Degree of Fineness ................ - Page 3 We are very pleased that you have bought our flaker and trust that you will be very successful in making healthy wholemeal meals With your “Salzburger Master Flaker” you have purchased a top-quality household appliance which has been designed and manufactured according to the latest state of the art technology.
-
Page 4: Control Elements Of The „Salzburger Master Flaker With Gear Drive

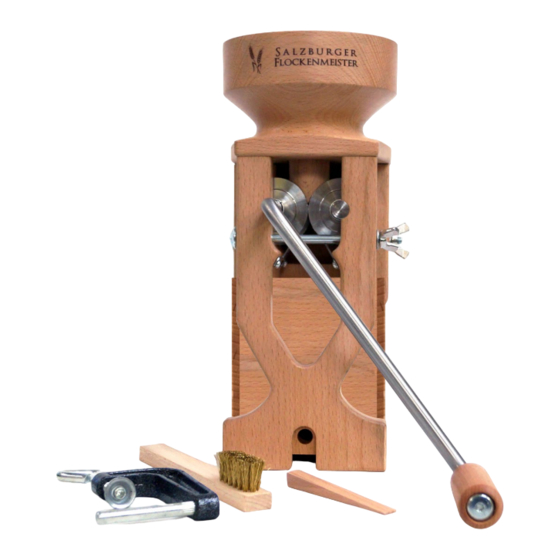

Control Elements of the „Salzburger Master Flaker with Gear Drive” Removable Funnel Gear Drive with cover Rollers Fastening Wiper screws for adjusting Hand crank Wooden Container Cleaning brush Wooden wedge Clamp For removing the crank Please study the user’s guide and the safety instructions carefully... -
Page 5: Suitable Site
Suitable site The Salzburger Master Flaker is made from high quality, solid wood. Wood is a natural product which makes it subject to change according to changes in humidity and temperature. Place the appliance in a dry place and protect it from any direct source of heat (sunlight, ovens etc.), as well as from moisture influences (Sink, Steamdevices,... -
Page 6: Flaking Process
Should you require especially large flakes, we recommend that you wash the grain first and then let the surfaces dry. For hygienic reasons this process step can, of course be beneficial, but is however not necessary for the faultless function of the appliance. Flaking Process Using the clamp as supplied, fasten the appliance firmly down onto a table;... -
Page 7: Protection Against Pests
Protection against pests: Moths love darkness and quiet and will only attack wood when under extreme stress. If your flaker is used on a regular basis, moths will find a very comfortable place for them to stay. Should the flaker not be in use for some time, cover with a cloth and eventually place some herbs or bay leaves in the funnel. -
Page 8: Setting Up The Funnel
Setting up the funnel Place the funnel in an UPRIGHT position from top to bottom. Make sure that the wooden dowels are inserted into the intended holes and that they will not become bent. Lifting the Gear Covering The gear covering can only be lifted after having removed the funnel. Using your thumb gently push the covering upwards –... -
Page 9: Setting The Gear Covering
Setting the Gear Covering Place the wooden covering with the notch over the gears. Slightly push the cover downwards. The cone holders are thus centered with their slanted flanks in the horizontal slots. It is important that the covering sits completely flat on the stands and that all four cones are in their slots. -
Page 10: Faults And Solutions
Cleaning” Please remove the funnel dirty If nothing helps: Before you return the flaker for repair work, please contact your customer service point, maybe they can give you further helpful tips on how to solve your problem. Tel. 0043 6245 83282 E-mail: info@agrisan.at... -
Page 11: Warranty
Based on our many years of experience, our flakers are manufactured and controlled directly at our factory. We only use selected materials. However, defects may occur! Warranty for Salzburger Master Flaker with gear drive: 3 Years Terms of Warranty: The warranty applies to all occurring material or processing defects, and depends on the choice of the manufacturer to replace, repair or refund the appliance. -
Page 12: Warranty Claims
Please return the parcel sufficiently stamped – please also consider taking transport insurance, which does incur significantly higher postage costs. Warrantor and warranty address: AGRISAN NATURPRODUKTE GMBH Gasteigweg 25 A - 5400 Hallein Österreich Tel. 0043 6245 83282 E-mail: info@agrisan.at... -
Page 13: Technical Data: Salzburger Master Flaker
Technical Data: Salzburger Master Flaker Housing: Depending on the design: Domestic solid beech, oak or walnut wood Rollers: Made from nickel-free stainless steel Gears: Made from corrosion-free stainless steel Space required: 10,5 x 12 cm Height: 29 cm Weight: 2,2 kg Flaking volume: ca. - Page 14 AGRISAN NATURPRODUKTE GMBH Gasteigweg 25 A - 5400 Hallein Österreich Tel. 0043 6245 83282 / E-mail: info@agrisan.at Internet: www.getreidemuehle.com www. smoothie-mixer.at www.veganstar.eu https://www.facebook.com/salzburgergetreidemuehlen/...
