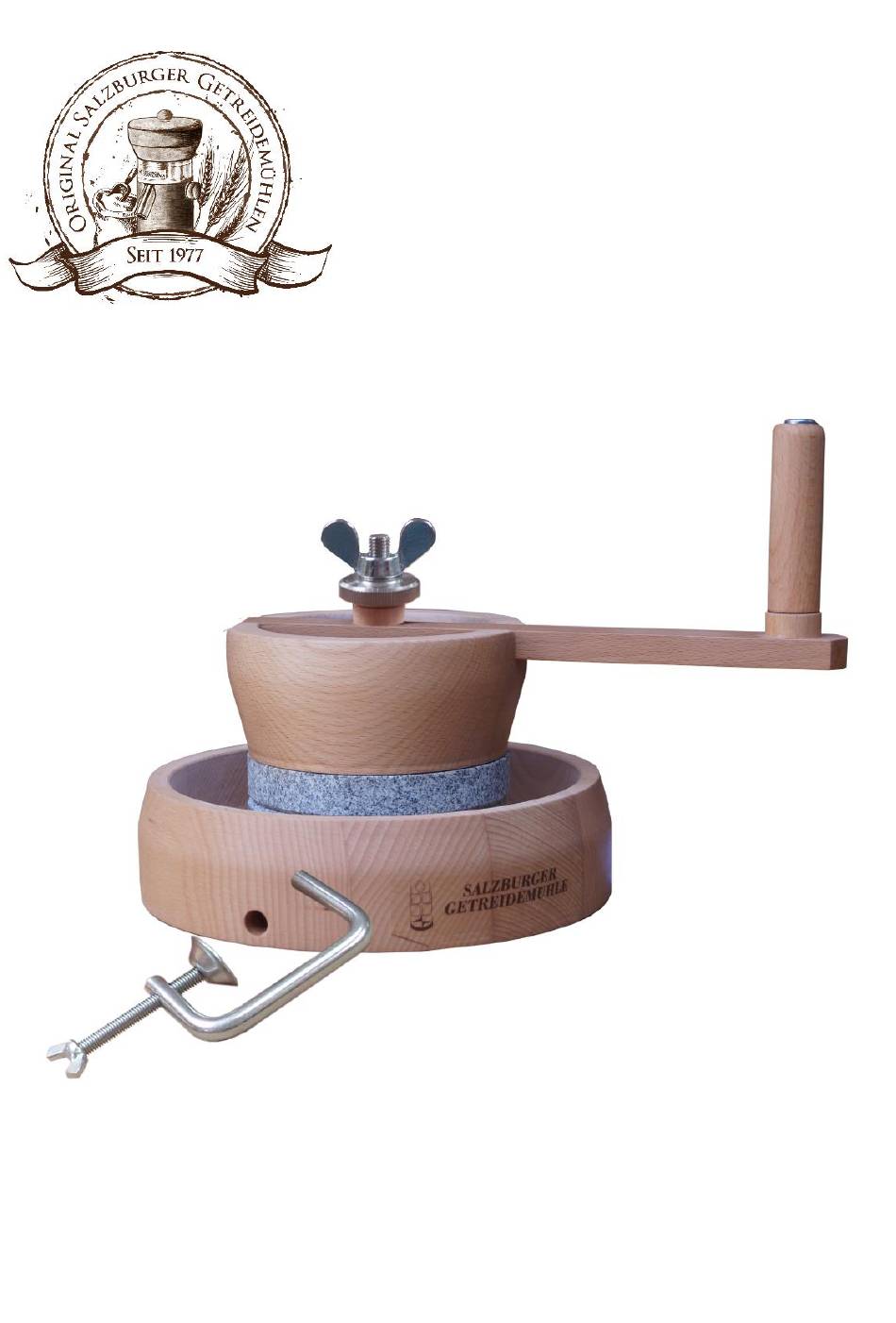

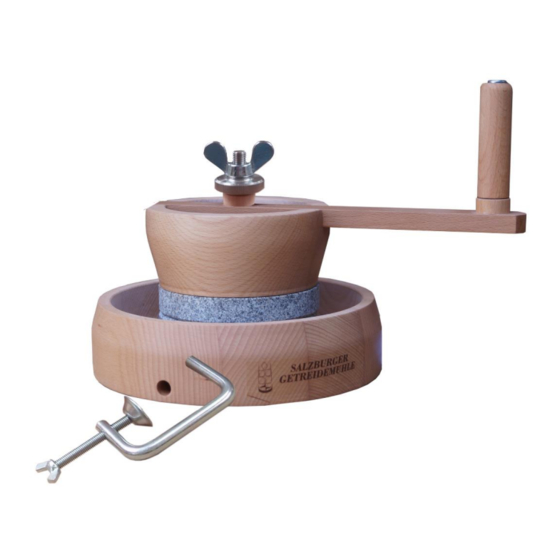

- Page 1 “ Salzburger Hand Mill MH 4 Owner ’s Manual and User ’s Guide Please study the user’s guide and the safety instructions carefully before operating the appliance for the first time!
-
Page 2: Dear Customer
We are very pleased that you have bought our flaker and trust that you will be very successful in making healthy wholemeal meals With your “Salzburger Master Flaker” you have purchased a top-quality household appliance which has been designed and manufactured according to the latest state of the art technology. - Page 3 Control elements of the hand mill MH4 „Salzburger Hand Mill MH 4“ Wing nut Knurled nut with spigot facing upwards hardened disc - groove downwards Ball-Bearing hardened disc groove upwards Winch Assemble in this order onto the funnel (thread) Please study the user’s guide and the safety instructions carefully before operating the appliance for the first time!
- Page 4 Assembly of the hand mill: Please see the picture on page 3 1. Position the winch onto the threaded rod. 2. Then fit the bearing. 3. Position the knurled nut (sturdy fixing, however not too tight and not too loose) with the spigot facing upwards until you have contact with the bearing.
- Page 5 3. Before operating the appliance, it is essential to check its flawless condition. Repairs may only be carried out by persons authorized by Agrisan GmbH 4. The seller must immediately be informed of any defects. 5. The safety devices must not be modified or turned off.
- Page 6 of the safe operation of the appliance. The exception to such ope- ration of the appliance is when used under supervision of persons responsible for the safety of any handicapped persons. 11. The exterior of the mill must only be wiped clean with a damp cloth. 12.
- Page 7 Please only use cleaned grain. Suitable grain types Grain Type Setting Remarks Wheat, rye, Do not use popcorn, buckwheat, barley, Any degree of fineness only use regular dried millet, green- corn spelt, spelt Limited, eventually Corn, rice, soy beans coarse grinding Adjust the mill to a Oats coarser setting...
-
Page 8: Care And Cleaning
Care and Cleaning Normal functioning of the mill means that small amounts of flour will be left in the milling chamber. When using the mill regularly, we recommend to clean it every three months. If you do not intend to use your mill over a period of some weeks, we recommend that for hygienic reasons you have to clean it thoroughly, in order to avoid mildew. - Page 9 Interrupting the milling process When beginning to mill hard grain types such as corn, rice or durum wheat at fine settings and with a full funnel the mill can become blocked. Please re-adjust the setting from fine to coarser until the mill begins to turn then during the milling process adjust the setting in a clockwise direction until the desired degree of fineness is reached.
- Page 10 Opening the milling chamber The funnel with the upper millstone is fixed by the knurled nut and the wing nut on the base part of the mill. By unscrewing the knurled nut and the wing nut, the funnel can be lifted off Closing the milling chamber Place the funnel unit onto the guide rod which is fixed in the lower part of the part of the appliance.
-
Page 11: Problems And Solutions
Problems and Solutions Problem Cause Solution The crank cannot be This means that the turned. mill stones will be The knurled nut has turned tighter and not been correctly tighter together, so countered (locked) or that milling is no has been turned too longer possible. - Page 12 Problem Cause Solution Flour is too coarse The knurled nut was Tighten the knurled too loose nut in steps until you have desired degree of fineness and the lock (counter) the same correctly. Please see Page 4. Bogenhofener whole wheat bread 750 g of ground spelt, 250 g of ground rye, 1 packet 7 g) dry yeast, 4 tbsps.
-
Page 13: Warranty Claims
Terms of Warranty: The warranty applies to all occurring material or processing defects, and depends on the choice of the manufacturer to replace, repair or refund the appliance. It does not include the replacement of consequential damage nor loss due to natural wear and tear or to damages caused by the use of force and/primero per use or lack of improper maintenance. -
Page 14: Shipping - Packing
Please return the parcel sufficiently stamped – please also consider taking transport insurance, which does incur significantly higher postage costs. Warrantor and warranty address: AGRISAN NATURPRODUKTE GMBH Gasteigweg 25 A 5400 Hallein Österreich Tel. +43 6245 83282 E-mail: info@agrisan.at Internet: www.getreidemuehle.com... - Page 15 Technical Data MH 4: Weight: 2,9 kg Height: 16 cm without crank Required space: 22 x 22 cm Funnel capacity: 300 g Milling capacity, fine: 40 g/min Milling capacity, coarse: 80 g/min Mill stone diameter: 12 cm Natural stone/granite Mill stone: or Corundum/ceramic...
- Page 16 AGRISAN NATURPRODUKTE GMBH Gasteigweg 25 A - 5400 Hallein / Österreich Tel. 0043 6245 83282 E-Mail: info@agrisan.at Internet: www.getreidemuehle.com www. smoothie-mixer.at www.agrisan.at...
