Important Safety Instructions:
These instructions are provided for your safety. It is very important that they are read carefully and completely before
beginning the assembly and installation of this lighting fixture.
For your safety and convenience, it is strongly recommended that two people install the lighting fixture.
This fixture has been rated for up to one
or one (1) 9-watt compact fluorescent light bulb (not included) or one (1) 4.5-watt SBLED light bulb (included).
avoid the risk of fire, do not exceed the recommended wattage.
This lamp is meant for indoor use. SUITABLE FOR EITHER DRY OR DAMP LACATIONS.
Save these instructions.
WARNING:
To reduce the risk of fire, electrical shock or personal injury, always turn off and unplug the light fixture and allow
it to cool prior to replacing the light bulb.
Do not touch bulb when fixture is turned on. Do not look directly at lit bulb.
Keep flammable materials away from lit bulb.
Pre-assembly:
Remove all parts and hardware from box along with any plastic protective packaging.
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or hardware.
For your safety and convenience, assembly by two people is recommended.
Tools Required (not included):
(1) 40-watt maximum TYPE B standard incandescent light bulb (not included)
US/CN

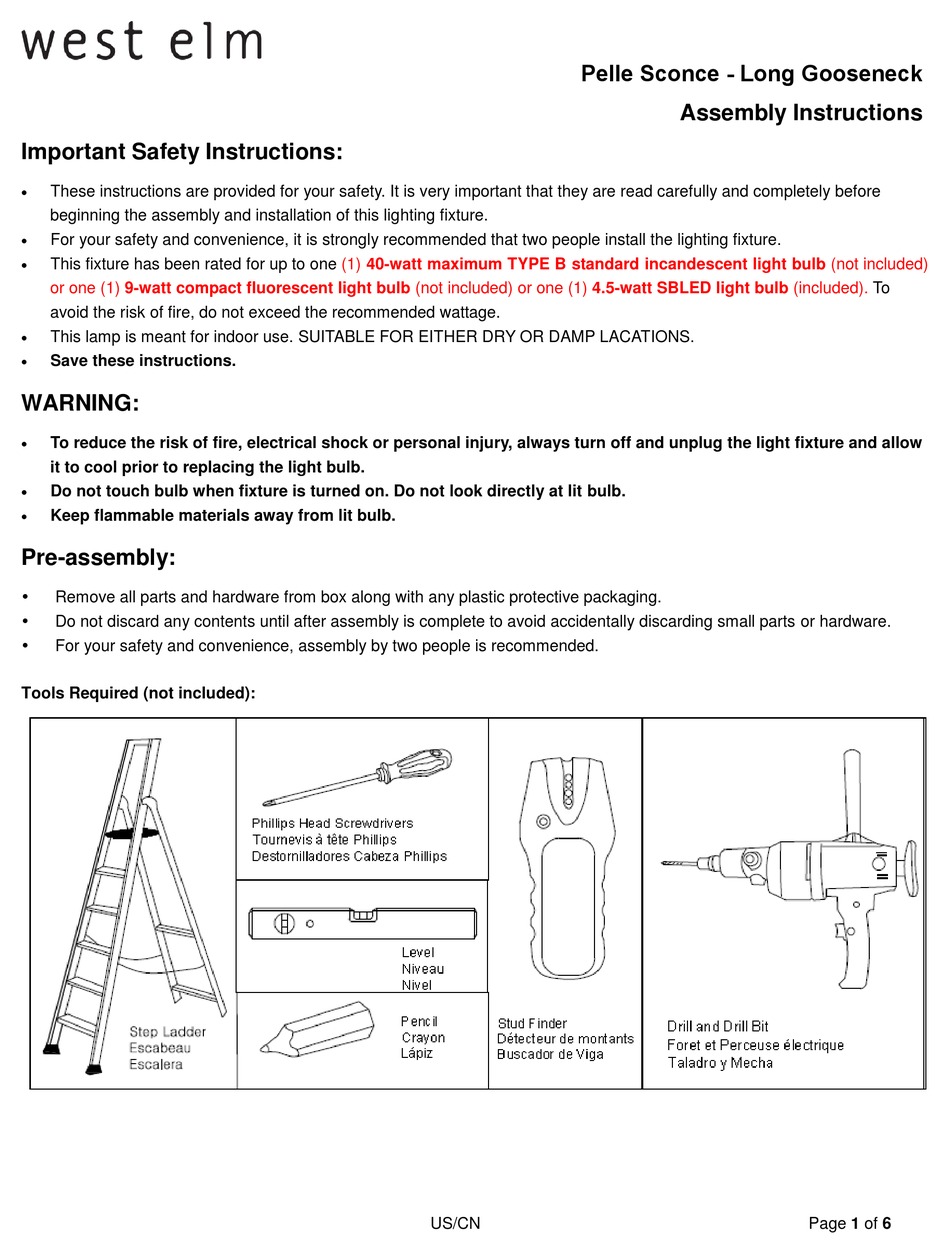

Pelle Sconce - Long Gooseneck
Assembly Instructions
To
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for West Elm Pelle Sconce Long Gooseneck
Summary of Contents for West Elm Pelle Sconce Long Gooseneck
- Page 1 Pelle Sconce - Long Gooseneck Assembly Instructions Important Safety Instructions: These instructions are provided for your safety. It is very important that they are read carefully and completely before beginning the assembly and installation of this lighting fixture. For your safety and convenience, it is strongly recommended that two people install the lighting fixture.
- Page 2 Pelle Sconce - Long Gooseneck Assembly Instructions Parts Included: (D) Mounting Plate (1) (E) Canopy (1) (F) Threaded Nuts (1) Metal Cap (1) Plastic Pads (2) (I) Metal Plate (1) (J) Socket (1) (K) Glass Shade (1) (L) Lamp Arm (1) (M) Socket Ring (1) Hardware Enclosed: (A) Wall Anchors (2)
- Page 3 Pelle Sconce - Long Gooseneck Assembly Instructions For drywall mounting: 1. Separate the Mounting Plate (D) from the Canopy (E) by removing the 3 Canopy Screws (C). Do not discard the Canopy Screws (C) as these will be used later. Place the Mounting Plate (D) against the wall at the desired hanging location.
- Page 4 Pelle Sconce - Long Gooseneck Assembly Instructions For mounting to joist 1. Place the Mounting Plate (D) against the wall at the desired hanging location. 2. Mark the mounting location of the 2 holes of Mounting Plate (D) onto the wall using a pencil. 3.
- Page 5 Pelle Sconce - Long Gooseneck Assembly Instructions Install the Light Fixture onto the Wall: 1. Place the Canopy (E) onto the installed Mounting (D) aligning the holes on the top and bottom of the Canopy (E). 2. Secure the Canopy (E) onto the Mounting plate (D) using the Canopy Screws (C), tightening them with a screwdriver (not included) until tight.
- Page 6 Pelle Sconce - Long Gooseneck Assembly Instructions 1. Lower the Metal Cap (G)) until the edge of the Metal Cap (G) is fully contacted and aligned with the upper outer edge of the Glass Shade (K). Secure the Glass Shade (K) by turning the Threaded Nut (F) onto the threaded portion at the top of the Socket (J) in a clockwise direction by hand until tight.
