Summary of Contents for NHT B-20
-

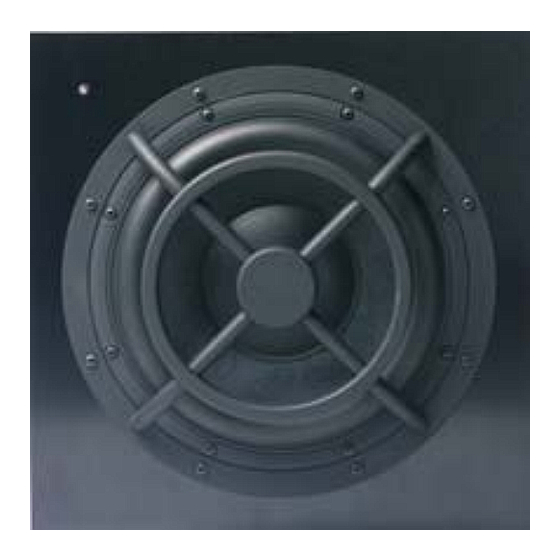

Page 1: Subwoofer System
B-20 POWERED Modular Stereo Subwoofer System Owner’s Manual B-20 Control Amplifier Serial Number: B-20 Subwoofer Serial Number: B-20 Subwoofer Serial Number: Copyright 2001 NHTPro, a Recoton Corporation Brand... -
Page 2: Detailed Safety Instructions
Safety Instructions -- Please Read First CAUTION: To reduce the risk of electric shock, do not remove the cover. No user serviceable parts are inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock do not expose this appliance to rain or moisture. -
Page 3: Getting Started
The cone points are sharp so please use caution. For now, position each B-20 subwoofers next to the left and right monitors. -
Page 4: Controls/Front Panel
Power LED: This green LED indicates the B-20 Control Amplifier is connected to AC mains and that the power switch is turned on. If the LED does not light up after you’ve connected the B-20 system to the AC mains with the power switch in the on position, this indicates a blown fuse or trouble with the unit. -
Page 5: Connections/Rear Panel
Satellite Output -- Left and Right: The TRS output jacks pass the left and right signals to the left and right monitors used with the B-20 system. Their frequency output is determined by the settings on the front panel SAT HI PASS control and the remote control bypass switch. If the B-20 is used strictly on an LFE channel, no satellite connection is necessary. - Page 6 Connect the left and right output from your mixer or source unit into the corresponding left and right INPUT section, using either the XLR or TRS jacks of the B-20 Control Amplifier. Now connect the supplied left and right TRS cables from the TO SATELLITE output jacks on the Control Amplifier to your monitors’...
-
Page 7: Subwoofer Placement
SYSTEM OPERATION: The B-20 in conjunction with good near field or mid field monitors, like the A-20, can play very loud with very low distortion, but every speaker has its limits. Harsh breakup is an indication your monitors or subwoofers have exceeded their output limits. Excessive boosting of bass, treble or equalizer controls can worsen the problem. - Page 8 SYSTEM MAINTENANCE: Except for the occasional flattering comment, your B-20 needs no regular maintenance. The B-20 cabinet is finished with a durable, scratch resistant laminate. Light dusting is usually sufficient, although the cabinet can be cleaned with a nonabrasive, water based cleaner.
