CoolGear CG-UCUSBPD User Manual

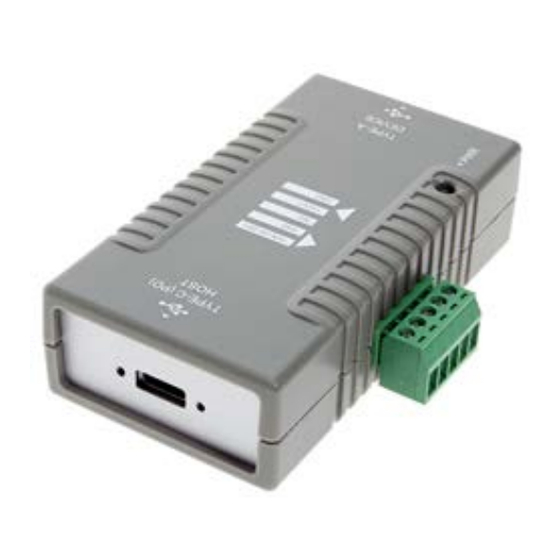

CG-UCUSBPD USB-C to USB-A Power Delivery Adapter with Mounting Kit
The CG-UCUSBPD is a USB-C to USB-A Power Delivery Adapter is USB 3.1 Gen1/2
compliant and is backward compatible with USB 2.0/1.1. It acts as a PD source (power
delivery source) for its upstream connector that works with USB 3.1 or USB 2.0
devices. The USB-C upstream port is fully compliant with a USB 3.1 and USB PD
capable host.
It is backward compatible with USB 3.0 and 1.1, the USB 3.1 Power delivery adapter is
compliant with Gen1 and 2 of the USB 3.1 specification. The USB-C power delivery
adapter acts as a PD source for the upstream USB-C port.

Features and Specifications

FEATURES
•
Compliant with USB 3.1 Gen1 and Gen2
• One upstream Type-C Connector Supports PD Capable
Host
•
One Downstream Type-A USB 3.1 Gen1/Gen2
Connector for Devices
•
Supports USB PD (power delivery), Works as a Source
• Detachable Mounting Kit for Wall or DIN Rail Mounting
Options
• Supports Type-C and Type-A Screw Lock USB Cables
•
DC Power Input: 18-20V DC, from DC Jack or Terminal
Blocks
•
Provides Negotiated Power Output to Terminal Blocks
• Detection of USB Cable connector Attached, Orientation
and Role Detection
• Assign CC and VCONN Pins
•
Supports Source PDO's (Power Data Object): 20V/5A,
14.5V/2A, 12V/3A and 5V/3A

Connector Layout

• Connectors: Upstream: Type-C USB 3.1/2.0/1.1 –
Downstream: Type-A USB 3.1/2.0/1.1
• Speed: USB 3.1 Gen 1/2 with 5/10Gbps
•
USB Signals: SSRX +/-, SSTX +/-, D+/-
•
Input Power: 18-20V DC
• Supported Power PDOs: 20V/5A, 14.5V/2A, 12V/3A and
5V/3A
• Operating Temperature: 0 to 55°C (32 to 131°F)
•
Operating Humidity: 5 to 95% RH
•
Storage Humidity: -20 to 85°C (-4 to 185°F)
Sales@coolgear.com www.CoolGear.com
Specifications
