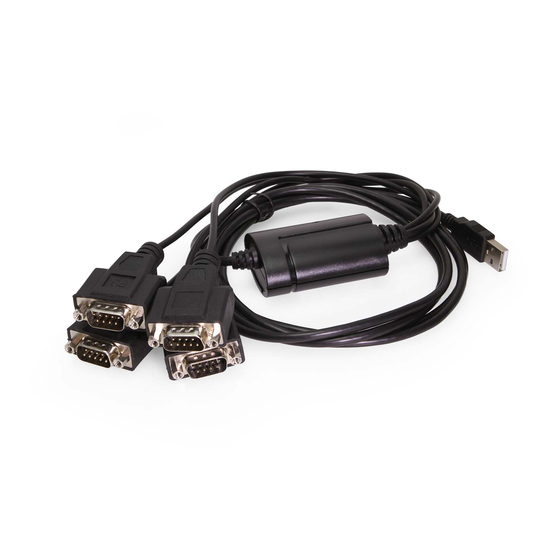

- Page 1 4-port USB to RS232 Adapter FTDI Cable Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: CG-4X232FTDI www.coolgear.com...
- Page 2 CG-4X232FTDI – Product Manual Revision History Revision Date Author Comments 02/27/2018 Coolgear New Manual About this document This product manual outlines installation and features of the USB-COM-i Single Port USB to RS422 / 485 adapter. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
-
Page 3: Table Of Contents
CG-4X232FTDI – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 2. Plugging the Adapter Cable .................. 5 Installing Drivers ..................... 5 Installing Drivers for (32-bit and 64-bit) Win7, XP, Vista, 2008, 2003 and 2000: ... 6 Male DB9 Pin Assignments and Cable Wiring ............ -
Page 4: Introduction
CG-4X232FTDI – Product Manual 1. Introduction The CG-4X232FTDI is a 4S RS232 to USB2.0 serial adapter cable that is designed for PC, thin client, or server to provide instant COM port expansion via the Universal Serial Bus (USB). It provides the scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface allowing you to add RS232 connectivity as needed. -
Page 5: Plugging The Adapter Cable
CG-4X232FTDI – Product Manual 2. Plugging the Adapter Cable 1) Plug the USB Type-A end of the Adapter Cable into the USB host port of your PC or into and available USB Port on a USB hub. 2) Connect the RS232 Serial Devices to the DB9 male connectors of the Adapter Cable. -
Page 6: Installing Drivers For (32-Bit And 64-Bit) Win7, Xp, Vista, 2008, 2003 And 2000
CG-4X232FTDI – Product Manual 2.2 Installing Drivers for (32-bit and 64-bit) Win7, XP, Vista, 2008, 2003 and 2000: • Insert the Driver CD supplied with the Adapter Cable. • Run (or double click) the installer program (e.g. CDM20600.exe) in the following folder of the Driver CD. -
Page 7: Environmental Specifications
CG-4X232FTDI – Product Manual 2.4 Environmental Specifications Power Requirements: 5V DC, 250mA (max) Operating Temperature: 0 to 55°C (32 to 131°F) Operating Humidity: 5 to 95% RH www.coolgear.com... -
Page 8: Notes, Tips, And Warnings
CG-4X232FTDI – Product Manual 3. Notes, Tips, and Warnings Note Warning • Read the entire Product Manual before implementing this product for your application. This manual contains important information about electrical connections that must be followed for safe and proper operation. -
Page 9: Supporting References
© 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
