Tecnoautomazione T182S User Manual

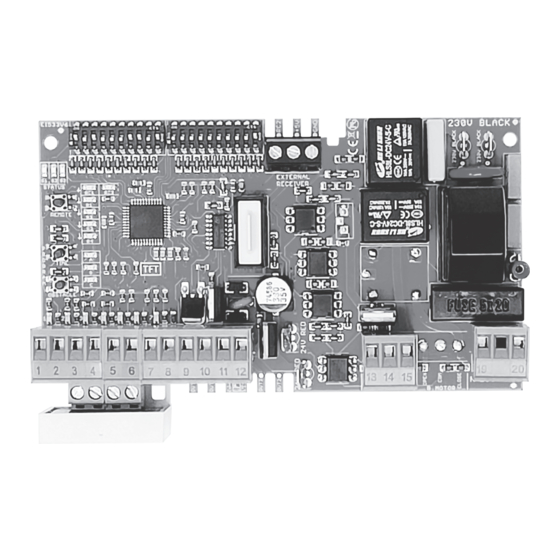

T182S.
SLIDING GATE CONTROL UNIT. 230 VAC POWER SUPPLY. 433.92 MHz FREQUENCY . 100 STORABLE CODES.
ON
3 4 5 6 7 8 9 10
1 2
LEFT / DIP-SWITCH
RC1 RC2
R1
R2
REMOTE
R3
R4
TIME
A
B
C
OBSTACLE
1 2 3 4 5 6 7
INGRESSI
INTERNAL
RECEIVER
LEDs:
S1.S2.S3. GATE STATUS / CONTROL BOARD STATUS LEDS
RC1.RC2.R1.R2.R3.R4. RADIO LEDS
RC1. SHOWS THAT A SIGNAL HAS BEEN RECEIVED FROM THE INTERNAL RADIO RC1
RC2. SHOWS THAT A SIGNAL HAS BEEN RECEIVED FROM THE EXTERNAL RADIO RC2
R1. START: INDICATES THAT A START BUTTON ON THE REMOTE HAS BEEN PRESSED
R2. STOP: INDICATES THAT A STOP BUTTON ON THE REMOTE HAS BEEN PRESSED
R3. PEDESTRIAN: SHOWS THAT A START PEDESTRIAN BUTTON ON THE REMOTE HAS BEEN PRESSED
R4. OUT1 ON/OFF: SHOWS THAT A OUT1 BUTTON ON THE REMOTE HAS BEEN PRESSED
A.B.C. PROGRAMMING LEDS

1.2.3.4.5.6.7. INPUTS

LEFT DIP-SWITCH (1) FUNCTIONS
MOTORS POWER. DIP 1 - 2.
OFF / OFF = 40%
1 2 3 4 5 6 7 8 9 10
ON / OFF = 60%
1 2 3 4 5 6 7 8 9 10
OFF / ON = 80%
1 2 3 4 5 6 7 8 9 10
ON / ON = 100%
1 2 3 4 5 6 7 8 9 10
SLOW DOWN. DIP 3.
OFF = DISABLED
1 2 3 4 5 6 7 8 9 10
ON = ENABLED
1 2 3 4 5 6 7 8 9 10 POWER 100%
OBSTACLE DETECTION SENSOR. DIP 4.
OFF = DISABLED
1 2 3 4 5 6 7 8 9 10
ON = ENABLED
1 2 3 4 5 6 7 8 9 10
OBSTACLE DETECTION SENSOR IN SLOW DOWN. DIP 5.
OFF = DISABLED
1 2 3 4 5 6 7 8 9 10
ON = ENABLED
1 2 3 4 5 6 7 8 9 10
3 4 5 6 7 8 9 10
1 2
RIGHT / DIP-SWITCH
EXTERNAL
RECEIVER
8 9 10 11 12
SOFT START. DIP 6 - 7.
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
PEDESTRIAN TIME. DIP 8 - 9.
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
MOTORS AND PHOTOCELLS TESTS. DIP 10.
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
2A FUSE
13 14 15
MOTOR
Modes. DIP 1 - 2.
OFF / OFF = 0.1 sec OFF / OFF = AUTOMATIC CLOSURE
1 2 3 4 5 6 7 8 9 10
ON / OFF = 0.5 sec ON / OFF = COMMUNITY MODE
1 2 3 4 5 6 7 8 9 10
OFF / ON = 1.0 sec OFF / ON = STEP-BY-STEP MODE
1 2 3 4 5 6 7 8 9 10
ON / ON = STEP-BY-STEP + AUTOMATIC
ON / ON = 1.5 sec
1 2 3 4 5 6 7 8 9 10
AUTOMATIC CLOSURE. DIP 3 - 4.
OFF / OFF = 3 sec
1 2 3 4 5 6 7 8 9 10
ON / OFF = 6 sec
1 2 3 4 5 6 7 8 9 10
OFF / ON = 9 sec
1 2 3 4 5 6 7 8 9 10
ON / ON = 12 sec
1 2 3 4 5 6 7 8 9 10
FAST CLOSURE. DIP 5.
OFF = DISABLED
1 2 3 4 5 6 7 8 9 10
ON = ENABLED
1 2 3 4 5 6 7 8 9 10
OIL RECIRCULATION. DIP 6.
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
INPUTS:
1. START OR OPEN N.O.
2. STOP N.C.
3. EXTERNAL PHOTOCELL N.C.
closing phase: inverts the gate movement
4. INTERNAL PHOTOCELL N.C.
opening hase: pauses the gate movement
closing phase: inverts the gate movement
G
R
5. CLOSING LIMIT SWITCH N.C.
O
U hanldes the closing limit switches
N
D
6. OPENING LIMIT SWITCH N.C.
hanldes the opening limit switches
7. PEDESTRIAN OR CLOSE N.O
N L
230 VAC
S1 S2 S3 BOARD STATUS:
x
STAND BY, GATE CLOSED
19 20
GATE IN OPENING OR CLOSING PHASE,
GATE OPEN
PROGRAMMING OF WORKING TIMES /
OBSTACLE SENSOR
PROGRAMMING ERROR
PHOTOCELLS ERROR
MOTOR ERROR:
A
CONNECTION
B ERROR OR MOTOR
OVERHEATING
C
AUXILIARY OUTPUTS:
OUT1. ENABLED/DISABLED VIA REMOTE (R4)
OUT2. COURTESY LIGHT / ENABLED DURING
OPENING FOR 3 MINUTES
RIGHT DIP-SWITCH (2) FUNCTIONS
1 2
1 2
CLOSURE
DISABLED NOT WIRED N.C. INPUTS. DIP 8.
OFF / OFF = PROGRAMMABLE
1 2
ON / OFF = 10 sec
OFF / ON = 20 sec
1 2
ON / ON = 60 sec
OFF = DISABLED
1 2
ON = ENABLED
1 2
OFF = DISABLED
1 2
ON = ENABLED
1 2
A
OBSTACLE
B
DETECTED
C
LIMIT SWITCH N.C. / N.O. DIP 7.
OFF =
LIMIT SWITCH N.C.
3 4 5 6 7 8 9 10
ON =
LIMIT SWITCH N.O.
3 4 5 6 7 8 9 10
OFF =
N.C. INPUTS ENABLED
3 4 5 6 7 8 9 10
ON =
NOT WIRED N.C.
3 4 5 6 7 8 9 10 INPUTS DISABLED
INPUTS OPTION 1 - 7. DIP 9.
INPUT 1 = START
OFF =
3 4 5 6 7 8 9 10 11 12
INPUT 7 = PEDESTRIAN
INPUT 1 = OPEN
ON =
3 4 5 6 7 8 9 10 11 12 INPUT 7 = CLOSE
MOTOR BREAK. DIP 10.
OFF = DISABLED
3 4 5 6 7 8 9 10
ON = ENABLED
3 4 5 6 7 8 9 10
