waves system AP420 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version :
0.46-beta (for firmware 1.0 or higher)
Date :
January 2023
Éditeur :
Waves System
Auteur(s) :
Thierry Roger
AP420
User guide

Advertisement

Table of Contents
loading

Related Manuals for waves system AP420

Summary of Contents for waves system AP420

  • Page 1 AP420 User guide Version : 0.46-beta (for firmware 1.0 or higher) Date : January 2023 Éditeur : Waves System Auteur(s) : Thierry Roger...
  • Page 2 Licence Waves System products are exclusively manufactured by Waves System 14, rue Philippe Lebon- 44980 Sainte Luce Sur Loire- FRANCE Sales and informations : +33 (0)2 40 78 22 44 E-mail : sales@wsystem.com Website : https://waves-system.com...

  • Page 3: Table Of Contents

    Connect to your player on a DHCP network ..................... 13 Connect to your player with a static IP ......................14 First login ................................15 First steps with your player AP420 ........................16 6.1. Media library 6.2. Calendar 6.2.1. Edit a music program 6.2.2.

  • Page 4: Welcome

    Welcome AP420 Welcome AP420 is the most advanced audio player designed by Waves System. The player can broadcast tracks, playlists, webradio and messages. Media are stored either on a USB stick, a µSD/SDHC card or an internal flash memory (4Go available).

  • Page 5: Safety Instructions

    AP420 Safety instructions Safety instructions  Warning CAUTION! DO NOT EXPOSE THE PRODUCT TO HUMIDITY NOR DUST! Unplug the power supply cable before any servicing FOR YOUR SAFETY, PLEASE READ CAREFULY THE USER'S GUIDE BEFORE OPERATING YOUR PLAYER AP420 CE marking The CE marking is placed on the label, at the bottom side of the device.
  • Page 6 Safety instructions AP420 is used in accordance witj its intended purpose. Nevertheless, for the sake of safety, we would like to draw your attention to the following instructions: • When using the device, comply with all local rules and regulations in force. Any modification or conversion of the device automatically entails loss of the certification.
  • Page 7 AP420 Safety instructions THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC...

  • Page 8: Description Of The Player

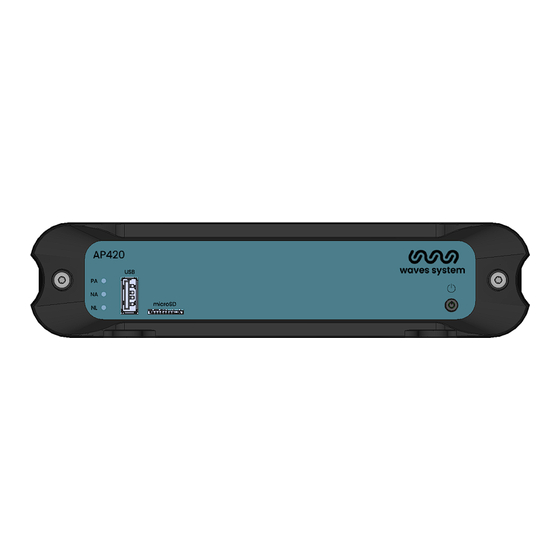

    Description of the player AP420 Description of the player Front panel of the player AP420 Introduction of player AP420 USB Port Plug your USB stick and select the front USB in the web interface>Main settings>storage. µSD slot Plug your µSD and select the microSD in the web interface>Main settings>storage.
  • Page 9 Orange Network activity Green Network link Rear panel of the player AP420 Analog audio output to connect an amplifier USB 1 port to connect a storage medium or a pointing device January 2023 Version : 0.46-beta (for firmware 1.0 or higher)
  • Page 10 Description of the player AP420 USB 1 port to connect a storage medium or a pointing device Entry contact Output relays Ethernet connector 10/100 Mbit/s USB 2 port January 2023 Version : 0.46-beta (for firmware 1.0 or higher)

  • Page 11: Input Contacts

    AP420 Description of the player USB 2 port Power supply 2.1. Input contacts The player has one input contact. The current firmware does not manage this entry. 2.2. Output contacts The player AP420 has two output contacts. The current firmware does not manage this output.
  • Page 12 Description of the player AP420 January 2023 Version : 0.46-beta (for firmware 1.0 or higher)

  • Page 13: Connect To Your Player On A Dhcp Network

    AP420 Connect to your player on a DHCP network Connect to your player on a DHCP network This procedure explains how to connect to your player AP420 for the first time. Get the serial number on the sticker located at the bottom of the player. It is labelled as per example: AP4xx-123456.

  • Page 14: Connect To Your Player With A Static Ip

    Connect to your player with a static IP AP420 Connect to your player with a static IP This procedure explains how to connect to your player AP420 with a static IP. Get the serial number on the sticker located at the bottom of the player. It is labelled as per example: AP4xx-123456.

  • Page 15: First Login

    AP420 First login First login This procedure explains how to log your player AP420 for the first time. To connect to the web administration of the player, please refer to "network connexion". Enter your new password and confirm it a second time before click on "connexion".

  • Page 16: First Steps With Your Player Ap420

    First steps with your player AP420 AP420 First steps with your player AP420 Introduction Use the application embedded in the player to create your audio project. 6.1. Media library The media library is an internal database that organizes tracks, playlists and webradios. You can import your media in the media library, create playlists an declare webradios.

  • Page 17: Edit A Music Program

    AP420 First steps with your player AP420 Playback is done sequencialy by default. You can select random playback. Playback is looped by default. Activate the playback history if you want to memorize the tracks played by the program. This function shows interest when the program is resumed after a stop.

  • Page 18: Create An Advert Program

    First steps with your player AP420 AP420 Once you have performed modifications, select save. Alternatively, if you want to abort select cancel. A window appear to ask if your want to cancel the modification of your program. The changes will be lost.

  • Page 19: Edit An Advert Program

    AP420 First steps with your player AP420 Repetition of the advert program in the calendar You have created an advert program you want to populate your calendar. Use repetition functions to organize your broadcast. You can select weekly, monthly or annually reptitions with an end. You can also add or exclude additional dates.
  • Page 20 First steps with your player AP420 AP420 Once you have performed modifications, select save. Alternatively, if you want to abort select cancel. A window appear to ask if your want to cancel the modification of your program. The changes will be lost.

  • Page 21: Firmware Update (Standard Mode)

    AP420 Firmware update (standard mode) Firmware update (standard mode) This procedure explains how to update the firmware of AP420 . This procedure must be used by default. Remove all USB sticks and µSD that were inserted for the playback. Insert a USB stick on the front panel with the firmware ap4xx-update.swu copied at the root of the USB stick.

  • Page 22: Firmware Update (Rescue Mode)

    Firmware update (rescue mode) AP420 Firmware update (rescue mode) This procedure explains how to update the firmware of AP420 when the player interface is not accessible anymore. This procedure must be used only in exceptionnal cases. Power off the player.

  • Page 23: Reset Factory For Player Configuration

    AP420 Reset factory for player configuration Reset factory for player configuration This procedure explains how to reset configuration of the player AP420 Power off the player. Press and hold the power button while powering on the player. Keep power button hold for more than 10 seconds until the 3 led are fixed green, orange and red.

  • Page 24: Reset Factory For Player Configuration And Data

    Reset factory for player configuration and data AP420 Reset factory for player configuration and data This procedure explains how to reset configuration and data of the player AP420 Power off the player. Press and hold the power button while powering on the player.
