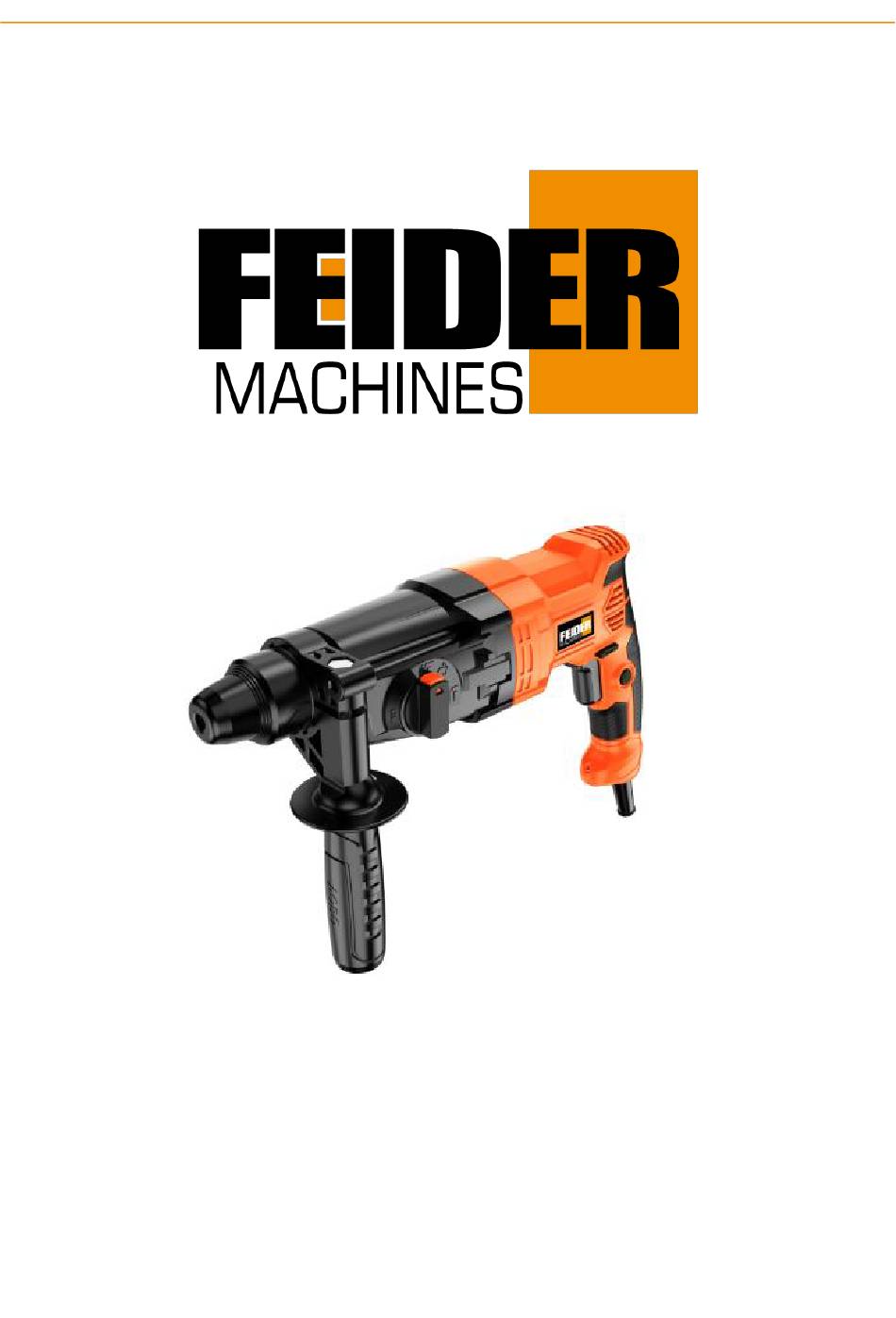

- Page 1 ORIGINAL INSTRUCTIONS ROTARY HAMMER FMP800-CL INSTRUCTION MANUAL CAUTION: READ THE INSTRUCTIONS BEFORE USE THE TOOL!
-
Page 2: Table Of Contents
CONTENTS INTENDED USE SAFETY INSTRUCTIONS PRODUCT DESCRIPTION TECHNICAL DATA ASSEMBLY OPERATION MAINTENANCE AND CLEANING DISPOSAL DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Intended Use
1. INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone, as well as for light chiseling work, it is also suitable for drilling without impact in wood, metal, ceramic and plastic. 2. SAFETY INSTRUCTIONS 2.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. - Page 4 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
-
Page 5: Product Description
Wear eyes protection Wear hearing protection Wear dust mask Read instructions of use 3. PRODUCT DESCRIPTION 1. SDS-plus tool holder 2. Locking sleeve 3. Rotational direction switch 4. Lock-on button for ON/OFF switch 5. ON/OFF switch 6. Release button for mode selector switch 7.Mode selector switch 8. -
Page 6: Technical Data
4. TECHNICAL DATA Model FMP800-CL Rated voltage 220-230V~ 50Hz Rated power input 800W No load speed 0-1200/min Drilling capacity 26mm in concrete Impact rate 0-5300BPM Impact force 2.2J Protection class Declaration of the noise emission values A-weighted sound pressure level - L... -
Page 7: Assembly
5. ASSEMBLY Before any work on the power tool itself, pull the mains plug. Auxiliary handle Operate your power tool only with the auxiliary handle. Rotating the auxiliary handle The auxiliary handle can be adjusted to any position in order to have a safe and fatigue-free working position. - Page 8 Setting the Operating Mode The operating mode of the power tool is selected with the mode selector switch. Note: Change the operating mode only when the machine is switched off! Otherwise, the machine can be damaged. To change the operating mode, push the release button and turn the mode selector switch to the requested position until it can be heard to latch.
-
Page 9: Maintenance And Cleaning
Inserting screwdriver bits Apply the power tools to the screw/nut only when it is switched off. Rotating tool inserts can slip off. To work with screwdriver bits, a universal bit holder with SDS-plus shank (accessory) is required. Clean the shank end of the adapter shank and apply a light coat of grease. Insert the universal bit holder with a turning motion into the tool holder until it automatically locks. -
Page 10: Declaration Of Conformity
ROTARY HAMMER ZI, 32, rue Aristide Bergès – 31270 Cugnaux – France Declare that the following tool: HAMMER DRILL FMP800-CL Serial number: 20221014489-20221015088 Is in conformity with the Directive « machine » 2006/42/CE Also in conformity with the following Directives:... -
Page 11: Warranty
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of my swap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 12: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 13: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 16 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
