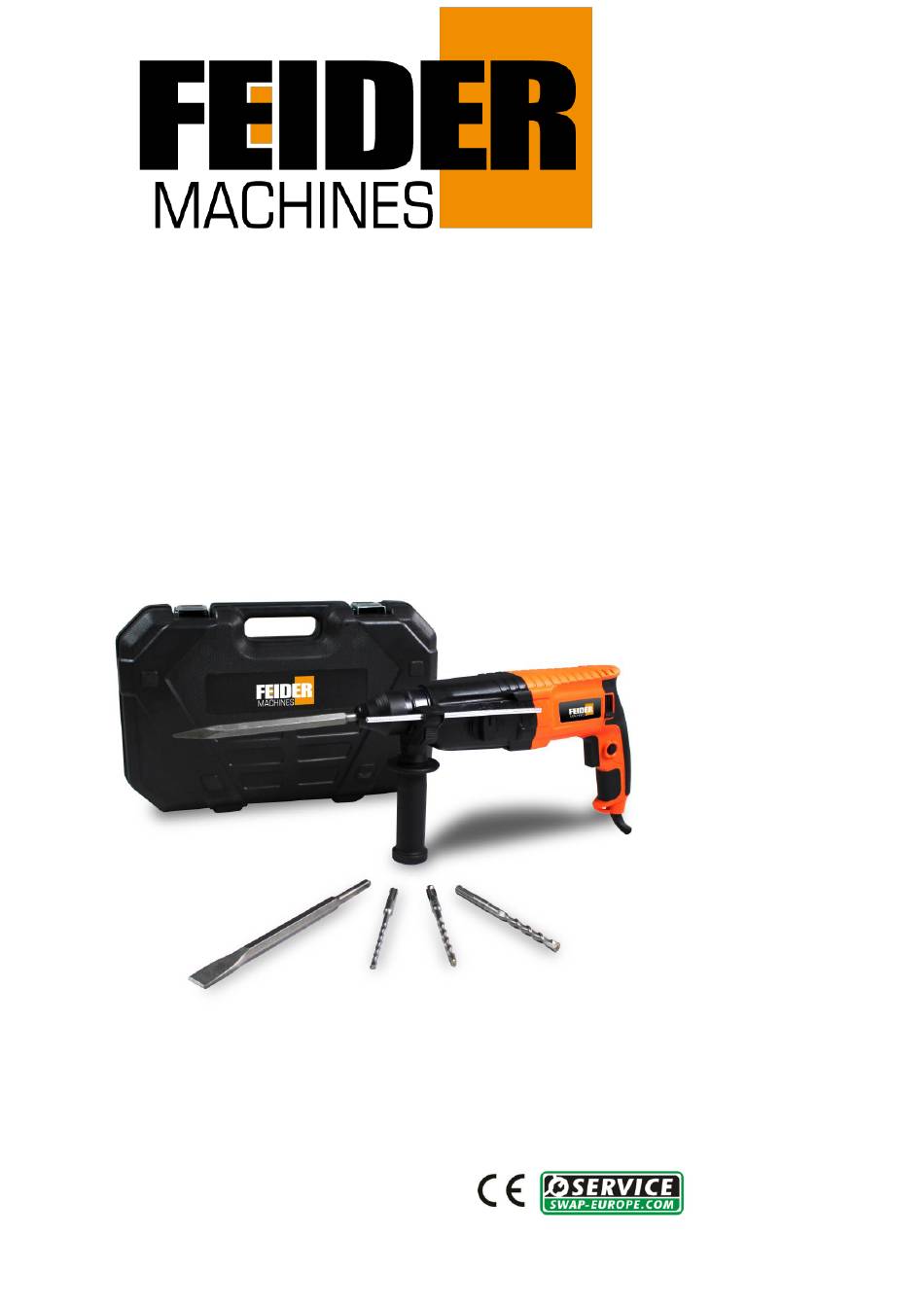

- Page 1 ROTARY HAMMER FMP800 ORIGINAL INSTRUCTIONS CAUTION: READ THE INSTRUCTIONS BEFORE USE THE TOOL FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: General Tool Safety Warnings
GENERAL TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
-
Page 4: Technical Data
Wear dust mask Read instructions of use TECHNICAL DATA Model FMP800 Rated voltage 230V~ 50Hz Rated power input 800W No load speed 0-1200/min drilling capacity 26mm Protection class Hammer drill mode 89.86 dB(A) A-weighted sound pressure level - L Chiseling mode 92.96 dB(A) - Page 5 DESCRIPTION 1. Securing screw 2. Key type drill chuck 3. SDS-Plus adapter shank for drill chuck 4. SDS-plus tool holder 5. Locking sleeve 6. Lock ring for rapid-change chuck 7. Rotational direction switch 8. Lock-on button for On/Off switch 9. on/off switch 10.
- Page 6 Before any work on the power tool itself, pull the mains plug. Auxiliary handle Operate your power tool only with the auxiliary handle Rotating the auxiliary Handle The auxiliary handle can be set to any position for a secure and low-fatigue working posture. Turn the bottom part of the auxiliary handle in counterclockwise direction and swivel the auxiliary handle to the desired position.
- Page 7 Slide the quick change chuck with a turning motion onto the drill chuck mounting until a distinct latching noise is heard. The quick change chuck is automatically locked. Check the locking effect by pulling the quick change chuck. Dust protection cap The dust protection cap largely prevents the entry of drilling dust into the tool holder during operation.
- Page 8 Position for hammer drilling in concrete or stone Position for drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving and thread cutting Vario-Lock position for adjustment of the chiseling position The mode selector switch does not latch in this position. Position for chiseling Reversing the Rotational Direction The rotational direction switch is used to reverse the rotational direction of the machine.
- Page 9 Overload Clutch If the tool insert becomes caught or jammed, the drive to the drill spindle is interrupted. Because of the forces that occur always hold the power tool firmly with both hands and provide for a secure stance. If the power tool jams, switch the machine off and loosen the tool insert. When switching the power tool on with the drilling tool jammed, high reaction torques can occur.
- Page 10 FEIDER ZI, 32, rue Aristide Bergès – 31270 Cugnaux – France Declare that the following tool: HAMMER FMP800 Serial number: Is in conformity with the Directive « machine » 2006/42/CE Also in conformity with the following Directives: Directive EMC 2014/30/UE...
