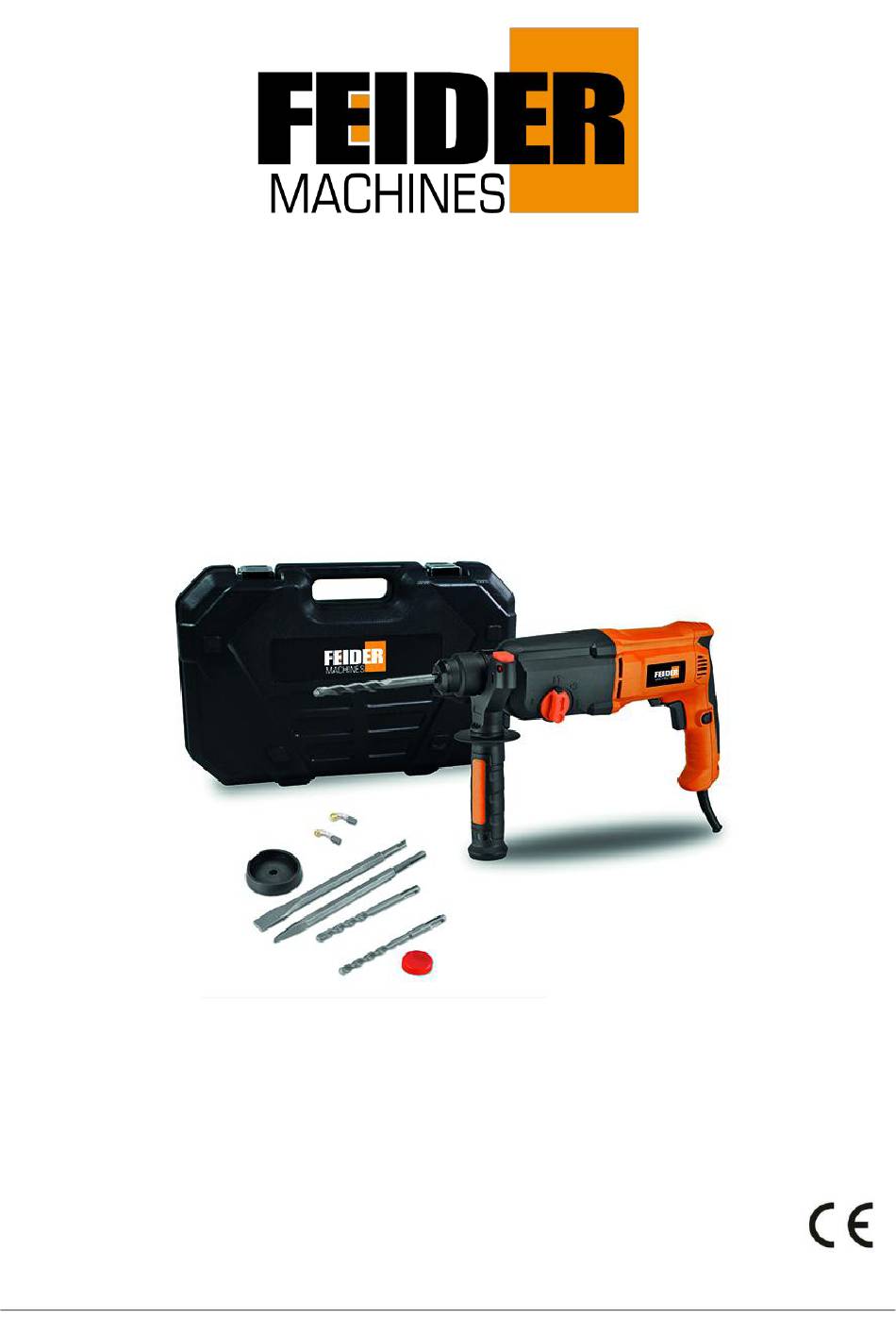

- Page 1 ROTARY HAMMER FMP800-A ORIGINAL INSTRUCTIONS CAUTION: READ THE INSTRUCTIONS BEFORE USE THE TOOL BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
- Page 2 GENERAL TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 3 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 4: Technical Data
TECHNICAL DATA Model FMP800-A Rated voltage 230-240V~ 50Hz Rated power input 800W No load speed 0-1000/min Drill 8/10/12*150mm Chise 14*250mm pointed &flat Max impact 5500BPM Max impact force 2.8J Protection class A-weighted sound pressure level - L 89.4 dB(A) Uncertainty - K... - Page 5 DESCRIPTION 1. SDS-plus tool holder 2. Locking sleeve 3. Button for depth stop adjustment 4. Release button for mode selector switch 5. Auxiliary handle 6. Mode selector switch 7. on/off switch 8. Rotational direction switch 9. Lock-on button for On/Off switch 10.
- Page 6 Press the button for depth stop adjustment and insert the depth stop into the auxiliary handle. The knurled surface of the depth stop must face downward. Insert the SDS-PLUS drilling tool to the stop into the SDS-plus tools holder 3.Otherwise.the movability of the SDS-plus drilling tool can lead to incorrect adjustment of the drilling depth.
- Page 7 Check the latching by pulling the tool. As a requirement of the system, the SDS-plus drilling tool can move freely. This causes a certain radial run out at no-load, which has no effect on the accuracy of the drill hole, as the drill bit centers itself upon drilling. Removing SDS-plus Drilling Tools Push back the locking sleeve and remove the tool.
- Page 8 The mode selector switch does not latch in this position. Position for chiseling Reversing the Rotational Direction The rotational direction switch is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch actuated. Right rotation: Turn the selector switch for drilling/hammer drilling on both sides to the stop in the position R.
- Page 9 Clean the shank end of the adapter shank and apply a light coat of grease. Insert the universal bit holder with a turning motion into the tool holder until it automatically locks. Check the locking effect by pulling the universal bit holder. Insert a screwdriver bit into the universal bit holder.
- Page 10 BUILDER SAS ZI, 32, rue Aristide Bergès – 31270 Cugnaux – France Declare that the following tool: ROTARY HAMMER FMP800-A Serial number: 20210600506-20210601005 Is in conformity with the Directive « machine » 2006/42/CE Also in conformity with the following Directives: Directive EMC 2014/30/UE Directive ROHS 2011/65/UE &...
-
Page 11: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 12: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 13: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
