Summary of Contents for Influx Technology ReXgen1

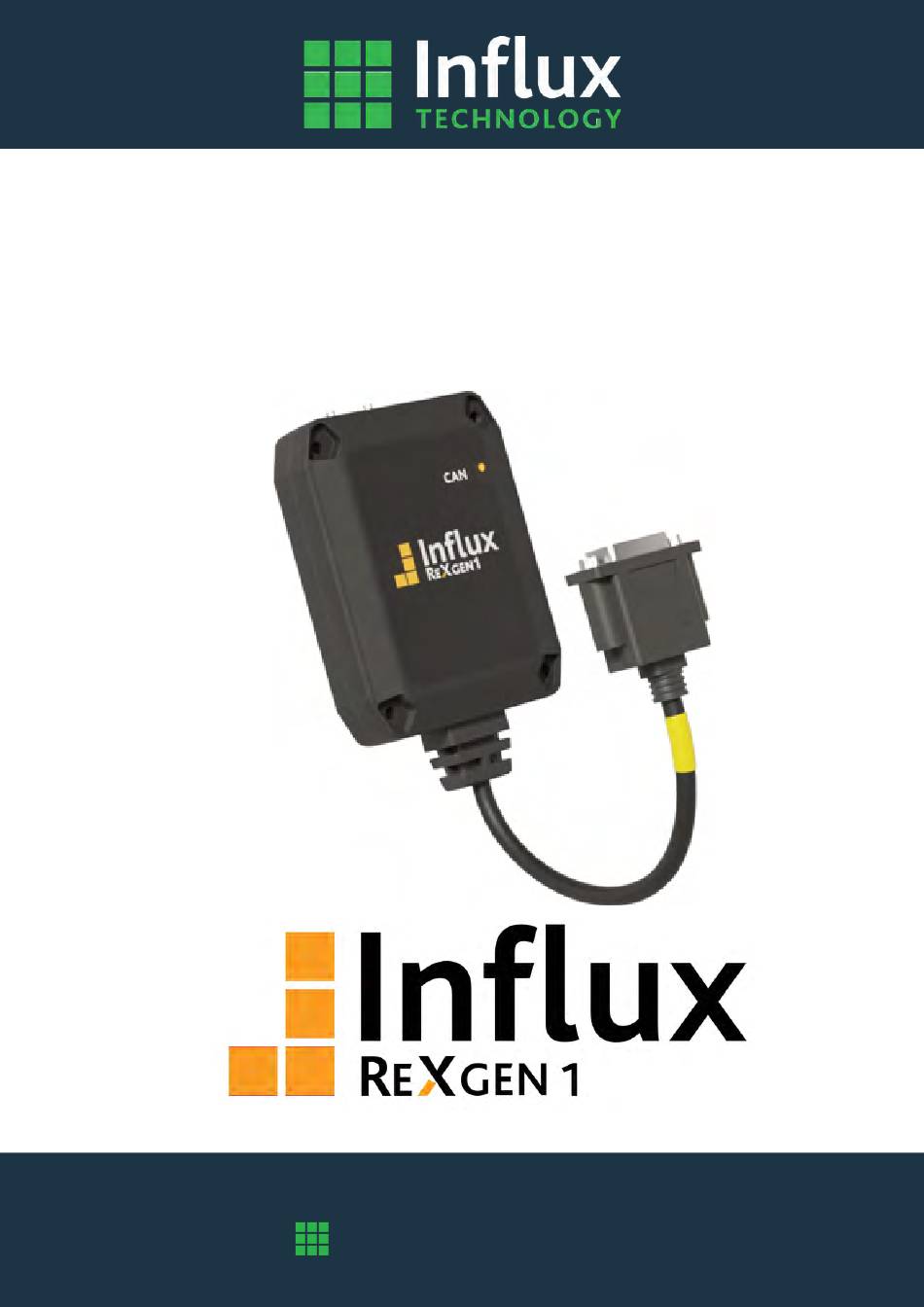

- Page 1 User Guide ReXgen1 - Manual www.influxtechnology.com...
-
Page 2: About This Manual
This document provides a brief idea of the usage, safety precautions, installation procedures and operation of the Influx ReXgen1. This document is intended for professional engineers and academic researchers, allowing them to understand the concept of operating the device and integrate this knowledge into systems with components of other manufacturers. -
Page 3: Safety Instructions
ReXgen 1: Product Manual SAFETY INSTRUCTIONS Ensure that the device is installed, connected, and commissioned by a qualified professional following all ▪ safety norms. Disconnect the device completely before handling it and disconnect any independently supplied output load ▪ circuits. Do not connect the housing to the Ground externally. -
Page 4: Table Of Contents
CONNECTING THE DEVICE ..........................12 3.1.1 POWER ..............................12 3.1.2 CAN................................12 3.1.3 USB ................................12 SOFTWARE INSTALLATION ..........................13 DRIVER INSTALLATION ............................ 15 ReXgen1 as a J2534 tool ........................... 17 3.5 FIRMWARE UPDATE.............................. 17 ANNEXURES ..............................18 CAN OVERVIEW ............................... 18... -
Page 5: Overview Of The Device
ReXgen 1: Product Manual OVERVIEW OF THE DEVICE This chapter overviews the ReXgen1 device and explains its operating procedures, functions, and intended use in detail. Along with the free, user-friendly configuration software, the standalone ReXgen1 pass-thru device and logger comes with the following advantages: •... - Page 6 ReXgen 1: Product Manual • Free powerful graphic interface application tool ReXdesk provided. • Micro USB 2.0 PC interface. • CAN error logging. • An extreme level of compactness – pocket size. Available Models Model eMMC Storage INF2109 8 GB...
-
Page 7: General Information
ReXgen 1: Product Manual 1.1 GENERAL INFORMATION 1.1.1 DEVICE ELEMENTS 1 – Micro USB connector. 3 – Mounting Holes. 2 –CAN LED. 4 – Channel Connector. 1.1.2 PRODUCT DRAWINGS... -
Page 8: Technical Specification
ReXgen 1: Product Manual 1.1.3 TECHNICAL SPECIFICATION Functions ReXgen 1 1 x CAN ISO 11898-1: Compliant with CAN (up to 1 Mbit/s) Conforms to CAN protocol version 2.0 – part A, B Max 20000 mps CAN Interfaces Meets the requirements of ISO 11898-2:2016 &... - Page 9 ReXgen 1: Product Manual 1.1.5 INTENDED USE The ReXgen1 is one of the most compact, pocket-sized pass-thru devices, which is also a data logger suitable for automotive and various industrial applications. The device is designed to: • Support J2534 (Pass-thru).
-
Page 10: Hardware & Functionality
2.1.2 Functioning as a PASS-THRU device using J2534: ReXgen1 is designed to function not just as a data logging device but also as a capable pass-thru device. The communication protocols supported by ReXgen1 as a J2534 tool are; ISO14229, ISO14230, CAN (ISO11898), ISO15765, and J1939. -
Page 11: Enclosure
• The CAN Bus and USB Isolators can be purchased separately. MOUNTING Always mount the device in a way that minimises vibration exposure and accounts for the IP rating of the device. ReXgen1 is supplied with four screws to assist you with the mounting process. 2.2.2 ENCLOSURE WARNING The device is not intended for use without the enclosure. -
Page 12: Cables
ReXgen 1: Product Manual 2.2.4 CABLES ReXgen1 comes with an integrated cable with a 9-pin D-Type connector. 2.2.4.1 CONNECTOR PIN DETAILS There is one 9-pin Standard D-Type connector. Connector PIN No DB9 (Male with Nuts) PIN Function PWR/CAN0/Digital/LIN Pin 1... -
Page 13: Getting Started
• 3.1.2 CAN ReXgen1 can be interfaced to the CAN bus from which data is to be logged using D-Sub 9. The CAN-high and CAN-low from the vehicle or machine terminals must match the CAN-high and CAN-low terminal of the ReXgen1. ReXgen1 should be configured with the same baud rate as the device to which it is interfaced. -
Page 14: Software Installation
ReXgen 1: Product Manual 3.2 SOFTWARE INSTALLATION Download the latest version of our ReXdesk Software from the Influx Technology website. Notes Before proceeding with the installation, please ensure that you have acquired administrative • privileges. Make sure you have installed the Microsoft Visual C++ Redistributable. - Page 15 ReXgen 1: Product Manual • Select the folder where you wish to install the Software; it is preferred to use the default location. • Select the preference for computer user installation to determine which computer users will have access to the ReXdesk Software. •...
-
Page 16: Driver Installation
• Click 'Close' to close the window. ReXdesk is now successfully installed on your system. 3.3 DRIVER INSTALLATION Notes • Before proceeding with the installation, please ensure that you have acquired administrative privileges. To install the ReXgen1 driver, locate the ReXgen1 Drivers installer from the start menu. Run the ReXgenInstaller.exe file. - Page 17 • Click 'Next' to continue with the installation process. • Once the installation is complete, this window will appear. • Click 'Finish' to close the window. The ReXgen1 driver is now successfully installed on your system.
-
Page 18: Rexgen1 As A J2534 Tool
ReXgen 1: Product Manual 3.4 ReXgen1 as a J2534 tool • Download the J2534 driver and execute the file. • Download the ReXgen J2534 driver installation guide • Click 'Install.' After successful installation, Windows Registry should contain J2534 ReXgen properties. -
Page 19: Annexures
ReXgen 1: Product Manual ANNEXURES This chapter contains technical data and certificates. 4.1 CAN OVERVIEW CAN stands for "Controller Area Network" and is defined in the ISO 11898 specification. The Controller Area Network (CAN, also known as CAN Bus) is a vehicle bus standard designed to allow electronic control units and devices to communicate in applications without a host computer. - Page 20 ReXgen 1: Product Manual Mbit/s, a maximum cable length of about 40 meters (130 ft.) can be used. This is because the arbitration scheme requires that the wavefront of the signal can propagate to the most remote node and back again before the bit is sampled. •...
- Page 21 Influx Technology Headquaters Office Suite 22, Building 03 Millbrook Proving Ground, Station Lane Millbrook Bedford MK45 2JQ Telephone: +44 (0) 1525 842504 Sales: sales@influxtechnology.com Influx Big Data Solutions Pvt Ltd 3358E, 13th Main Rd, HAL 2nd Stage, Doopanahalli, Indiranagar, Bengaluru, 560008...
