Installation Instructions

Step 1: Locate the Vehicle's DVD-ROM Navigation System.
(Vehicle disassembly may or may not be required depending on the vehicle)
Step 2: Disconnect the Black 20 Pin Connector from the back of the Vehicle's Navigation System.
Step 3: Connect the female end of the Supplied Vehicle Specific Harness HA20 into the Factory Harness you
disconnected.
Step 4: Connect the male end of the Supplied Vehicle Specific Harness HA20 into the back of the Vehicle's
Navigation System (where you disconnected the factory plug).
Step 5: Connect both 10 pin connectors on the Interface harness and the Vehicle Specific Harness HA20
together.
Step 6: Connect the supplied 4 Pin Loop to plug number 2 on the Vehicle Specific Harness HA20.

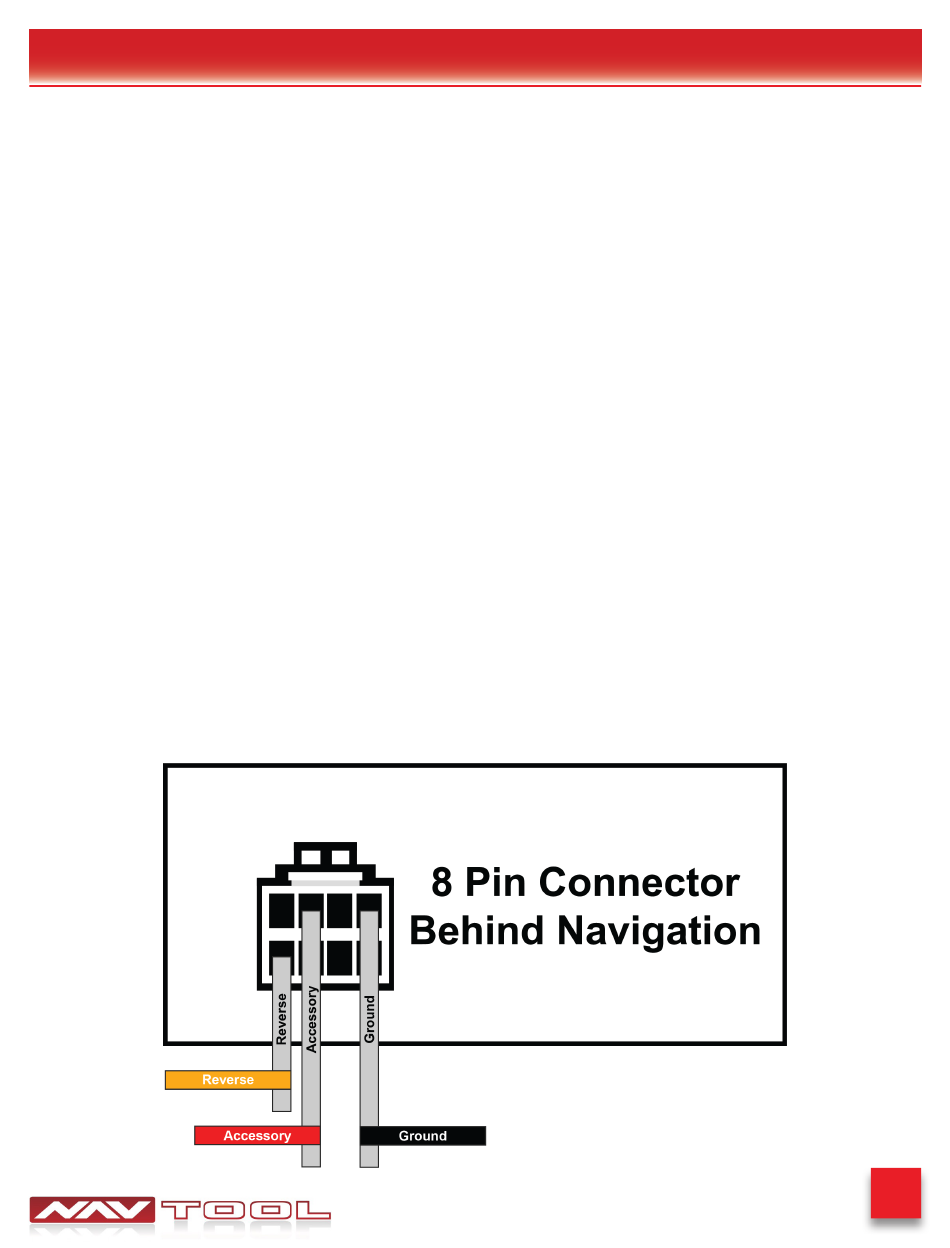

Step 7: Cut off the Red (+12 Volts ACC) and Black (Ground) wires off of the 6-pin plug on the interface
harness, and connect directly to the 8-pin factory harness. (See Image Shown Below)
Step 8: Connect the Orange wire (+12 Volt Reverse Input) to the factory reverse wire in the 8-pin harness
(See Image Shown Below)
Step 9: Connect one wire of the push button to +12 Volt ACC power in the vehicle and the other wire to the
white manual activation wire on the interface harness. (Not required for installations with reverse camera only)
Step 10: Connect your aftermarket cameras/video inputs to Rear Camera Input/Video Input 1 and Front
Camera Input/Video Input 2 on the interface harness.
Step 11: Make sure both dip switches on the interface are facing UP in the OFF Position. Plug the interface
harness into the interface.
