- Page 1 PRODUCT MANUAL Thank you for your purchase. Visit www.shopjourney.com for many more ways to live life to the fullest.
-
Page 2: Table Of Contents
CONTENTS 1. In 1. Instructions................3 Read befor 2. Precautions for Safe Use..........4-11 If ther or if y 3. Structure and Performance.........12-13 pleas in the 4. Specifications..............14 impor 5. Installation, Folding and Troubleshooting....15-16 and c under 6. Use and Operation............17-21 7. Glitch Diagnosis...............21 8. -
Page 3: Instructions
1. Instructions Read and follow all instructions, warnings and notes in this manual before attempting to operate your Journey Air for the first time. If there is any information in this manual that you do not understand, or if you require additional assistance for assembly or operation, please contact your authorized local provider. -
Page 4: Precautions For Safe Use
You must be on high alert to ensure safety when driving any mobility unit. WARNING! Please read the following warning carefully to avoid damage or personal injury caused by improper operation. Journey Air users should take appropriate safety measures and obey local pedestrian traffic rules. The company is not responsible for personal injury and/or product damage caused by improper operation. - Page 5 2. PRECAUTIONS FOR SAFE USE WARNING! We strongly recommend that you do not smoke in the personal electric vehicle. If you decide to smoke in the chair, be careful with ashes, keeping them away from the personal electric vehicle seat. Be sure your cigarette is completely extinguished before discarding it.
- Page 6 2. PRECAUTIONS FOR SAFE USE WARNING! It is possible that the personal electric vehicle could stop suddenly W n ⅰ n h ⅰ D u n n , h w h at any time during operation. If you sense or see anything unusual or irregular h w h in its performance, immediately cease operation.
- Page 7 2. PRECAUTIONS FOR SAFE USE n ⅰ n A ⅰ ⅰ n ATTENTION! Always check electrical components for corrosion. Check all k w n h n brakes for any looseness, wear or damage. Check wiring harnesses and terminal posts for breakage. If necessary, please contact your service provider. contact your service provider.
- Page 8 2. PRECAUTIONS FOR SAFE USE WARNING! Keep the personal electric vehicle moving when climbing. If you h ⅰ m v ⅰ n h n ⅰ m ⅰ n h w h WARN N G K need to stop, restart slowly and speed up carefully. WARNING! Please drive down a slope at the minimum speed.
- Page 9 2. PRECAUTIONS FOR SAFE USE W ARN N G E v n f u w h WARNING! Even if your personal electric vehicle can cross high obstacles, we h ⅰ h ⅰ n 2 m m mm n recommend that you do not try to cross a height exceeding 1 inch. Such an ⅰ...
- Page 10 2. PRECAUTIONS FOR SAFE USE ATTENTION! Avoid exposing the personal electric vehicle to prolonged excessively hot or cold environments. Excessive heat or cold may damage cushioned and non-cushioned parts of the chair, as well as the battery and battery components. ATTENTION! Do not pull or drag the personal electric vehicle behind any vehicle.
- Page 11 2. PRECAUTIONS FOR SAFE USE WARNING! Radio wave sources such as radio and television stations, amateur radio transmission, two-way radios and mobile or cell phones can affect your personal electric vehicle control. Th f w n W ARN N G k i n h i : m v m n...
-
Page 12: Structure And Performance

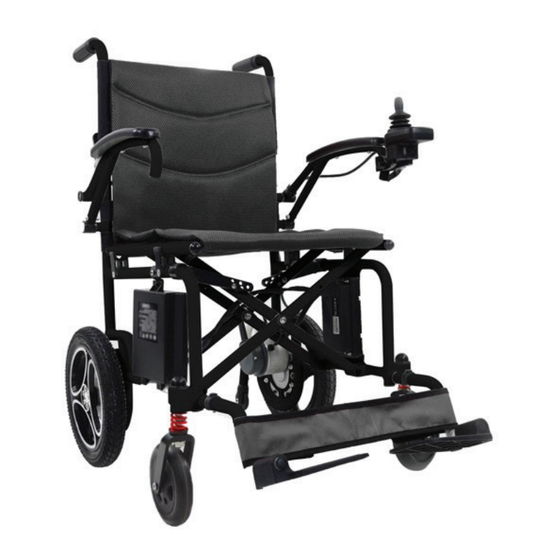

3. STRUCTURE AND PERFORMANCE 3.STRUCTURE AND PERFORMANCE 3.1 Structure of the Journey Air The main parts of this personal electric vehicle include the frame, two front wheels, two drive wheels, controller, motor with mechanism, armrests, push handles, backrest, seat base, footrest, battery case and charger. - Page 13 24Volts lithium battery JOYSTICK C O NN E C T O R S F O R L E FT M O T O R LEFT BRAKE CONTROLLER LEFT MOTOR 3.3 Product Software Version Software Version of Journey Air 08643 is V1.0.
-
Page 14: Specifications
4. SPECIFICATIONS 4.Specifications � The main specification includes dimension and weight Ove r a ll D i men si on s 36.22 x 22 x 35in Sea t H e i g h t 18 in Sea t W i d t h 16.53 in Sea t Dep t h 15.74 in... -
Page 15: Installation, Folding And Troubleshooting
5. INSTALLATION, FOLDING AND TROUBLESHOOTING 5.Installation, Folding and Troubleshooting 3 Troub 5.3.1 Wh 5.1 Installation electric v 5.1.1 Remove personal electric vehicle from packing box and set it and mov on the ground. Push the chair frame apart to the left and right, and manual m press the two tubes on both sides of the seat base down into 5.3.2 To... - Page 16 5. INSTALLATION, FOLDING AND TROUBLESHOOTING 3 Troubleshooting Tips 5.3.1 When the brake lever has been moved upward and the personal electric vehicle is in electric mode, it cannot be pushed by hand. To push and move the personal electric vehicle, move the lever downward to manual mode (Fig.
-
Page 17: Use And Operation
6. USE AND OPERATION On/Off Button Speed Light 6. Use and Operation Battery Gague Horn Button 6.1 Use Speed Down Button 6.1.1 Controller: This is the key component Speed Up Button Joystick of your personal electric vehicle. All the electronics for operating the chair are housed in this box (Fig. - Page 18 6. USE AND OPERATION 6 1 2 Battery Charging and Use If you will fully charge your new battery prior to its initial use, this first charge will bring the battery up to about 90% of its peak performance level. Operate the personal electric vehicle at that level, checking the battery indicator light periodically, and when a re-charge is indicated, give the battery another full charge (for 6-8 hours) and operate the personal electric...
- Page 19 6. USE AND OPERATION 6.1.4 Battery Removal Press and hold the button and at the same time pull the battery box up to remove it (Fig.17). Fig.17 6.1.5 There are two methods for charging the battery: Method 1: Connect the charger to the charging port on the controller. Method 2: Remove the battery from the personal electric vehicle and charge it directly (Fig.
- Page 20 6. USE AND OPERATION 6 2 Operation 6 2 1 Preparations before operation ● Do not turn on the power switch when you’re just using the personal electric vehicle to sit on, not to ride. Do not turn the power switch off as you’re in the process of getting off the chair.
-
Page 21: Glitch Diagnosis
6. USE AND OPERATION 7. GLITCH DIAGNOSIS 6 2 3 Operation Please note these precautions before operating personal electric vehicle: WARNING! Do not use your personal electric vehicle when it is in manual mode UNLESS you have someone to assist you;... -
Page 22: Safety Devices And Accident Treatment
8. SAFETY DEVICES AND ACCIDENT TREATMENT 9. MAINTENANCE 9 1 3 8. Safety devices and accident response ● Avo 8.1 Overload protector: Refer to instruction manual 6.1.5 8.2 Safety belt: Refer to instruction manual 6.1.6 perso 8.3 Please release the joystick whenever there is a personal electric vehicle ●... -
Page 23: Maintenance
9. MAINTENANCE 9 1 3 General Guidelines ● Avoid abusing the controller, especially the joystick. Treat your personal electric vehicle well, and it will have a long life. ● Avoid prolonged exposure of your personal electric vehicle to extreme weather conditions, such as extreme heat, cold or a moist environment. ●... - Page 24 9. MAINTENANCE � 9.1.5 Daily Checks 9 1 5 Daily Checks � In order to keep your personal electric vehicle in good condition, you In order to keep the wheelchair in good condition, you should check � should check it out before each use. To maintain the proper weekly, use And t o maintain the weekly, monthly, semi-annual...
-
Page 25: Storage
Open the packing box and check to determine whether anything is missing or damaged. Packing List No . N am e Qu an ti t y Rema rk Journey Air 1 p c 08643 C h a rg e r 1 p c Model: 24V/2A QL-09005-B2402000F... -
Page 26: Warranty
Air or Journey Air Elite from one of Journey Health & Lifestyle’s authorized dealers, your first remedy for warranty claims is through the dealer from which the Journey Air or Journey Air Elite was purchased. This warranty gives you specific legal rights and you may also have other legal rights which may vary from place to place. - Page 27 The name and symbols of the signs Meaning No. Sign Fragile objects inside this package. Please handle with care. Keep the package upright during transporting and delivery Avoid exposing the package to rain or other precipitation. Do not stack more than two of these packages, one above the other.
- Page 28 If you have any questions, call us at our toll free number: 1-800-958-8324...
