Summary of Contents for AKSO Cor Tester

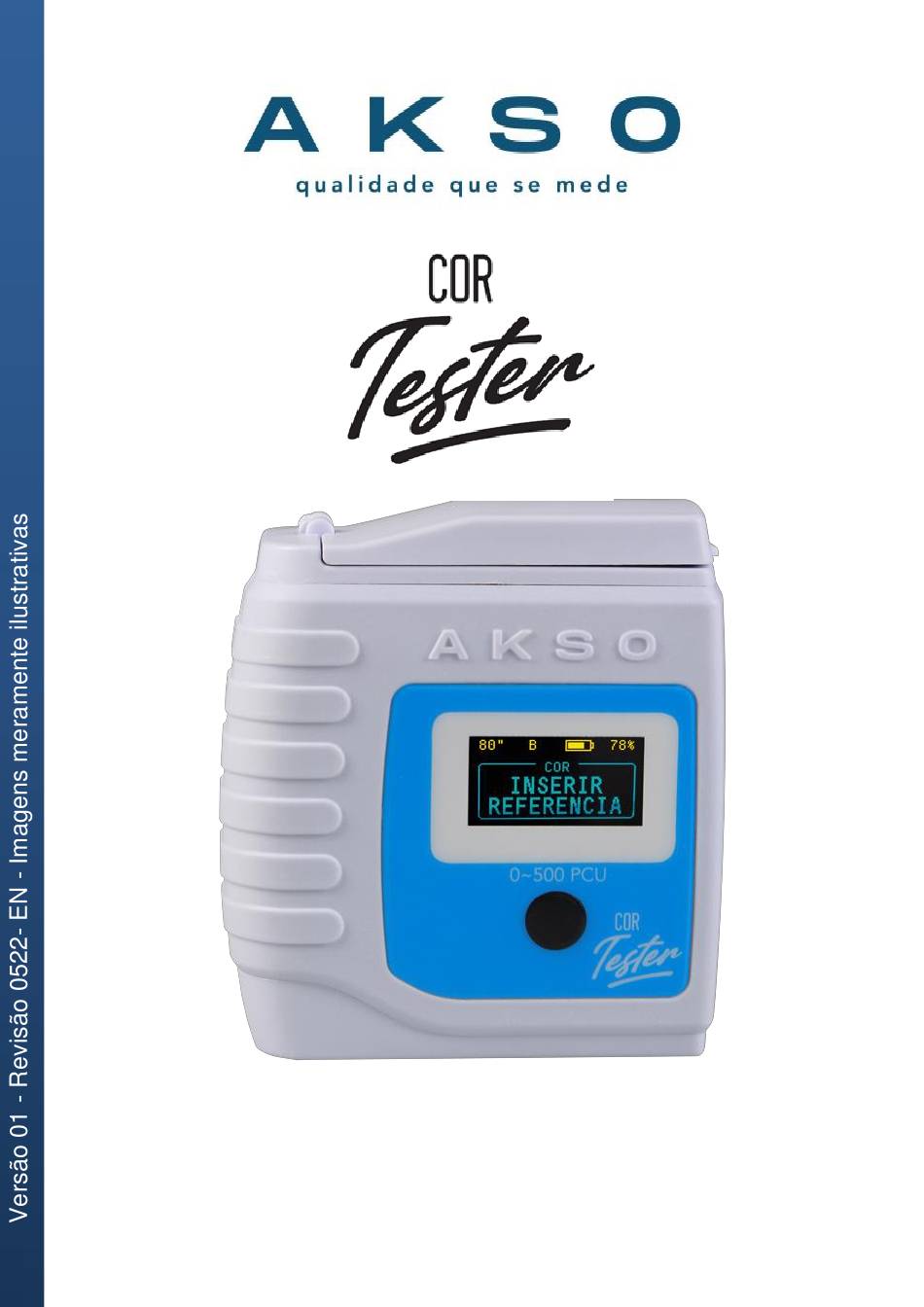

- Page 1 INSTRUCTION MANUAL...
- Page 2 1. SPECIFICATIONS - Measuring range: 0 to 500 PCU - Resolution: 1PCU - Accuracy: ± (10PCU + 5% reading) - Adjustment: 4 points (0, 100, 300, 500) - Sample temperature: 15 to 35 °C - Volume for analysis: 12mL - Light source: Light emitting diode (LED) - Wavelength: 455nm - Measuring cell: Glass cuvette - Auto power off: After 2 minutes...
- Page 3 2. ACCESSORIES Items that accompany the Cor Tester: - 2 glass cuvette with lid (Ø18.8 mm x 68mm) - 1 cleaning wipe - 1 plastic case - 1 instruction manual Before use, examine the instrument carefully. If you detect any abnormalities, contact AKSO.
- Page 4 4. OPERATING INSTRUCTIONS ON - OFF To turn on the Cor Tester, briefly press the Power- Measuring button. The display of the boot screen will appear on the display and the instrument will enter the measurement mode; To turn off the Cor Tester, hold down the Power- Measuring button unit the display displays the device turning off message.
- Page 5 9) With the instrument in the VERTICAL position, biefly press the button, the message Analyzing reference will appear on the display; 10) Wait until the display displays the Insert sample message; Reading – Apparent Color While Insert sample is on the display: 11) Open the measuring cover and remove the cuvette from the compartment;...
- Page 6 NOTE: To obtain true color measurement values it is necessary to filter the sample to be measured using a membrane filter before reading. 5. CONFIGURATION ACCESS AND NAVIGATION To access the instrument’s configurable parameters menu, with the instrument off, briefly press the Power- Measuring button during the start-screen display, hold the Power-Measuring button, the display will display CONFIGS and options;...
- Page 7 Factory Standard – restore the adjustment of the factory reading curve LANGUAGE – language selection PORTUGUESE, ENGLISH and SPANISH. 6. MAINTENANCE BATTTERY INSTALLATION/REPLACEMENT When the display displays Dead Battery, replace the battery as described below: 1) Switch off the instrument by holding down the Power- Measuring button unit the display is switched off;...
- Page 8 Make a new adjustment or DEVICE NOT Meter without adjustment ADJUSTED restore factory defaults Go to the product page on the Akso website and make sure your manual version is up to date. AKSO PRODUTOS ELETRÔNICOS LTDA www.akso.com.br • vendas@akso.com.br (51) 3406 1717...
