GENERATOR START CONTROL MODULE

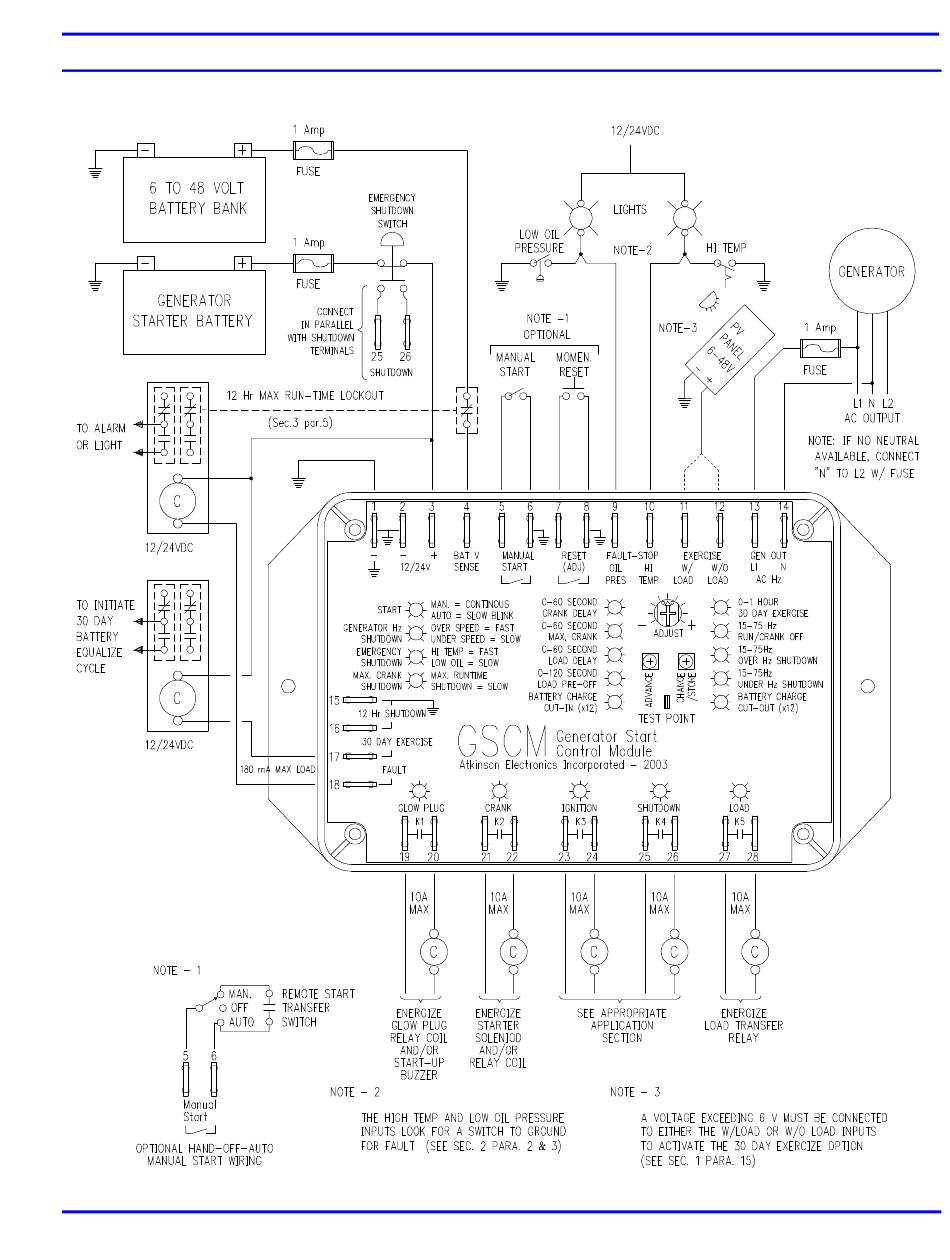

GSCM WIRING DIAGRAM AND CONTROLLER CONFIGURATION
TERMINALS 1-3
POWER INPUT
TERMINALS 4-16
INPUTS
TERMINALS 17-29
OUTPUTS
USE INSULATED TERMINALS
TO PREVENT SHORTS!
ATKINSON ELECTRONICS, INC.
Web Site: www.atkinsonelectronics.com
Distributed by:
GSCM
REV 8/06
