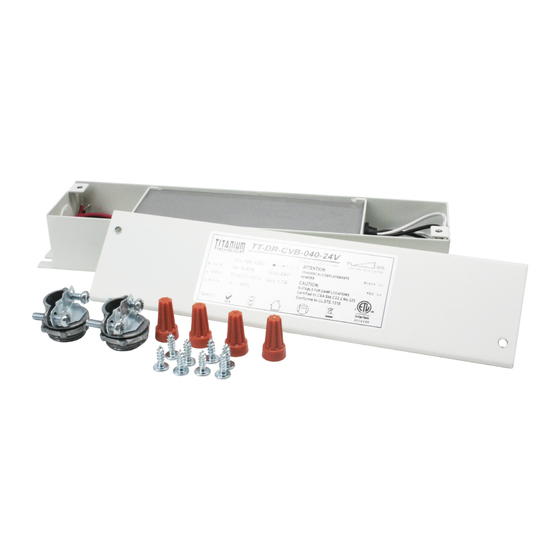

TT-DR-CVB-040
•
Transformers dimmable to the
primary 120vAC.
•
32 watts maximum load.
•
Triac dimmable from 5% to 100%
•
Class 2
288
TITANIUM TECHNOLOGY - 2022
Voltage in
120vAC
12vDC
Voltage out
Amperage in
0,47A
Amperage out
3300mA
Power
39,6w
222,3mm x 51,3mm x 37mm
Size
8 3/4" x 2" x 11/2"
Yes
Dimmable
5% ~100% Triac
IP
65
PRODUCT CODE
TT
TT
TT
24vDC
0,47A
1700mA
-
TYPE
-
GROUP
-
DR
CVB
-
-
-
DR
CVB
-
-
-
VOLTAGE
MODEL
-
OUT
040
-
12V
040
-
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titanium TT-DR-CVB-040
Summary of Contents for Titanium TT-DR-CVB-040
- Page 1 Voltage out • Class 2 Amperage in 0,47A 0,47A Amperage out 3300mA 1700mA Power 39,6w 222,3mm x 51,3mm x 37mm Size 8 3/4" x 2" x 11/2" Dimmable 5% ~100% Triac PRODUCT CODE VOLTAGE TYPE GROUP MODEL TITANIUM TECHNOLOGY - 2022...
- Page 2 Brancher le cordon d’alimentation du transformateur à la prise électrique. Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology.
- Page 3 TT-U-01 / TT-U-13 / TT-U-14 / TT-U-06 TT-U-M4 Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology. TITANIUM TECHNOLOGY - 2022...
- Page 4 LIMITED THREE (3) YEARS WARRANTY Titanium Technology offers this limited warranty for three (3) years from the date of purchase of this Titanium Technology product (hereafter : the «Product»). A list of all the Titanium Technology YEARS products covered by this limited warranty is given at the end of this document.
