TT-3528-L600
•

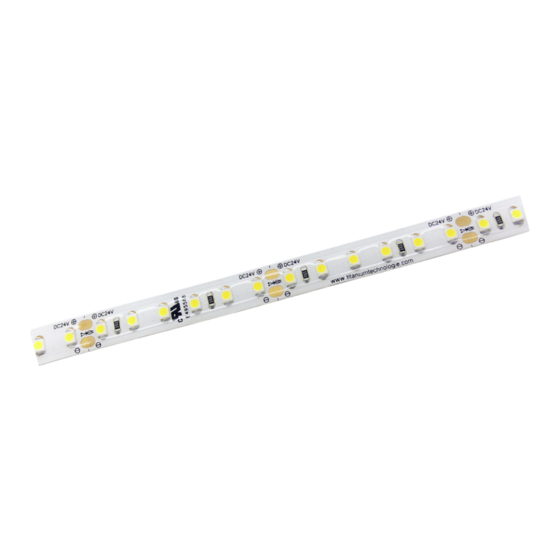

5m roll of SMD3528 LED
Strip in 5 meter roll.
138
TITANIUM TECHNOLOGY - 2022
Voltage
12vDC
LED/m
120 / m
9,84w / m
Power
3w / feet
49,2w / roll
0,82A / m
Amperage
0,25A / feet
4,1A / roll
27K - 383 lm / feet
30K - 391 lm / feet
Lumen
35K - 399 lm / feet
40K - 402 lm / feet
60K - 405 lm / feet
CRI (RA)
90
Angle
120°
IP20
Size
IP65
IP67
25 mm
Cut line
1"
Finish
White
Dimmable
Yes
27K - Warm white 2700K
30K - Warm white 3000K
35K - Neutral white 3500K
40K - Neutral white 4000K
60K -Cold white 6000K
LED Colour
R - Red
G - Green
B - Blue
A - Amber
RGB - Color mixing 3:1
Working temp.
-40°C ~ 70°C
IP
20, 65, 67
24vDC
0,41A / m
0,13A / feet
2,05A / roll
10mm x 2,2mm x 5000mm
3/8" x 1/8" x 1967/8"
10mm x 2,6mm x 5000mm
3/8" x 1/8" x 1967/8"
13mm x 5mm x 5000mm
1/2" x 3/16" x 1967/8"
50 mm
2"
Advertisement
Related Manuals for Titanium TT-3528-L600
Summary of Contents for Titanium TT-3528-L600

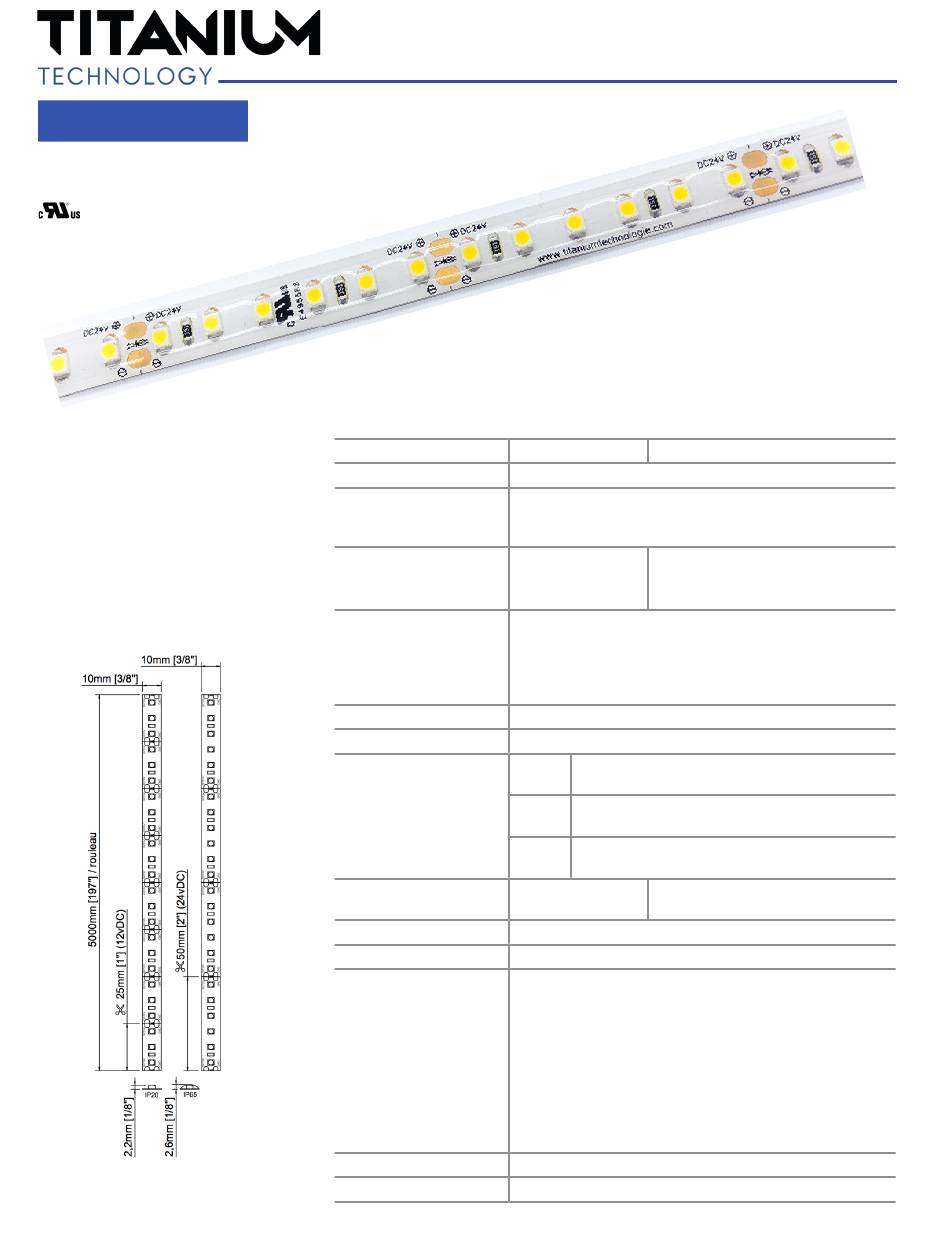

- Page 1 40K - Neutral white 4000K 60K -Cold white 6000K LED Colour R - Red G - Green B - Blue A - Amber RGB - Color mixing 3:1 Working temp. -40°C ~ 70°C 20, 65, 67 TITANIUM TECHNOLOGY - 2022...
- Page 2 40K - Neutral white 4000K 60K -Cold white 6000K LED Colour R - Red G - Green B - Blue A - Amber RGB - Color mixing 3:1 Working temp. -40°C ~ 70°C 20, 65, 67 TITANIUM TECHNOLOGY - 2022...
- Page 3 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Indoor Luminaire Photometric Data Description Information Luminaire Name: TT-3528-L600-2700k-2-Frosted-lens Luminaire Catelog: Test ID: Lamp Name: TT-3528-L600-2700k-2-Frosted-lens Lamp Catelog: 3528 Test Date: 2021/03/20 Manufacture: TITANIUM TECHNOLOGIE ShieldingAngle(°): Test Machine: GON-2000 Test Lab: Frequency(Hz): Luminaire CCT(K): Luminaire Size(W*L*H): 0.120*0.304*0.060...
- Page 4 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES 2D Light Intensity Distribution Curve P P l l a a n n e e [ [ 5 5 0 0 % % A A n n g g . . ] ] [ [ 1 1 0 0 % % A A n n g g . . ] ] C C 3 3 1 1 5 5 .
- Page 5 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Rectangle ISO Light Intensity Curve B Angles(°) 90.0 [Unit: cd] 80.0 [IMax]=39.414 [IMax*90%]=35.473 70.0 [IMax*80%]=31.531 [IMax*70%]=27.590 60.0 [IMax*60%]=23.648 50.0 [IMax*50%]=19.707 [IMax*40%]=15.766 40.0 [IMax*30%]=11.824 30.0 [IMax*20%]=7.883 [IMax*10%]=3.941 20.0 10.0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0...
- Page 6 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Plane ISO-Illuminance Curve [Unit: lx] [EMax]=4.365 [EMax*90%]=3.929 [EMax*80%]=3.492 [EMax*70%]=3.056 [EMax*60%]=2.619 [EMax*50%]=2.183 [EMax*40%]=1.746 [EMax*30%]=1.310 [EMax*20%]=0.873 [EMax*10%]=0.437 Curves: 90% Maximum Illuminance(lx): 39.29 Max. E Postion(d/h): H-0.0 V0.0 Mount Height(m): VOLNIC GON-2000 分布光度计,伏达光电技术有限公司 地址:杭州市益乐路223#银江科技园1幢3楼,邮编:310012 电话：(+86)571-88858219,88910474,www.volnic.cn...
- Page 7 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Space ISO Illuminance Curve h(m) [Unit: lx] [EMax*90%]=35.163 [EMax*80%]=31.256 [EMax*70%]=27.349 [EMax*60%]=23.442 [EMax*50%]=19.535 [EMax*40%]=15.628 [EMax*30%]=11.721 [EMax*20%]=7.814 [EMax*10%]=3.907 d(m) Curves:90% Maximum Light Intensity(cd): 39.07 VOLNIC GON-2000 分布光度计,伏达光电技术有限公司 地址:杭州市益乐路223#银江科技园1幢3楼,邮编:310012 电话：(+86)571-88858219,88910474,www.volnic.cn...
- Page 8 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Illuminance-Distance Curve 38.94 1.952 25.16 9.73 3.904 6.29 4.33 5.856 2.80 Height(m) Center E(lx) Average E(lx) Diameter(m) Beam Angle:88.6 VOLNIC GON-2000 分布光度计,伏达光电技术有限公司 地址:杭州市益乐路223#银江科技园1幢3楼,邮编:310012 电话：(+86)571-88858219,88910474,www.volnic.cn...
- Page 9 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Indoor Luminance Limiting Curve Glare Grade Table Quality Using Illuminace 1.15 2000 1000 <=300 2000 1000 <=300 1.85 2000 1000 <=300 2000 1000 <=300 2.55 2000 1000 <=300 Luminance Table Gama(deg) Luminance Limiting Curve...
- Page 10 IES Indoor Report Photometric Filename:TT-3528-L600-2700K-2-Frosted LENS.IES Indoor Budgetary Estimate Table Lamp Number Budgetary Estimate Table Lamp Flux 75.3lm Average E 100lx Loss Factor 0.8/0.8 Work Plane 0.0m Parameters Group1 Group2 4 5 6 7 8 9 60 80 400 600...
- Page 11 Brancher le cordon d’alimentation du transformateur à la prise électrique. Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology.
- Page 12 TT-U-01 / TT-U-13 / TT-U-14 / TT-U-06 TT-U-M4 Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology. TITANIUM TECHNOLOGY - 2022...
- Page 13 LIMITED THREE (3) YEARS WARRANTY Titanium Technology offers this limited warranty for three (3) years from the date of purchase of this Titanium Technology product (hereafter : the «Product»). A list of all the Titanium Technology YEARS products covered by this limited warranty is given at the end of this document.
