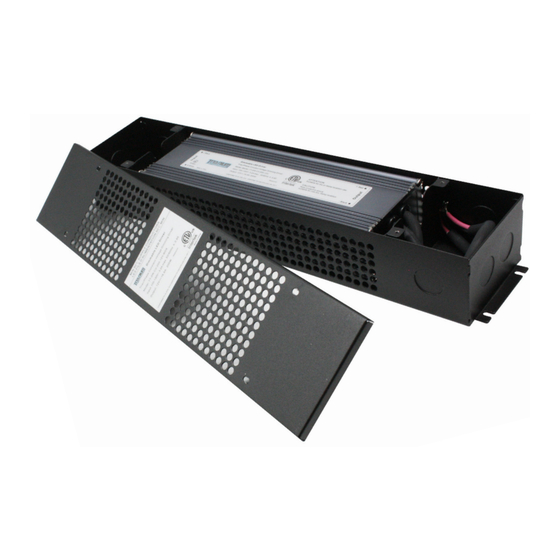

TT-DR-CV-200-BOX
•
Transformers dimmable to the
primary 120vAC.
•
160 watts maximum load.
•
Minimum load of 1 watts.
•
Triac dimmable from 5% to 100%
282
TITANIUM TECHNOLOGY - 2022
Voltage in
120vAC
12vDC
Voltage out
Amperage in
3,2A
Amperage out
16,6A
Power
200w
Minimum Load
1w
405mm x 85mm x 63mm
Size
16" x 3 3/8" x 21/2"
Yes - Foward phase, Magnetic low volage
Dimmable
5% ~100% Triac
IP
66
PRODUCT CODE
TT
TT
TT
24vDC
3,2A
8,3A
-
TYPE
-
GROUP
-
MODEL
DR
CV
200
-
-
-
DR
CV
200
-
-
-
VOLTAGE
-
-
BOX
OUT
-
12V
-
BOX
-
-
BOX
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titanium TT-DR-CV-200-BOX
Summary of Contents for Titanium TT-DR-CV-200-BOX
- Page 1 Amperage out 16,6A 8,3A Power 200w Minimum Load 405mm x 85mm x 63mm Size 16" x 3 3/8" x 21/2" Yes - Foward phase, Magnetic low volage Dimmable 5% ~100% Triac PRODUCT CODE VOLTAGE TYPE GROUP MODEL TITANIUM TECHNOLOGY - 2022...
- Page 2 Brancher le cordon d’alimentation du transformateur à la prise électrique. Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology.
- Page 3 TT-U-01 / TT-U-13 / TT-U-14 / TT-U-06 TT-U-M4 Ce document peut être modifié à tout moment et sans préavis de la part de Titanium Technologie. / This document can be modified at any time and without notice from Titanium Technology. TITANIUM TECHNOLOGY - 2022...
- Page 4 LIMITED THREE (3) YEARS WARRANTY Titanium Technology offers this limited warranty for three (3) years from the date of purchase of this Titanium Technology product (hereafter : the «Product»). A list of all the Titanium Technology YEARS products covered by this limited warranty is given at the end of this document.
