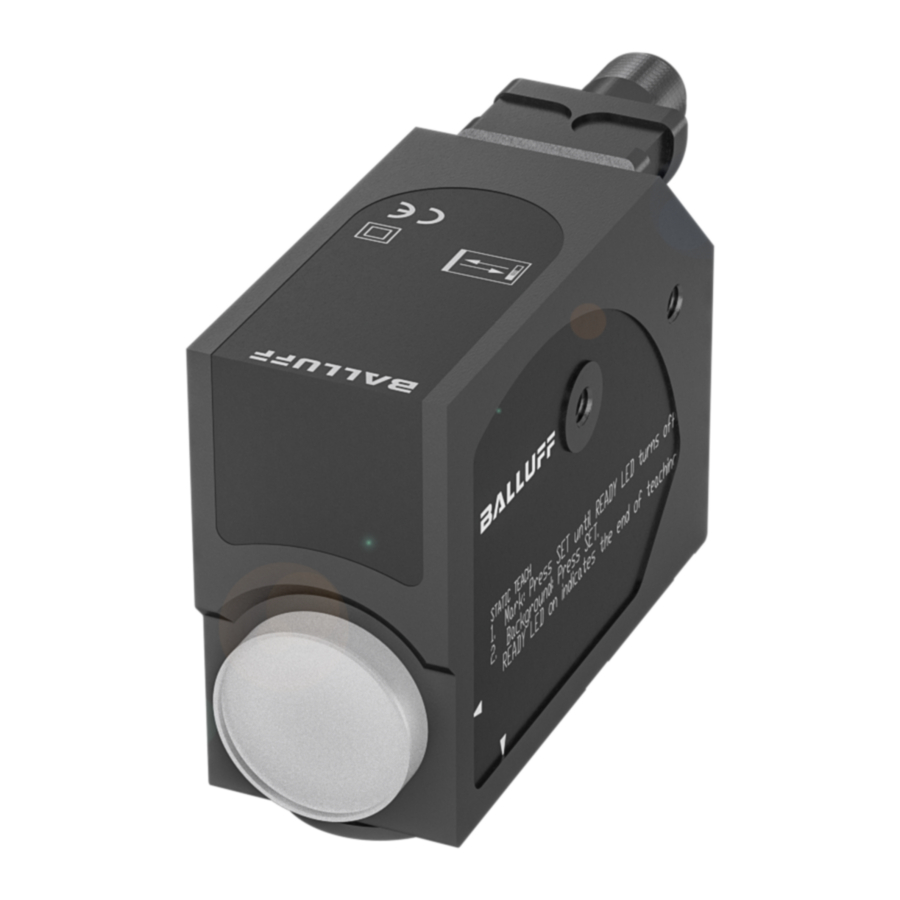

Balluff BKT 67M-003/004-U-S92 - Photoelectric Sensor Manual

Safety Notes

caution
These photoelectric sensors may not be used in applications where personal safety depends on proper function of the devices (not safety designed per EU machine guideline). Read these operating instructions carefully before putting the device into service.


The CE Marking confirms that our products conform to the EC Directives 2004/108/EEC (EMC) and the EMC Law.
In our EMC Laboratory, which is accredited by the DATech for Testing of Electromagnetic Compatibility, proof has been documented that these Balluff products meet the EMC requirements of the harmonized standard EN 60947-5-2.

Installation

The sensor can be mounted using the through-holes (φ 3.5 mm) or the M5 tapped holes (max. depth 6 mm).


Excessively long screws may damage the sensor.
To change the reading direction (lateral or frontal), exchange the lens with the cover cap.

The sensor can be mounted using the through-holes
If the material is very shiny (i.e. plastic or metal plate) it is advisable to tilt the reading head 5° to 20° in relation to the material that has to be read and to the direction of its movement.

The connector block can be locked
The connector block can be locked in 5 various positions.

Connections

 Wiring diagram, pin configuration
Fig. 1: Wiring diagram, pin configuration

Dimensions
Fig. 2: Dimensions

Indicators and keys

Indicators and keys - Overview

  1. Yellow LED OUT
    Output function indicator LED on: Output active
  2. Green LED READY
    Power indicator
    LED on: Sensor ready
    LED blinks: Output overload
  3. Orange LED DELAY
    Time delay indicator
    LED on: Time delay is enabled
    LED off: Time delay is disabled.
  4. Orange LED KEYLOCK
    Indicates key status
    LED on: Keys enabled and operable
    LED off: Keys locked
    PNP or NPN setting result indication
    LED blinks 1x: PNP output is set.
    LED blinks 2x: NPN output is set.
  5. Segment display (Bargraph)
    Displays switching threshold level
  6. + key
    Raises switching threshold incrementally.
  7. SET key
    Used for acquiring the mark and background.
  8. key
    Reduces switching threshold incrementally.

Operational and Error indication

Green LED Function/Error
Off Data are being read
On Settings correct, sensor is ready
Fast blinking Output short circuit or output current exceeded
Slow blinking The settings or the acquisition of data are incorrect, the sensor is not operative. Causes:
  • The contrast between the mark and the background is insufficient
  • The acuisition of the new mark or of the new background is incorrect or not stored.

Enabling the keys

The keys are disabled after the sensor is turned on. This protects the settings. To enable the keys:

  1. Hold down the SET key for 5 s until the orange KEYLOCK LED turns on.

warning
Note:
The keys are automatically disabled after 2 minutes of inactivity (no keys pressed during that time).

Setting reading mode (Teach in)

During the setup procedure the sensor adjusts automaticaly the optimum combination of red, green or blue emission, dark/light function and switching threshold:

  • The light emission is set to red, green or blue to maximize the contrast between the mark and the background reading.
  • The dark or light function is selected on the basis of the reading of a darker or lighter mark with respect to the background.
  • The switching threshold is set halfway between the acquired mark and background values.
  1. Place the mark under the light spot and don't move themark for a few seconds while reading is taking place.
  2. Press the SET key until the green LED turns off. Thesensor acquires the mark alternating the red, green and blue emission until the most effective emission combination is achieved.
  3. Place the background under the light spot and don'tmove the mark for a few seconds until the emission color is stable.
  4. Press the SET key. The green LED blinks on briefly. Thesensor acquires the backgroundalternating the red, green and blue emission.
  5. The green LED continuously on indicates the mark andbackground acquisition was correct and the sensor is ready.
    If the green LED blinks slowly, the contrast difference is insufficient. To restore the previous setting, press the SET key again.

Turning time delay (DELAY) on/off

Standard configuration (factory setting): Output delay off.
To enable slower sensor interfaces to detect shorter pulses as well, turn on the output delay. This increases the minimum length of the output signal to 20 ms.

Output without and with delay
Fig. 3: Output without and with delay

Turning on the output delay

  1. Press + and contemporaneously for 2 sec. until the Delay LED turns on.

Turning off the output delay

  1. Press + and contemporaneously for 2 sec. until the Delay LED turns off.

Selecting light-on or dark-on

The sensor automatically selects light-on or dark-on switching during setup.

Light-on:
For dark background and light marking.

Dark-on:
For light background and dark marking.

Setting the switching threshold manually

The switching threshold can be adjusted to the application. The blinking pattern on the segment display indicates by how much the switching threshold deviates from the threshold output value.

  1. Press the + or – key:
    The first 3 LEDs from the left turn on.
  2. To increase the switching threshold, press the + keymultiple times. The segment display moves to the right.
    To reduce the threshold value, press the – key multiple times. The segment display moves to the left.
  3. To store the current threshold value, press the SETkey or wait 30 s.

Setting PNP or NPN output

Standard configuration (factory setting): PNP

  1. To change, hold down the + and – keys together for10 s:
    If the time delay is enabled, the DELAY LED will go out after 2 s and come on again after 10 s.
    This completes the change.
    If the time delay is disabled, the DELAY LED will come on after 2 s and go off again after 10 s. This completes the change.
  2. Do not release the keys until the DELAY LED hasresponded as described under step 1.
    The KEYLOCK LED indicates the setting:
    1x flashing: PNP output active
    2x flashing: NPN output active

Setting Remote control (REMOTE SET)

With remote control enabled, the SET key is disabled. The
SET function is triggered by a signal applied to Pin 5 (Fig. 3).

SET functions using the Remote cable:

  • "Press SET key" function: Connect cable to 10...30 V DC.
  • "Do not press SET key" function: Connect cable to 0 V DC or leave unconnected.

Acquiring mark and background via REMOTE
Fig. 4: Acquiring mark and background via REMOTE

Accessory lenses

Order code Lenses Focal length Light spot
BAM0120 BKT M-PK-1 18 mm 2 x 7 mm
BAM0121 BKT M-PK-2 9 mm
(high resolution)
1,5 x 4 mm
BAM0122 BKT M-PK-3 28 mm 2 x 9 mm
BAM00P2 BKT M-PK-4 9 mm 1,5 x 5 mm
(Standard lens included in delivery)
BAM00P3 BKT M-PK-5 40 mm 2,5 x 11 mm

Detection diagrams

Detection diagrams - View 1

Detection diagrams - View 2

Detection diagrams - View 3

Detection diagrams - View 4

Fig. 5: Relative sensitivity as a function of object distance

Technical Data

Optical

Range with standard lens 9 mm
Depth of field with standard lens with standard lens ±3 mm
Recommended range with standard lens 9 ±3 mm
Light spot dimension < 1.5 x 5 mm
Light type (autom. selected) blue (465 nm)
green (520 nm)
red (630 nm)

Electrical

Operating voltage V S 10...30 V DC
Ripple < 2 V
No-load current I O < 85 mA
Effective operating current I e 100 mA
Effective operating voltage V e 24 V DC
Voltage drop V d at I e < 2 V
Output selectable PNP/NPN,
N.O./N.C.
Short circuit protected yes
Reverse polarity protected yes
Light-on/dark-on switching automatic
Data retention EEPROM

Analog Output

Voltage proportional to the signal received

on white 90% reflective

1...3 V ±10% max. 5.5 V

3 V

Output resistance R a 2.2 kΩ
Impedance 2.2 kΩ

Mechanical

Connector M12, 5-pin
Housing material Al
Active surface material Glass
Degree of contamination 3
Weight 170 g

Indicators

Output function indicator yellow LED OUT
Power indicator green LED READY
Delay indicator orange LED
Keylock indicator orange LED
Switching threshold display Bargraph

Time Data

Switching frequency f at V e 20 kHz
Turn-on delay t on < 25 μs
Turn-off delay t off < 25 μs
Output delay selectable 20 ms
Power-on delay t v < 300 ms

Ambient

Ambient temperature T a -10 to +55°C
Storage temperature -20 to +70°C
Enclosure rating per IEC 60529 IP 67
Protection class II
Ambient light rejection per EN 60947-5-2
