HARDWARE INSTALLATION
US version
•

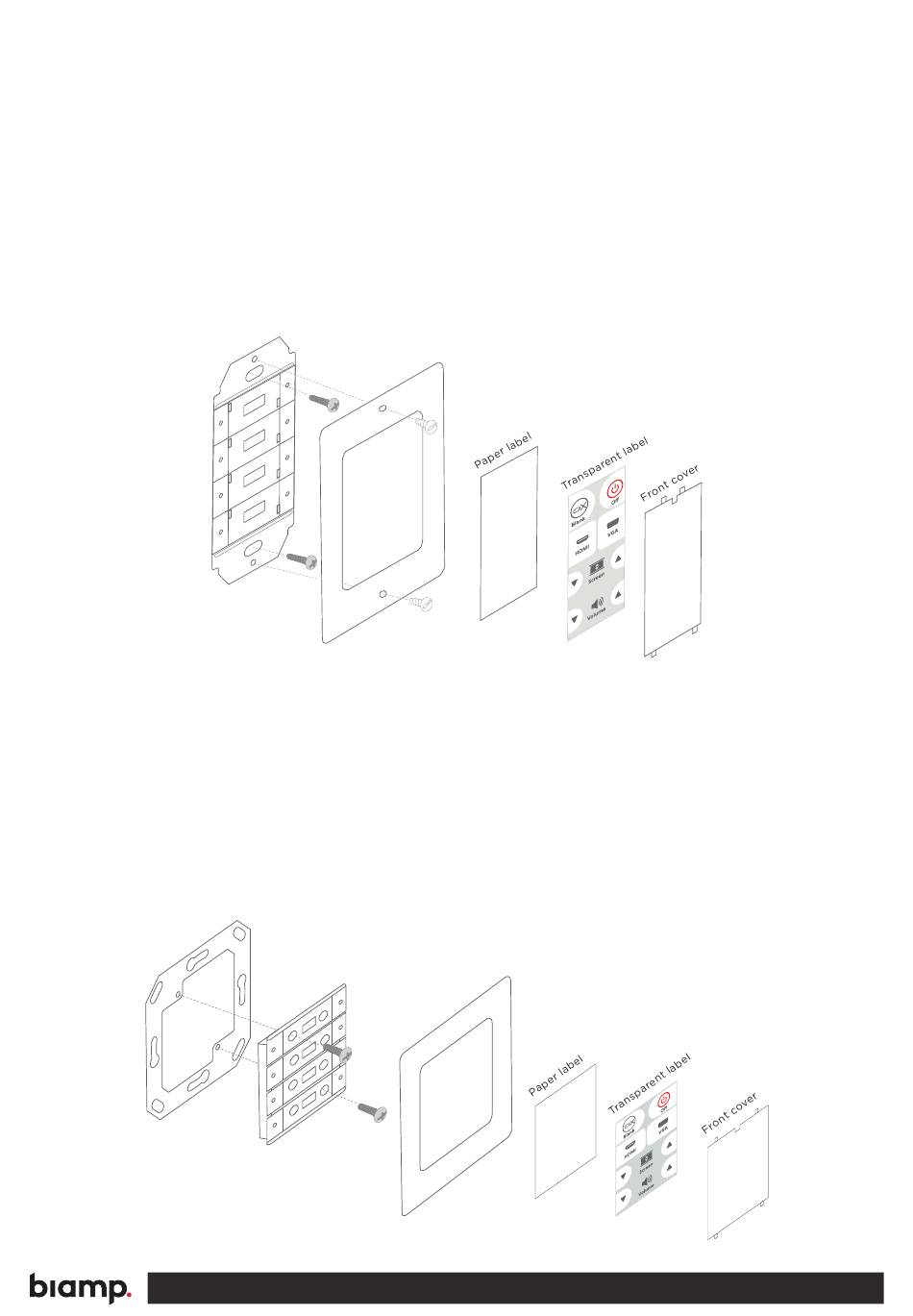

Insert screws matching the back box into the two mounting holes. Secure the control system
to the back box or bracket without overtightening the screws.
•
Mount the frame on the control system with the supplied screws.
•
Insert a flathead screwdriver gently and pry out the front cover.
Remove the front cover and the paper label behind it.
•
Remount the paper label, insert a printed transparent label showing the button functions,
and mount the front cover. Note that the front cover mounts in only one direction.
EU version
•
Insert a flathead screwdriver gently and pry out the front cover.
Remove the front cover and the paper label behind it.
•
Insert the control system in a frame matching the back box used.
•
Insert screws matching the back box or bracket into the two holes. Secure the control system
to the back box or bracket without overtightening the screws.
•
Remount the paper label, insert a printed transparent label showing the button functions, and
mount the front cover. Note that the front cover mounts in only one direction.
