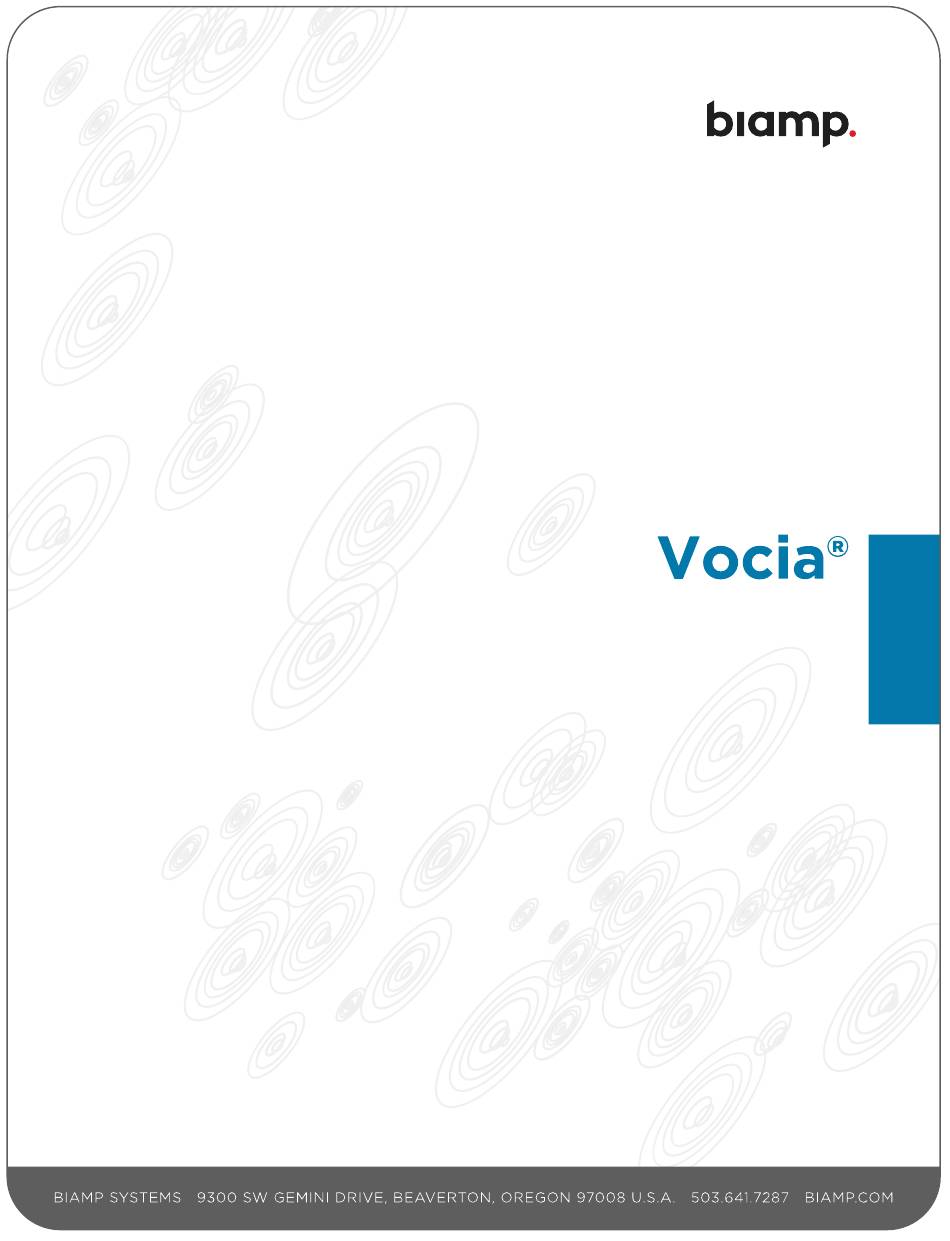

- Page 1 ANC-1 OPERATION MANUAL May 2019 585.0266.90C...
- Page 2 ANC-1 Product Description The ANC-1 allows automatic output level adjustments in response to changes in ambient noise levels. The ANC-1 is a networked device for use with the Vocia VA-8600. The Vocia software interface permits comprehensive adjustment of ANC parameters and utilizes IEEE compliant Power over Ethernet (PoE) technology.
- Page 3 ANC-1 Setup and Installation Setup and Use The Vocia software provides an intuitive interface for configuration and programming of the ANC-1. The information supplied by this manual relates to physical connections and assignment. For more details on software setup, please consult the Vocia Help File. Installation The ANC-1 can be mounted on a wall using screws through the case flanges (#6 or 6mm diameter X 4) or two screws in the keyholes on the rear (#8 or 4.5mm diameter, max 9mm diameter head).
- Page 4 ANC-1 Front Device ID The rotary ID switches give the unit a unique Device ID. The switches are in hexadecimal format. All units of the same device type must have a unique Device ID to function properly within a Vocia Paging World. The Factory Default Device ID is 01.
- Page 5 Ambient Noise Input Connections Two plug-in barrier-strip connectors on the ANC-1 connect the ambient sensing sources to the device. One or two microphones or line-level sources may be connected (gain adjusted accordingly in the Vocia software interface). Both connections may provide phantom power, switchable from software (default: off). Multiple microphones may be mixed before connecting to the ANC-1.
